ST60 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

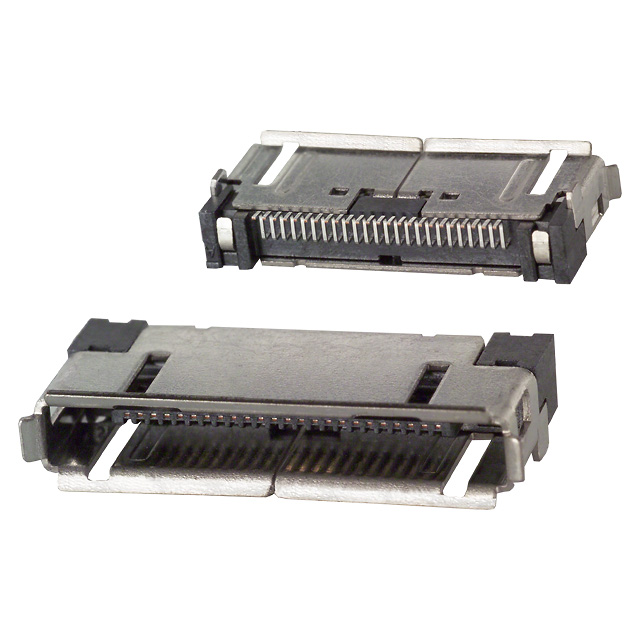

CONN RCPT 24POS SMD
| Part | Insulation Material | Contact Material | Applications | Contact Finish - Mating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Insulation Height | Insulation Height | Style | Contact Type | Features | Insulation Color | Current Rating (Amps) | Termination | Material Flammability Rating | Voltage Rating | Fastening Type | Number of Positions | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | Copper Alloy | General Purpose Telecommunications | Gold | Board Edge Right Angle Surface Mount | 80 °C | -30 ░C | Receptacle | 3 mm | 0.118 in | Board to Cable/Wire | Non-Gendered | Board Guide Shielded | Black | 0.5 A | Solder | UL94 V-0 | 100 VAC | Latch Holder | 24 | 0.5 mm | 0.02 in | All | 1 | ||||
 Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | Copper Alloy | General Purpose Telecommunications | Gold | Board Edge Right Angle Surface Mount | 80 °C | -30 ░C | Receptacle | 3 mm | 0.118 in | Board to Cable/Wire | Non-Gendered | Board Guide Shielded | Black | 0.5 A | Solder | UL94 V-0 | 100 VAC | Latch Holder | 24 | 0.5 mm | 0.02 in | All | 1 | ||||

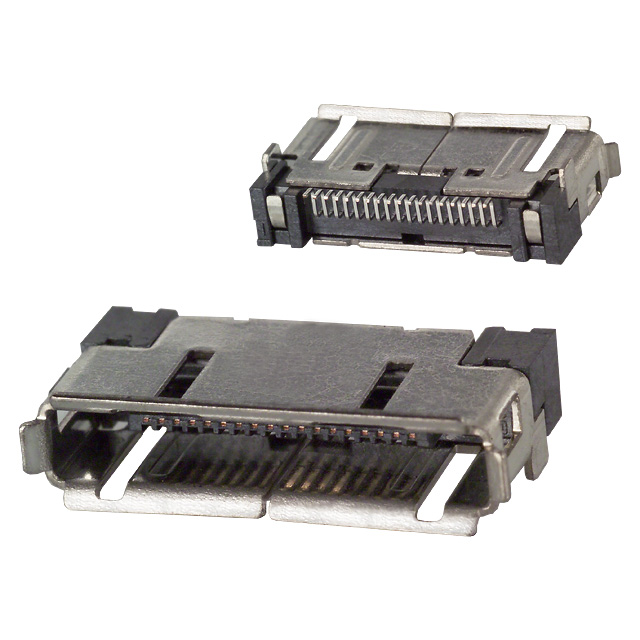

 Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | Copper Alloy | General Purpose Telecommunications | Gold | Board Edge Right Angle Surface Mount | 80 °C | -30 ░C | Receptacle | 3 mm | 0.118 in | Board to Cable/Wire | Non-Gendered | Board Guide Shielded | Black | 0.5 A | Solder | UL94 V-0 | 100 VAC | Latch Holder | 18 | 0.5 mm | 0.02 in | All | 1 | Flash | 0.76 Ám | 30 Áin | Gold |
Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | Copper Alloy | General Purpose Telecommunications | Gold | Board Edge Right Angle Surface Mount | 80 °C | -30 ░C | Receptacle | 3 mm | 0.118 in | Board to Cable/Wire | Non-Gendered | Board Guide Shielded | Black | 0.5 A | Solder | UL94 V-0 | 100 VAC | Latch Holder | 24 | 0.5 mm | 0.02 in | All | 1 | 0.76 Ám | 30 Áin | ||
Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | Copper Alloy | General Purpose Telecommunications | Gold | Board Edge Right Angle Surface Mount | 80 °C | -30 ░C | Receptacle | 3 mm | 0.118 in | Board to Cable/Wire | Non-Gendered | Board Guide Shielded | Black | 0.5 A | Solder | 100 VAC | Latch Holder | 24 | 0.5 mm | 0.02 in | All | 1 | Flash | 0.76 Ám | 30 Áin | Gold |
