ADG723 Series

Catalog

CMOS, LOW VOLTAGE, 4 Ω DUAL SPST SWITCH IN 3 MM × 2 MM LFCSP

Part	Multiplexer/Demultiplexer Circuit	-3db Bandwidth	Package / Case	Package / Case [custom]	Package / Case	Switch Circuit	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Charge Injection	Number of Circuits	Supplier Device Package	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	On-State Resistance (Max) [Max]	Crosstalk	Operating Temperature [Max]	Operating Temperature [Min]	Channel-to-Channel Matching (ΔRon)	Current - Leakage (IS(off)) (Max) [Max]	Mounting Type	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Current - Leakage (IS(off)) (Max)
Analog Devices ADG723BRMZ-REEL	1:1	200 MHz	8-MSOP 8-TSSOP	0.118 in	3 mm	SPST - NO/NC	7 pF	7 pF	2 pC	2	8-MSOP	1.8 V	5.5 V	4 Ohm	-97 dB	85 °C	-40 °C	300 mOhm	250 pA	Surface Mount	14 ns	6 ns

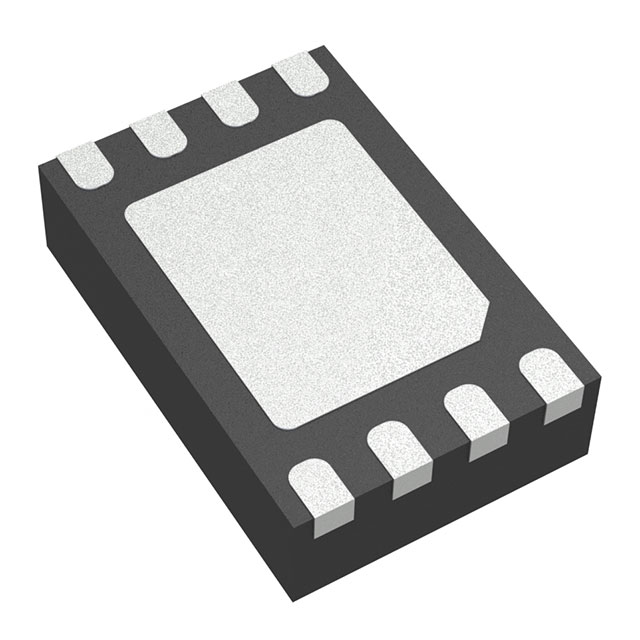

Analog Devices ADG723ACPZ-REEL	1:1	200 MHz	8-WFDFN Exposed Pad CSP			SPST - NO/NC	7 pF	7 pF	2 pC	2		1.8 V	5.5 V	4 Ohm	-97 dB	85 °C	-40 °C	300 mOhm		Surface Mount	14 ns	6 ns	10 pA
Analog Devices ADG723BRM-REEL7	1:1	200 MHz	8-MSOP 8-TSSOP	0.118 in	3 mm	SPST - NO/NC	7 pF	7 pF	2 pC	2	8-MSOP	1.8 V	5.5 V	4 Ohm	-97 dB	85 °C	-40 °C	300 mOhm	250 pA	Surface Mount	14 ns	6 ns
Analog Devices ADG723BRMZ-REEL7	1:1	200 MHz	8-MSOP 8-TSSOP	0.118 in	3 mm	SPST - NO/NC	7 pF	7 pF	2 pC	2	8-MSOP	1.8 V	5.5 V	4 Ohm	-97 dB	85 °C	-40 °C	300 mOhm	250 pA	Surface Mount	14 ns	6 ns
