1622FT Series

Catalog

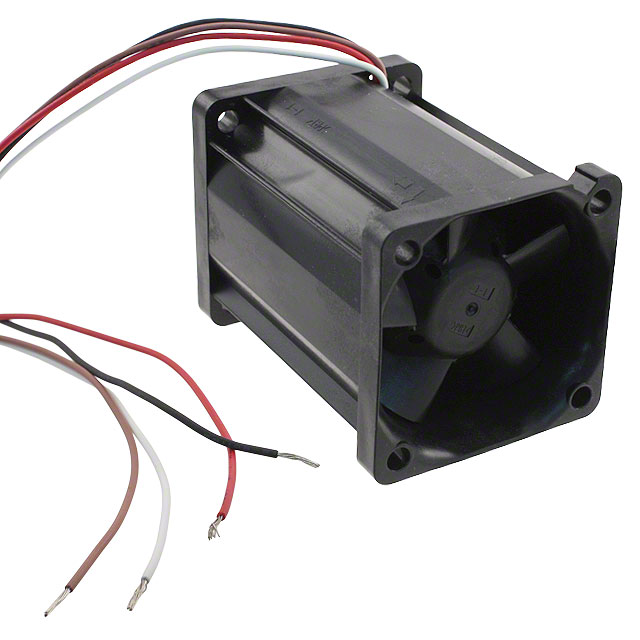

FAN AXIAL 40X56MM 12VDC WIRE

Part	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Air Flow	Air Flow	Lifetime @ Temp.	Material - Blade	Voltage - Rated	Power (Watts)	Fan Type	Approval Agency	Noise	Termination	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Bearing Type	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Static Pressure	Static Pressure	Weight	Weight
NMB TECHNOLOGIES 1622FT-04W-B86-E50	Plastic	10.2 VDC	13.2 VDC	1.05 A	0.84 mł/min	30 CFM	70000 Hrs	Plastic	12 VDC	12.6 W	Tubeaxial	CE UL VDE	60 dB(A)	4 Wire Leads	-10 °C	60 °C	23000 RPM	Ball	56 mm	40 mm	40 mm	PWM Control Speed Sensor (Tach)	885 Pa	3.54 in H2O	68.04 g	0.15 lb
NMB TECHNOLOGIES 1622FT-04W-B86-E00	Plastic	10.2 VDC	13.2 VDC	1.05 A	0.84 mł/min	30 CFM	70000 Hrs	Plastic	12 VDC	12.6 W	Tubeaxial	CE UL VDE	60 dB(A)	4 Wire Leads	-10 °C	60 °C	23000 RPM	Ball	56 mm	40 mm	40 mm	PWM Control Speed Sensor (Tach)	885 Pa	3.54 in H2O	68.04 g	0.15 lb
