102TL2 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE DPDT 7.5A 115V

Part	Actuator Material	Bushing Thread	Ingress Protection	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Termination Style	Actuator Type	Actuator Length [x]	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Features

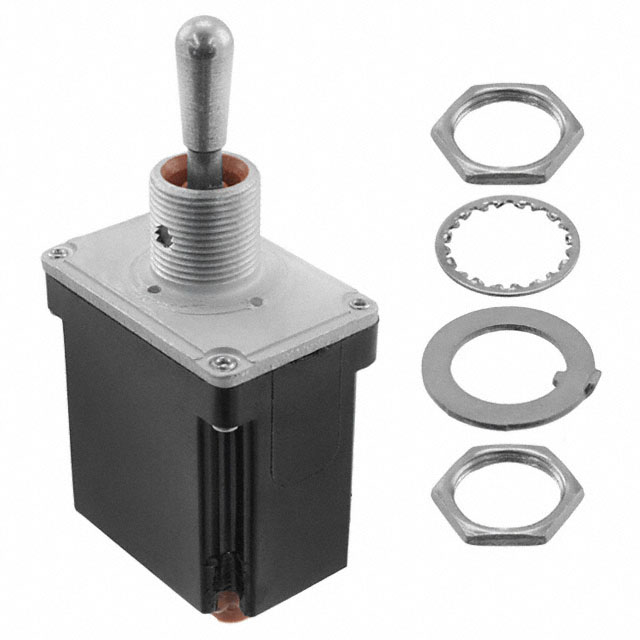

Honeywell Sensing and Productivity Solutions 102TL2-7	Nickel Plated	15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	30 V	IWTS	Standard Round	17.27 mm	Panel Mount	7.5 A	115 V	Mom-Off-Mom	12.4 mm	DPDT
Honeywell Sensing and Productivity Solutions 102TL2164-70	Nickel Plated	15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	28 V	IWTS	Flatted	16.51 mm	Panel Mount	7.5 A	125 V	Mom-On-Mom	12.4 mm	DPDT
Honeywell Sensing and Productivity Solutions 102TL2-70	Nickel Plated	15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	30 V	IWTS	Standard Round	17.27 mm	Panel Mount	7.5 A	115 V	Mom-On-Mom	12.4 mm	DPDT
Honeywell Sensing and Productivity Solutions 102TL2841-1	Nickel Plated	15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	28 V	IWTS	Flatted	16.51 mm	Panel Mount	100 mA	115 V	On-Off-On	12.4 mm	DPDT

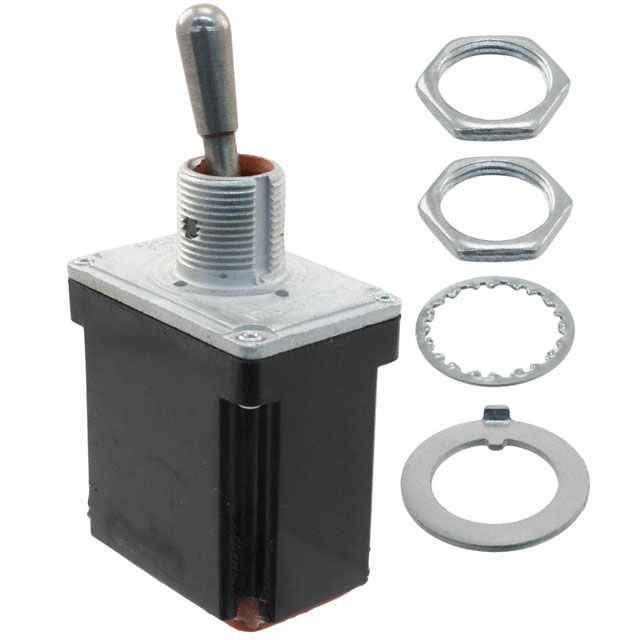

Honeywell Sensing and Productivity Solutions 102TL2-10	Nickel Plated	15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	30 V	IWTS	Standard Round	17.27 mm	Panel Mount	7.5 A	115 V	On-On-On	12.4 mm	SP3T	Jumper needed to achieve triple throw
Honeywell Sensing and Productivity Solutions 102TL2-51	Nickel Plated	15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	30 V	IWTS	Standard Round	17.27 mm	Panel Mount	7.5 A	115 V	On-Mom	12.4 mm	DPDT

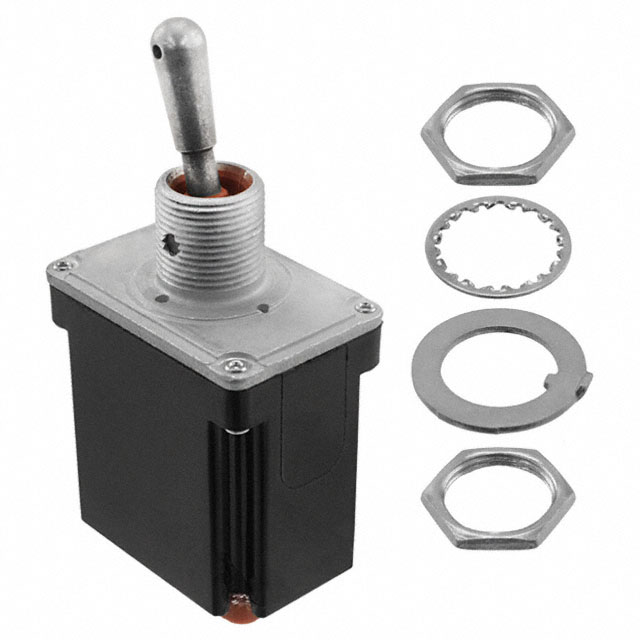

Honeywell Sensing and Productivity Solutions 102TL2218-3	Nickel Plated	15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	30 V	IWTS	Standard Round	17.27 mm	Panel Mount	7.5 A	115 V	On-On	12.4 mm	DPDT
Honeywell Sensing and Productivity Solutions 102TL2887-7E	Nickel Plated	15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	28 V	IWTS	Locking Lever	26.67 mm	Panel Mount	100 mA	115 V	Mom-Off-Mom	12.4 mm	DPDT

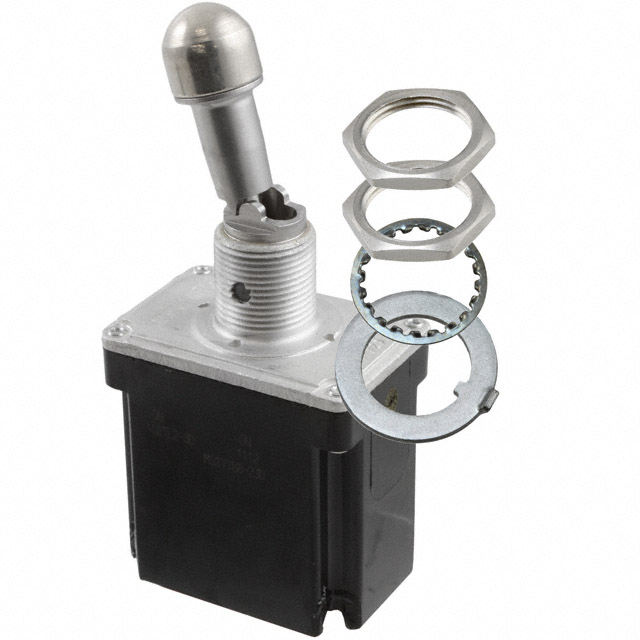

Honeywell Sensing and Productivity Solutions 102TL2-3D	Nickel Plated	15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	30 V	IWTS	Locking Lever	26.67 mm	Panel Mount	7.5 A	115 V	On-On	12.4 mm	DPDT
Honeywell Sensing and Productivity Solutions 102TL255-7		15/32-32	Environment Sealed	Non-Illuminated	-65 ░C	71 °C	28 V	IWTS	Flatted	16.5 mm	Panel Mount	15 A	125 V	Mom-Off-Mom	12.4 mm	DPDT
