HRMP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONNECTOR
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Dielectric Material | Body Material | Center Contact Material | Convert From (Adapter End) | Adapter Series | Center Contact Plating | Frequency - Max [Max] | Adapter Type | Convert To (Adapter End) | Conversion Type | Center Gender | Mounting Type | Style | Impedance | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | |||||||||||||||||||
Hirose Electric Co Ltd | |||||||||||||||||||

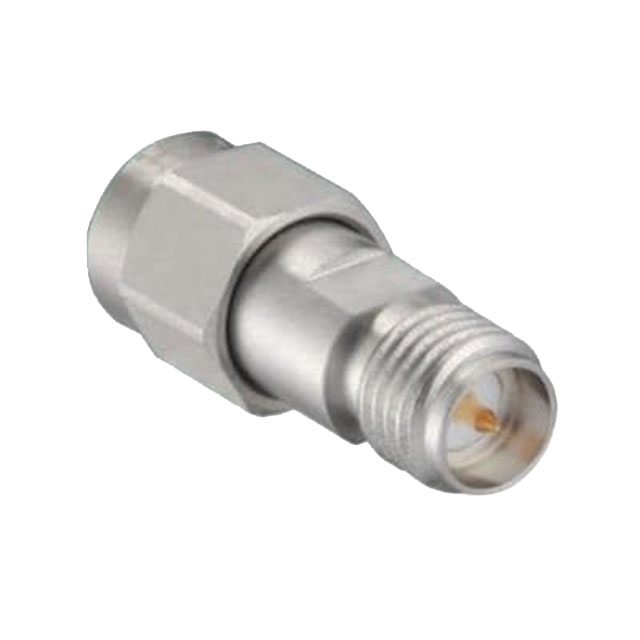

 Hirose Electric Co Ltd | Gold Passivated | 85 °C | -40 C | 1000 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper Brass | Male Pin SMA Plug | SMA to RP-SMA | Gold | 26.5 GHz | Plug to Jack | RP-SMA Jack Male Pin | Between Series | Male to Male | Free Hanging (In-Line) | Straight | 50 Ohms | |
 Hirose Electric Co Ltd | Gold Passivated | 85 °C | -40 C | 1000 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Brass | Male Pin SMA Plug | SMA to RP-SMA | Gold | 26.5 GHz | Plug to Plug | RP-SMA Plug Female Socket | Between Series | Free Hanging (In-Line) | Straight | 50 Ohms | ||

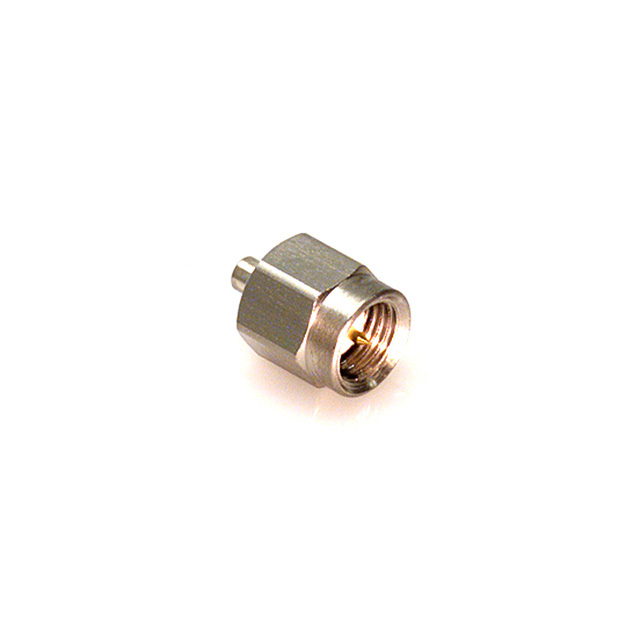

 Hirose Electric Co Ltd | 500 | Male Pin SMA Plug | SMA to S.FL | Gold | 2.5 GHz | Plug to Jack | S.FL Jack Male Pin | Between Series | Free Hanging (In-Line) | Straight | 50 Ohms | Snap-On Threaded | |||||||
Hirose Electric Co Ltd | |||||||||||||||||||

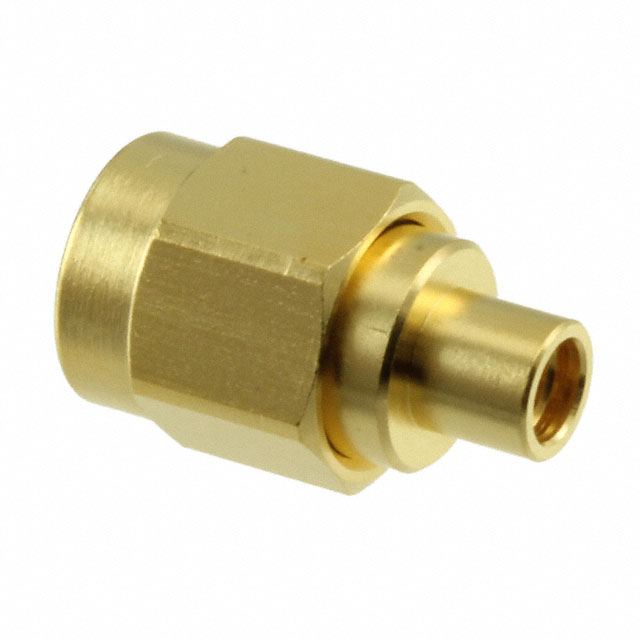

 Hirose Electric Co Ltd | Gold | 85 °C | -55 C | 500 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | Male Pin SMA Plug | SMA to MMCX | Gold | 6000 MHz | Plug to Jack | MMCX Jack Female Socket | Between Series | Free Hanging (In-Line) | Straight | 50 Ohms | Snap-On Threaded | |
Hirose Electric Co Ltd | 125 °C | -55 C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | SMP Plug Male Pin | SMA to SMP | Gold | 18 GHz | Plug to Plug | SMA Plug Male Pin | Between Series | Male to Male | Free Hanging (In-Line) | Straight | 50 Ohms | Snap-On Threaded | ||

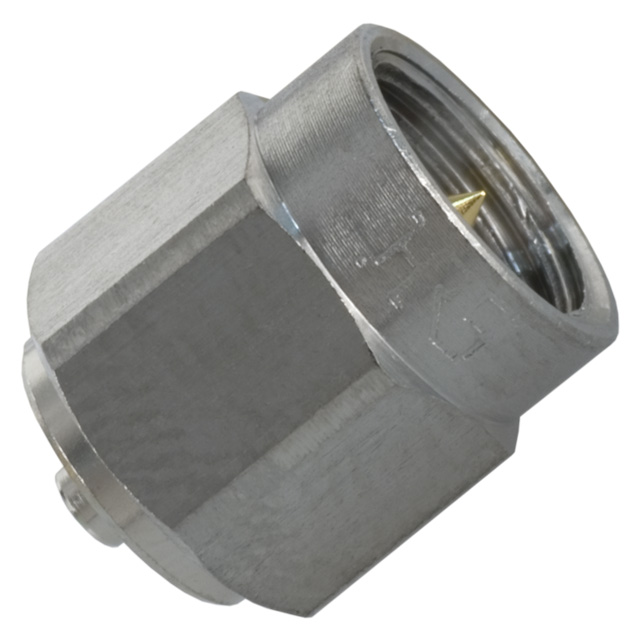

 Hirose Electric Co Ltd | Nickel; Passivated | 500 | Polytetrafluoroethylene (PTFE) | Stainless Steel | Brass | Female Socket SMA Jack | SMA to U.FL (UMCC) | Gold | 5 GHz | Plug to Jack | U.FL (UMCC) Jack Male Pin | Between Series | Male to Male | Free Hanging (In-Line) | Straight | 50 Ohms | Snap-On Threaded | ||
Hirose Electric Co Ltd | Nickel | 85 °C | -30 ░C | 250 | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | Female Socket POD1 Jack | SMA to POD1 | Gold | 3 GHz | Plug to Jack | SMA Plug Male Pin | Between Series | Free Hanging (In-Line) | Straight | 50 Ohms | Snap-On Threaded |
