TSM6502 Series

Catalog

MOSFETS 60V, 24A, -60V, -18A, COMPLEMENTARY N & P-CHANNEL POWER MOSFET

Part	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Configuration	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	Mounting Type	Package / Case	Drain to Source Voltage (Vdss)	Supplier Device Package	Power - Max [Max]	Input Capacitance (Ciss) (Max) @ Vds

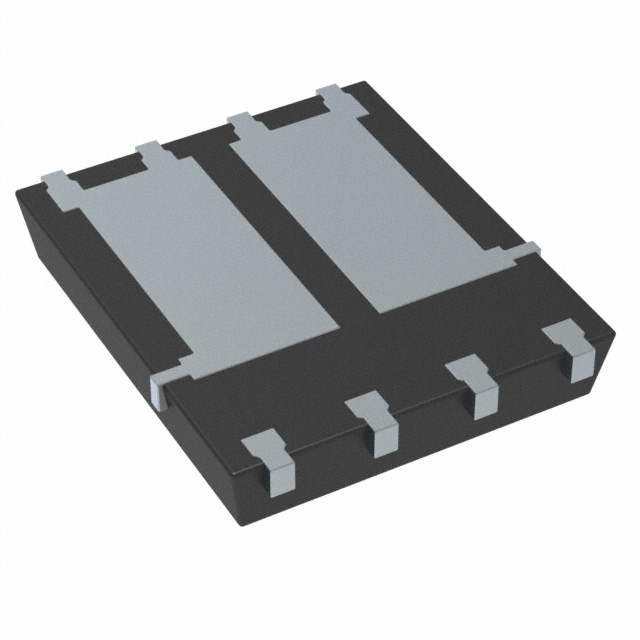

Taiwan Semiconductor Corporation TSM6502CR RLG	34 mOhm 68 mOhm	18 A 24 A	150 °C	-55 °C	MOSFET (Metal Oxide)	N and P-Channel	9.5 nC 10.3 nC	2.5 V	Surface Mount	8-PowerTDFN	60 V	8-PDFN (5x6)	40 W	930 pF 1159 pF
Taiwan Semiconductor Corporation TSM6502CR	34 mOhm 68 mOhm	18 A 24 A	150 °C	-55 °C	MOSFET (Metal Oxide)	N and P-Channel	9.5 nC 10.3 nC	2.5 V	Surface Mount	8-PowerTDFN	60 V	8-PDFN (5x6)	40 W	930 pF 1159 pF
