BM78 Series

Bluetooth Dual Mode Module

Catalog

Bluetooth Dual Mode Module

Part	Current - Transmitting	Firmware Version	Antenna Type	Current - Receiving	RF Family/Standard	Frequency	Protocol	Operating Temperature [Min]	Operating Temperature [Max]	Sensitivity	Power - Output	Package / Case	Serial Interfaces	Mounting Type	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size [custom]	Memory Size [custom]	Memory Size [custom]

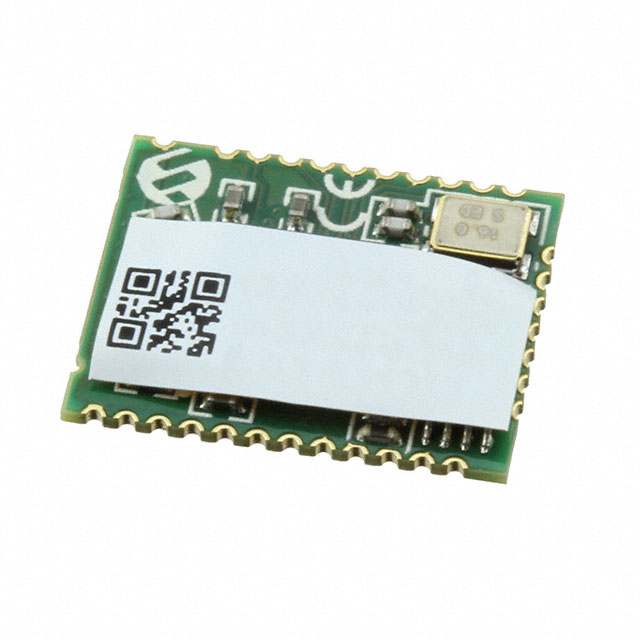

Microchip Technology BM78SPP05MC2-0002AA	43 mA	1.2	Antenna Not Included	37 mA	Bluetooth	2.4 GHz	Bluetooth v5.0 Dual Mode	-20 C	70 °C	-92 dBm	1.5 dBm	30-SMD Module	I2C UART	Surface Mount

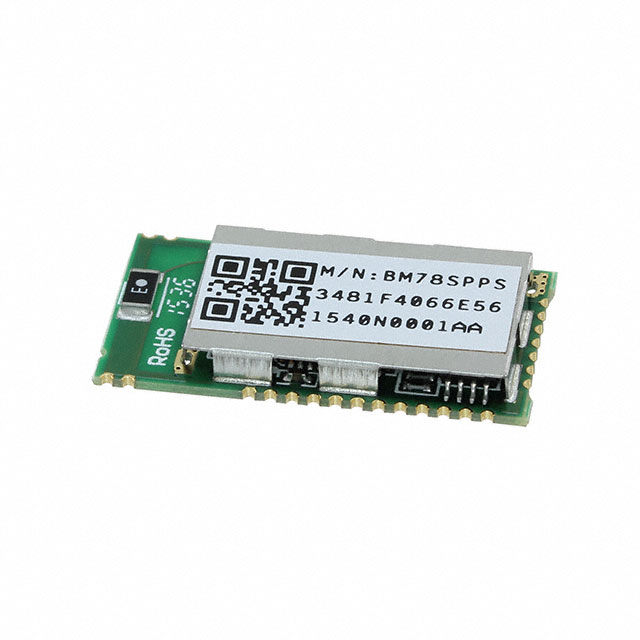

Microchip Technology BM78SPPS5NC2-0001AA	43 mA		Integrated Chip	37 mA	Bluetooth	2.4 GHz	Bluetooth v5.0 Dual Mode	-20 C	70 °C	-90 dBm	2 dBm	33-SMD Module	I2C UART	Surface Mount	115.2 kbps

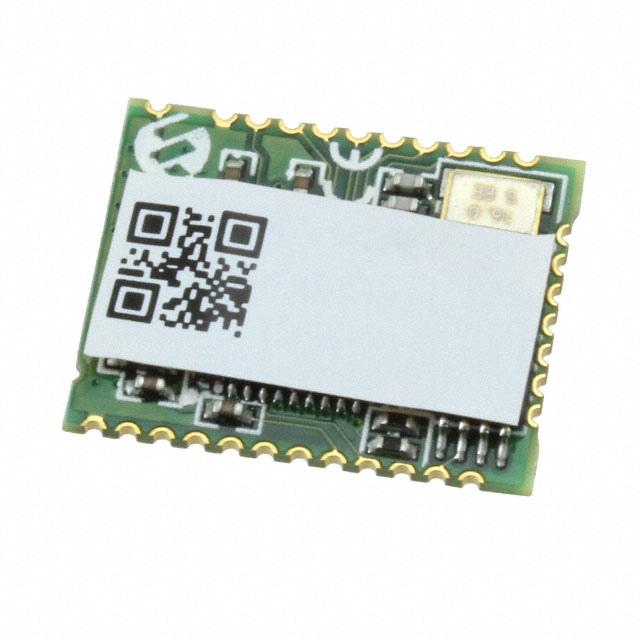

Microchip Technology BM78SPP05NC2-0002AA	43 mA		Antenna Not Included	37 mA	Bluetooth	2.4 GHz	Bluetooth v5.0 Dual Mode	-20 C	70 °C	-92 dBm	1.5 dBm	30-SMD Module	I2C UART	Surface Mount		4.2 V	3.3 V

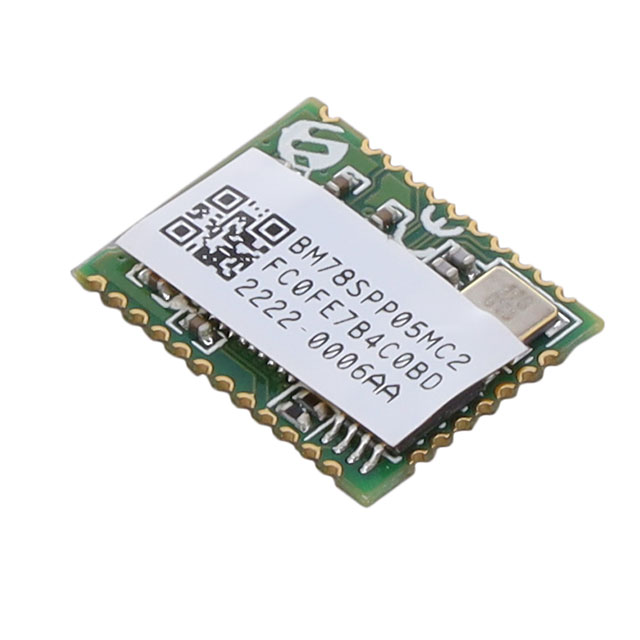

Microchip Technology BM78SPP05MC2-0006AA	43 mA		Antenna Not Included	37 mA	Bluetooth	2.4 GHz	Bluetooth v5.0 Dual Mode	-20 C	70 °C	-92 dBm	2 dBm	30-SMD Module	I2C UART	Surface Mount	115.2 kBaud	4.2 V	3.3 V	320 kB	28 kB	4 MB
Microchip Technology BM78SPPS5NC2-0002AA	43 mA		Integrated Chip	37 mA	Bluetooth	2.4 GHz	Bluetooth v5.0 Dual Mode	-20 C	70 °C	-92 dBm	1.5 dBm	Module	I2C UART	Surface Mount	1 Mbps	4.2 V	3.3 V

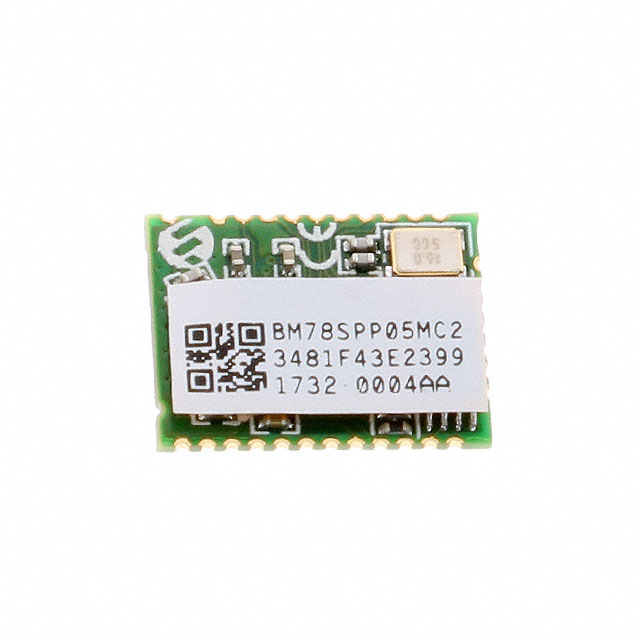

Microchip Technology BM78SPP05MC2-0004AA	43 mA	1.35	Antenna Not Included	37 mA	Bluetooth	2.4 GHz	Bluetooth v5.0 Dual Mode	-20 C	70 °C	-92 dBm	1.5 dBm	Module	I2C UART	Surface Mount		4.2 V	3.3 V

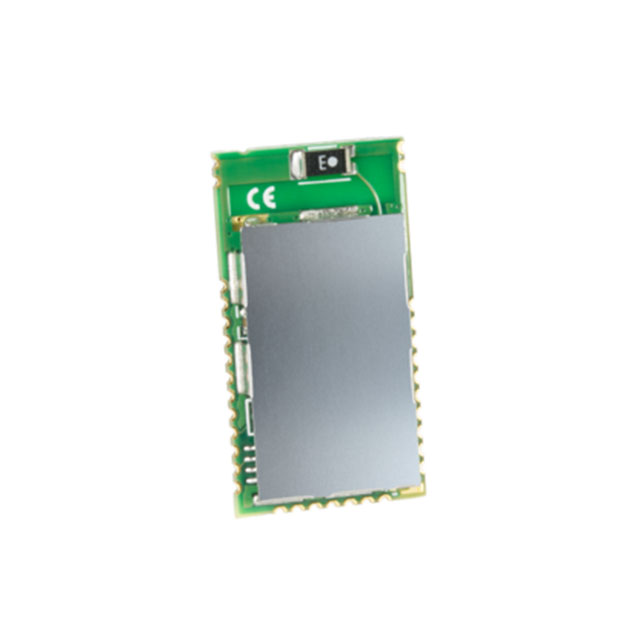

Microchip Technology BM78SPPS5MC2-0002AA	43 mA	1.2	Integrated Chip	37 mA	Bluetooth	2.4 GHz	Bluetooth v5.0 Dual Mode	-20 C	70 °C	-92 dBm	10 dBm	Module	I2C UART	Surface Mount				320 kB	28 kB	4 MB

Catalog

Bluetooth Dual Mode Module

Key Features

• * Bluetooth 5 Certified

• * Dual-Mode Bluetooth Classic and Bluetooth Low-Energy

• * Module certified for use in USA, Canada, Europe, Japan, Korea, Taiwan, China, and India

• * Mobile Application supported in Microchip Bluetooth Data (MBD)

• * On-board embedded Bluetooth Stack

• * Easy to use transparent mode for data transfer via UART

• * Easy to configure with Windows® GUI or direct by MCU

• * Multiple I/O pins for control and status

• * Secure AES128 encryption

• * GAP, SDP, SPP, GATT profiles

• * Firmware can be field upgradable via UART

• * Compact surface mount module: 22 x 12 x 2.4 mm

• * Castellated surface mount pads for easy and reliable host PCB mounting

Description

The BM78 is a fully-certified Bluetooth® dual-mode (BR/EDR/LE) module for designers who want to easily add dual mode Bluetooth wireless capability to their products. Delivering local connectivity for the Internet of Things (IoT), the BM78 bridges your product to Smart Phones and Tablets for convenient data transfer, control and access to cloud applications. This Bluetooth SIG certified module provides a complete wireless solution with Bluetooth stack on-board, integrated antenna, and worldwide radio certifications in a compact surface mount package, 22 x 12 x 2.4 mm. It supports GAP, SDP, SPP, and GATT profiles. Data is transferred over the Bluetooth link by sending/receiving data via transparent mode over UART, making it easy to integrate with any processor or Microcontroller with a UART interface. Configuration is made easy using a Windows® based GUI or directly via UART by a microcontroller. The Microchip Bluetooth Data (MBD) mobile app is available to speed up development for both [Android](https://play.google.com/store/apps/details?id=com.microchip.bluetooth.data) and [iOS](https://apps.apple.com/us/app/microchip-bluetooth-data/id1319166097). Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in\*. \*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account. **Firmware Release Summary, see Software Release Notes for details:** BM78SPPx5MC2-0006AA - FW 1.38 - Patched vulnerabilities and added features. BM78SPPx5MC2-0004AA - FW 1.35 - Enhancements to UITool configurations and other bug fixes. BM78SPPx5MC2-0002AA - FW 1.20 - Initial Release. Not recommended for new designs. BM78SPPx5NC2-0002AA - ROM 1.00 - Initial Release. Not recommended for new designs.
