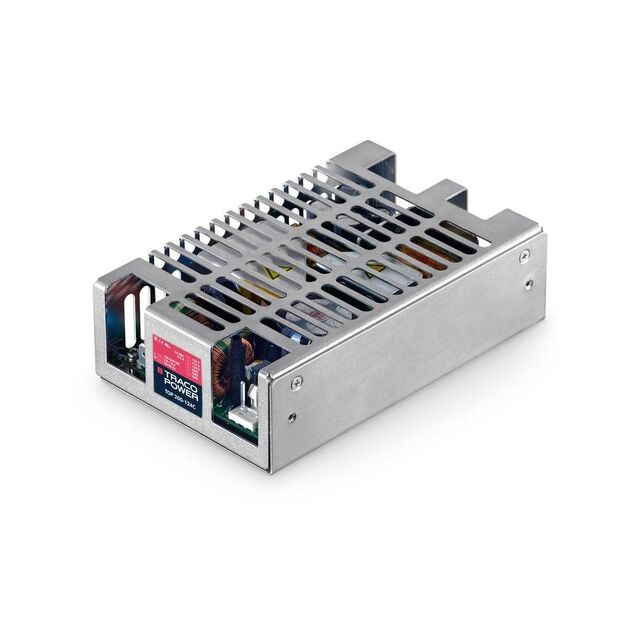

TOP 200 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 48V 202W
| Part | Efficiency | Current - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Voltage - Output 1 | Voltage - Isolation | Number of Outputs | Power (Watts) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 95 % | 4.2 A | 5 " | 34 mm | 1.34 " | 76.2 mm | 127 mm | 3 " | Chassis Mount | Open Frame | ITE (Commercial) | 70 °C | -25 °C | CB cCSAus CE GS SIQ | 48 V | 3000 V | 1 | 202 W | |
 Traco Power | 93 % | 8.3 A | 5 " | 34 mm | 1.34 " | 76.2 mm | 127 mm | 3 " | Chassis Mount | Enclosed | ITE (Commercial) | 70 °C | -25 °C | CB cCSAus CE GS SIQ | 24 V | 3000 V | 1 | 199 W | |
Traco Power | 95 % | 4.2 A | 5 " | 34 mm | 1.34 " | 76.2 mm | 127 mm | 3 " | Chassis Mount | Open Frame | ITE (Commercial) | 70 °C | -25 °C | CB CE CSAus GS SIQ | 48 V | 3000 V | 1 | 202 W | Universal Input |
 Traco Power | 93 % | 13 A | 5 " | 34 mm | 1.34 " | 76.2 mm | 127 mm | 3 " | Chassis Mount | Open Frame | ITE (Commercial) | 70 °C | -25 °C | CB cCSAus CE GS SIQ | 15 V | 3000 V | 1 | 195 W |
