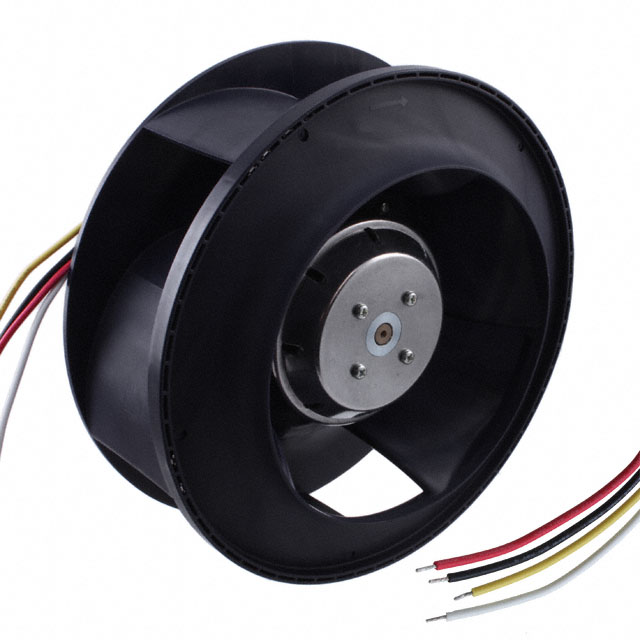

F225A5 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
FAN IMP MTRZD 225X99MM 24VDC
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Material - Blade | Features | Air Flow | Air Flow | Static Pressure | Static Pressure | Termination | Noise | RPM | Bearing Type | Width [y] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Voltage - Rated | Size / Dimension [diameter] | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 3.85 A | 18 VDC | 30 V | 70000 Hrs | Plastic | PWM Control Speed Sensor (Tach) | 611 CFM | 17.11 m³/min | 2.305 in H2O | 574.2 Pa | 4 Wire Leads | 74 dB(A) | 2900 RPM | Ball | 99 mm | 93.6 W | 70 °C | -30 ░C | -30 °C | 70 °C | Motorized Impellers | 24 VDC | 225 mm | 2.1 kg | 4.6 lbs |
