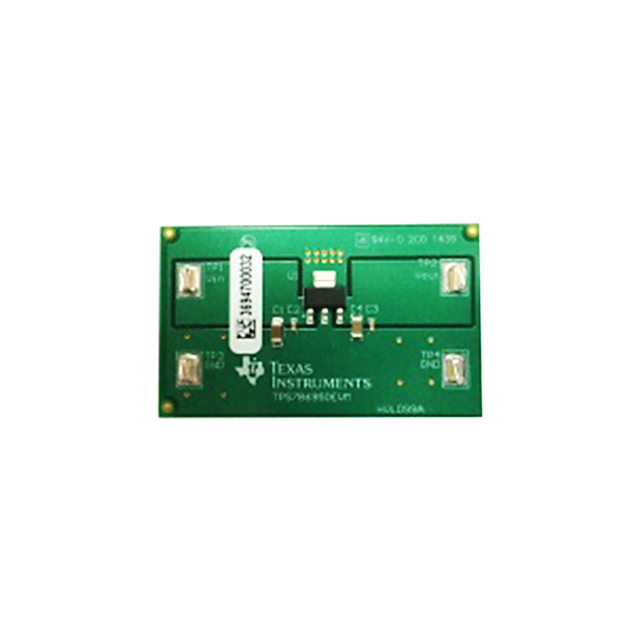

TPS7B69-Q1 Series

Automotive 150-mA, off-battery (40-V), high-PSRR, low-IQ, low-dropout voltage regulator

Catalog

Automotive 150-mA, off-battery (40-V), high-PSRR, low-IQ, low-dropout voltage regulator

Part	Current - Output	Supplier Device Package	Current - Quiescent (Iq)	Mounting Type	PSRR	Voltage Dropout (Max) [Max]	Protection Features	Number of Regulators	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Grade	Voltage - Output (Min/Fixed)	Output Configuration
Texas Instruments TPS7B6950QDBVRQ1	150 mA	SOT-23-5	25 µA	Surface Mount	60 dB	0.8 V	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	1	SC-74A SOT-753	-40 C	150 °C	AEC-Q100	Automotive	5 V	Positive
Texas Instruments TPS7B6925QDBVRQ1	150 mA	SOT-23-5	25 µA	Surface Mount	60 dB	1.58 V	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	1	SC-74A SOT-753	-40 C	150 °C	AEC-Q100	Automotive	2.5 V	Positive
Texas Instruments TPS7B6933QDBVRQ1	150 mA	SOT-23-5	25 µA	Surface Mount	60 dB	0.8 V	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	1	SC-74A SOT-753	-40 C	150 °C	AEC-Q100	Automotive	3.3 V	Positive
Texas Instruments TPS7B6925QDCYRQ1	150 mA	SOT-223-4	25 µA	Surface Mount	60 dB	1.58 V	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	1	TO-261-4 TO-261AA	-40 C	150 °C	AEC-Q100	Automotive	2.5 V	Positive
Texas Instruments TPS7B6950QDCYRQ1	150 mA	SOT-223-4	25 µA	Surface Mount	60 dB	0.8 V	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	1	TO-261-4 TO-261AA	-40 C	150 °C	AEC-Q100	Automotive	5 V	Positive
Texas Instruments TPS7B6933QDCYRQ1	150 mA	SOT-223-4	25 µA	Surface Mount	60 dB	0.8 V	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	1	TO-261-4 TO-261AA	-40 C	150 °C	AEC-Q100	Automotive	3.3 V	Positive

Catalog

Automotive 150-mA, off-battery (40-V), high-PSRR, low-IQ, low-dropout voltage regulator

Description

The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V VIoperations. With only 15-µA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications. The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a –40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications. The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V VIoperations. With only 15-µA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications. The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a –40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications.
