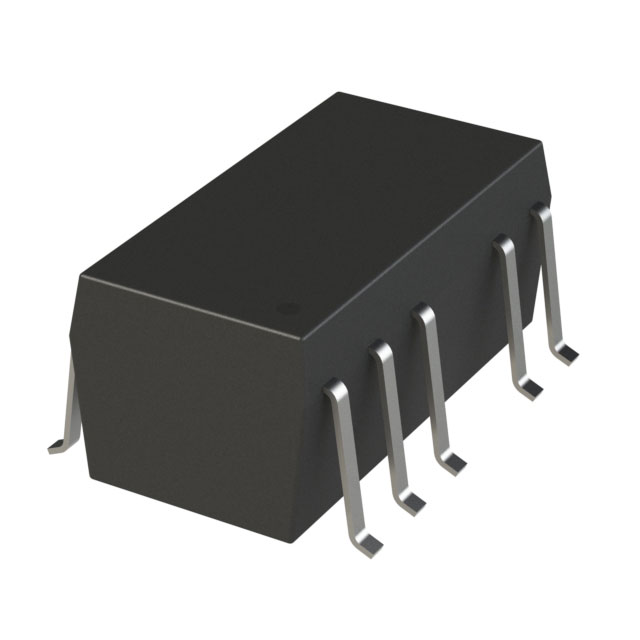

TSV 2412 Series

Catalog

DC DC CONVERTER 12V 960MW

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Applications	Number of Outputs	Type	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]	Power (Watts)	Efficiency	Current - Output (Max)	Voltage - Output 2
Traco Power TSV 2412S	85 °C	-40 C	SCP	Surface Mount	26.4 V	3000 V	ITE (Commercial)	1	Isolated Module	21.6 V	0.31 in	15.2 mm	0.6 "	0.27 "	7 mm	8 mm	22-SMD Module 10 Leads	12 V	80 mA	960 mW	78 %
Traco Power TSV 2412D	85 °C	-40 C	SCP	Surface Mount	26.4 V	3000 V	ITE (Commercial)	2	Isolated Module	21.6 V	0.31 in	15.2 mm	0.6 "	0.27 "	7 mm	8 mm	22-SMD Module 10 Leads	12 V		960 mW	79 %	40 mA	-12 V
