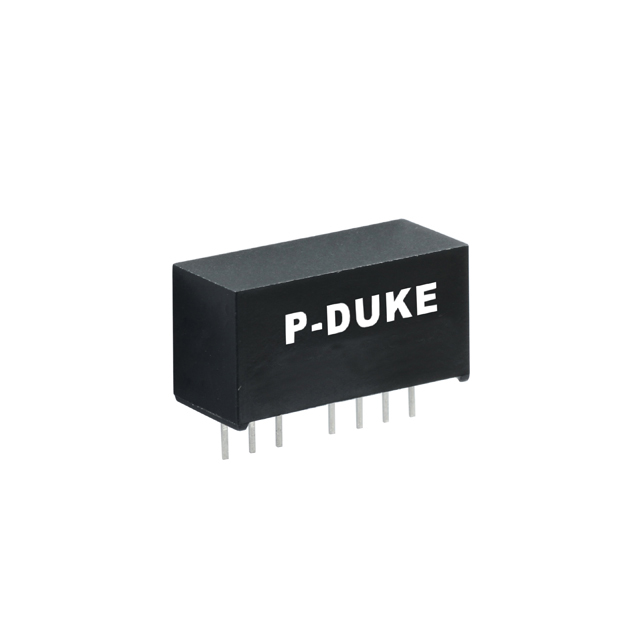

EDL03 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER +/-15V 3W
| Part | Efficiency | Number of Outputs | Voltage - Output 1 | Mounting Type | Power (Watts) | Features | Voltage - Isolation | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Type | Approval Agency | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 85 % | 2 | 15 V | Through Hole | 3 W | Remote On/Off | 1.6 kV | 8-SIP Module 7 Leads | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 36 V | 18 V | ITE (Commercial) | 105 C | -40 °C | 100 mA | 100 mA | -15 V | Isolated Module | CE | |
P-DUKE Technology | 80 % | 1 | 5 V | Through Hole | 3 W | Remote On/Off | 1.6 kV | 8-SIP Module 7 Leads | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 36 V | 9 V | ITE (Commercial) | 105 C | -40 °C | Isolated Module | CE | 600 mA |
