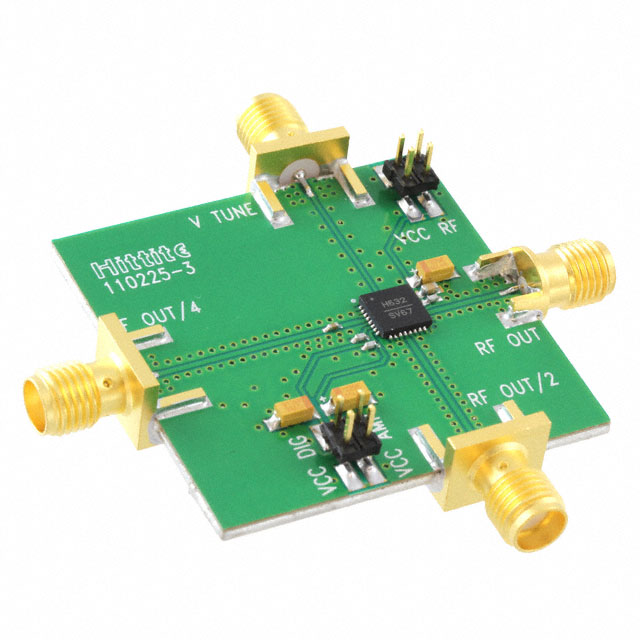

VCO with Fo/2 & Divide-By-4 SMT, 14.25 - 15.65 GHz
Key Features
• Dual Output: Fo = 14.25 - 15.65 GHzFo/2 = 7.125 - 7.825 GHz
• Pout: +9 dBm
• Phase Noise: -107 dBc/Hz @100 kHz Typ.
• No External Resonator Needed
• 32 Lead 5x5mm SMT Package: 25mm2
Description
AI
The HMC632LP5(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC632LP5(E) integrates resonators, negative resistance devices, varactor diodes and features half frequency and divide-by-4 outputs. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +9 dBm typical from a +5V supply voltage. The prescaler and RF/2 functions can be disabled to conserve current if not required. The voltage controlled oscillator is packaged in a leadless QFN 5x5 mm surface mount package, and requires no external matching components.APPLICATIONSPoint to Point/Multipoint RadioTest Equipment & Industrial ControlsSATCOMMilitary End-Use
