C1108 Series
Manufacturer: Prysmian Group
Beta
⌘K

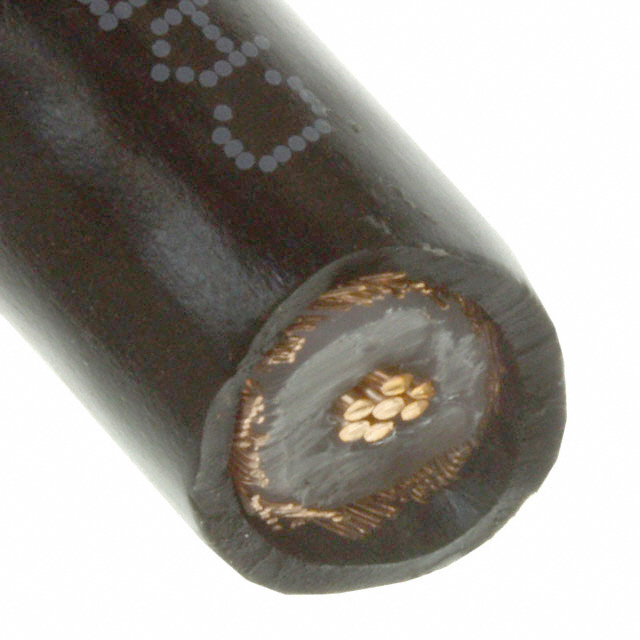

CABLE COAX MINI RG8 16AWG 500'
| Part | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | VoP, Velocity of Propagation | Shield Material | Cable Type | Shield Type | Length [x] | Length [x] | Impedance | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Cable Group | Wire Gauge | Wire Gauge | Usage | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Copper Bare | 3.94 mm | 0.155 in | 95 % | 80 | Copper Bare | Coaxial | Braid | 152.4 m | 500 ft | 50 Ohms | Poly-Vinyl Chloride (PVC) | 28 AWG | 19 | RG-8 Mini | 1.33 mm² | 16 AWG | RF Signal | Black |
Prysmian Group | Copper Bare | 3.94 mm | 0.155 in | 95 % | 80 | Copper Bare | Coaxial | Braid | 304.8 m | 1000 ft | 50 Ohms | Poly-Vinyl Chloride (PVC) | 28 AWG | 19 | RG-8 Mini | 1.33 mm² | 16 AWG | RF Signal | Black |
