TPS54561-Q1 Series

Automotive 4.5V to 60V Input 5A Step-Down DC-DC Converter With Soft-Start and Eco-mode™

Catalog

Automotive 4.5V to 60V Input 5A Step-Down DC-DC Converter With Soft-Start and Eco-mode™

Part	Output Configuration	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Output Type	Number of Outputs	Frequency - Switching [Max]	Frequency - Switching [Min]	Function	Supplier Device Package	Voltage - Input (Max) [Max]	Qualification	Package / Case	Voltage - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Topology	Current - Output	Voltage - Output	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Regulator Topology	Utilized IC / Part	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose
Texas Instruments TPS54561QDPRRQ1	Positive	4.5 V	0.8 V	Adjustable	1	2.5 MHz	100 kHz	Step-Down	10-WSON (4x4)	60 V	AEC-Q100	10-WDFN Exposed Pad	58.8 V	Surface Mount	150 °C	-40 °C	Automotive	Buck	5 A

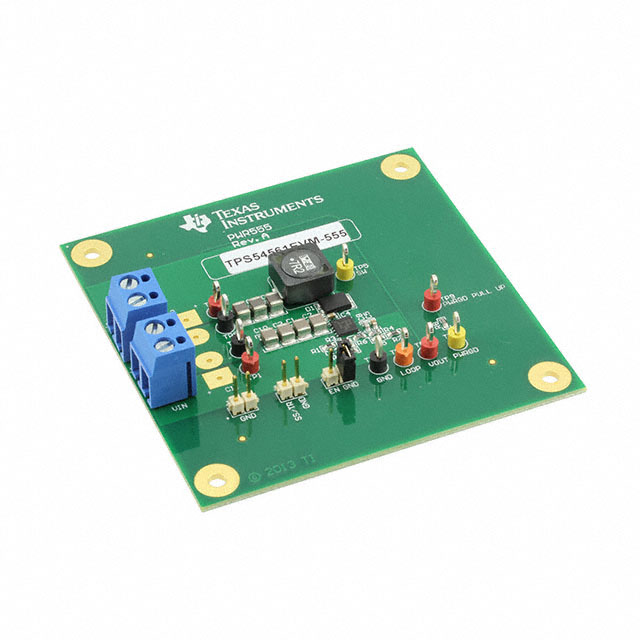

Texas Instruments TPS54561EVM-555																			5 A	5 V	Board(s)	Non-Isolated	1	Fully Populated	Buck	TPS54561	400 kHz	60 V	7 V	DC/DC Step Down
Texas Instruments TPS54561DPRT	Positive	4.5 V	0.8 V	Adjustable	1	2.5 MHz	100 kHz	Step-Down	10-WSON (4x4)	60 V		10-WDFN Exposed Pad	59 V	Surface Mount	150 °C	-40 °C		Buck	5 A
Texas Instruments TPS54561DPRR	Positive	4.5 V	0.8 V	Adjustable	1	2.5 MHz	100 kHz	Step-Down	10-WSON (4x4)	60 V		10-WDFN Exposed Pad	59 V	Surface Mount	150 °C	-40 °C		Buck	5 A

Catalog

Automotive 4.5V to 60V Input 5A Step-Down DC-DC Converter With Soft-Start and Eco-mode™

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification H1CDevice CDM ESD Classification C5High Efficiency at Light Loads With Pulse-Skipping Eco-mode™ Control87-mΩ High-Side MOSFET152-µA Operating Quiescent Current and 2-µA Shutdown Current100-kHz to 2.5-MHz Switching FrequencySynchronizes to External ClockLow-Dropout Operation at Light Loads With Integrated BOOT Recharge FETAdjustable UVLO Voltage and HysteresisPower-Good Output Monitor for Undervoltage and OvervoltageAdjustable Soft-Start and Sequencing0.8-V 1% Internal Voltage Reference10-Pin WSON With Thermal Pad Package–40°C to 150°C TJOperating RangeCreate a Custom Design using the TPS54561-Q1 with theWEBENCH® Power DesignerQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification H1CDevice CDM ESD Classification C5High Efficiency at Light Loads With Pulse-Skipping Eco-mode™ Control87-mΩ High-Side MOSFET152-µA Operating Quiescent Current and 2-µA Shutdown Current100-kHz to 2.5-MHz Switching FrequencySynchronizes to External ClockLow-Dropout Operation at Light Loads With Integrated BOOT Recharge FETAdjustable UVLO Voltage and HysteresisPower-Good Output Monitor for Undervoltage and OvervoltageAdjustable Soft-Start and Sequencing0.8-V 1% Internal Voltage Reference10-Pin WSON With Thermal Pad Package–40°C to 150°C TJOperating RangeCreate a Custom Design using the TPS54561-Q1 with theWEBENCH® Power Designer

Description

The TPS54561-Q1 device is a 60-V, 5-A, step-down regulator with an integrated high-side MOSFET. The device survives load dump pulses up to 65 V per ISO7637. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode and 152-µA supply current enables high efficiency at light loads. Pulling the enable pin low reduces shutdown supply current to 2 µA. Undervoltage lockout has an internal 4.3-V setting. Use of an external resistor divider at the EN pin can increase the setting. The soft-start pin controls the output-voltage start-up ramp and also configures sequencing or tracking. An open-drain power-good signal indicates the output is within 93% to 106% of its nominal voltage. A wide adjustable switching-frequency range allows optimization for either efficiency or external component size. Cycle-by-cycle current limit, frequency foldback, and thermal shutdown protect the device during an overload condition. The TPS54561-Q1 is available in a 10-pin, 4-mm × 4-mm WSON package. The TPS54561-Q1 device is a 60-V, 5-A, step-down regulator with an integrated high-side MOSFET. The device survives load dump pulses up to 65 V per ISO7637. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode and 152-µA supply current enables high efficiency at light loads. Pulling the enable pin low reduces shutdown supply current to 2 µA. Undervoltage lockout has an internal 4.3-V setting. Use of an external resistor divider at the EN pin can increase the setting. The soft-start pin controls the output-voltage start-up ramp and also configures sequencing or tracking. An open-drain power-good signal indicates the output is within 93% to 106% of its nominal voltage. A wide adjustable switching-frequency range allows optimization for either efficiency or external component size. Cycle-by-cycle current limit, frequency foldback, and thermal shutdown protect the device during an overload condition. The TPS54561-Q1 is available in a 10-pin, 4-mm × 4-mm WSON package.
