1010788 Series
Manufacturer: Integrated Power Designs
Beta
⌘K
DC/DC CONVERTER 3.3V 46W
| Part | Power (Watts) | Standard Number | Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Input (Max) [Max] | Applications | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Efficiency | Approval Agency | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

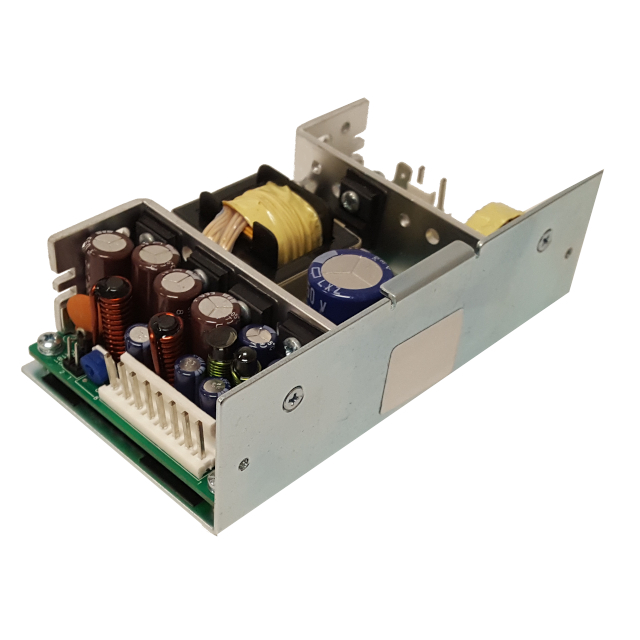

 Integrated Power Designs | 46 W | 60601-1; 62368-1 | Chassis | 70 °C | 0 °C | 1 | 72 V | ITE (Commercial) Medical | 36 V | 14 A | 78 % | CE cURus TUV UKCA | 3.3 V | 121.6 mm | 37.6 mm | 4.79 in | 2.62 " | 66.5 mm | 1.48 " | Chassis Mount |

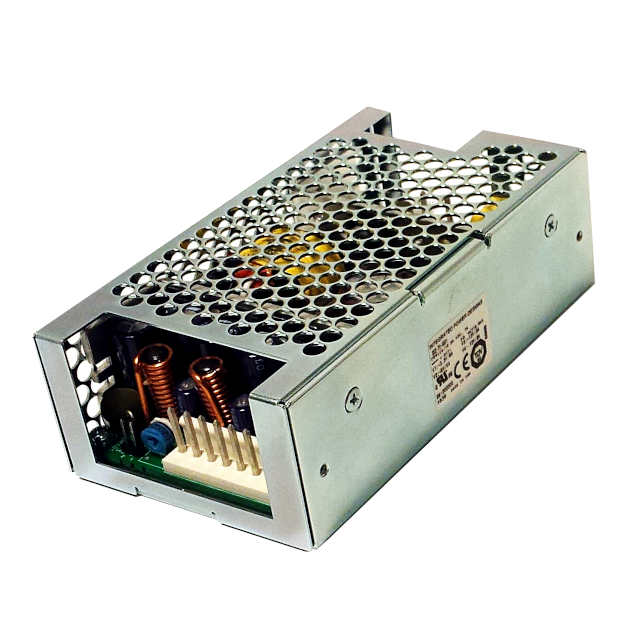

 Integrated Power Designs | 46 W | 60601-1; 62368-1 | Enclosed | 70 °C | 0 °C | 1 | 72 V | ITE (Commercial) Medical | 36 V | 14 A | 78 % | CE cURus TUV UKCA | 3.3 V | 121.6 mm | 37.6 mm | 4.79 in | 2.62 " | 66.5 mm | 1.48 " | Chassis Mount |
