MVSTBR Series

Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 24-12 AWG Screw

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 24-12 AWG Screw

Catalog

Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 24-12 AWG Screw

Part	Wire Strip Length	Housing Material	Insulation Height	Insulation Height	Material Flammability Rating	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Screw Size	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Type	Voltage - IEC	Contact Mating Finish	Pitch	Pitch	Termination Style	Plug Wire Entry	Features	Current - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Positions Per Level	Voltage - UL	Mounting Type	Color	Number of Positions	Current - UL	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Positions Per Level [custom]
Phoenix Contact 1792168	7 mm	Polyamide (PA) Nylon	26.01 mm	1.024 in	UL94 V-0	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	2.5 mm²	0.2 mm²	Plug Female Sockets	630 V	Tin	0.197 in	5 mm	Screw - Rising Cage Clamp	90 °	Retention Latches (Wire Side)	12 A	30 AWG	12 AWG	1	17	300 V	Free Hanging (In-Line)	Green
Phoenix Contact 1746165	7 mm		26.01 mm	1.024 in		0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	2.5 mm²	0.2 mm²	Plug Female Sockets	250 V	Tin	0.2 in	5.08 mm	Screw - Rising Cage Clamp	90 °	Mating Flange Retention Latches (Wire Side)	12 A	30 AWG	12 AWG	1	4		Free Hanging (In-Line)	Black	4
Phoenix Contact 1912663	7 mm	Polyamide (PA) Nylon	26.01 mm	1.024 in	UL94 V-0	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	2.5 mm²	0.2 mm²	Plug Female Sockets	630 V	Tin	0.2 in	5.08 mm	Screw - Rising Cage Clamp	90 °	Mating Flange Retention Latches (Wire Side)	16 A	30 AWG	12 AWG	1	6	300 V	Free Hanging (In-Line)	Green	6	16 A
Phoenix Contact 1754047	7 mm					0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	2.5 mm²	0.2 mm²	Plug	250 V	Tin	0.197 in	5 mm	Screw			12 A			1	3		Free Hanging (In-Line)	Black			2.5 mm˛	0.2 mm˛
Phoenix Contact 1792427											2.5 mm²	0.2 mm²	Plug Female Sockets	630 V	Tin	0.2 in	5.08 mm	Screw - Rising Cage Clamp	90 °	Retention Latches (Wire Side)	12 A	30 AWG	12 AWG	1	20	300 V	Free Hanging (In-Line)	Green	20
Phoenix Contact 1912472	7 mm	Polyamide (PA) Nylon	26.01 mm	1.024 in	UL94 V-0	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	2.5 mm²	0.2 mm²	Plug Female Sockets	630 V	Tin	0.2 in	5.08 mm	Screw - Rising Cage Clamp	90 °	Retention Latches (Wire Side)	16 A	30 AWG	12 AWG	1	9	300 V	Free Hanging (In-Line)	Green	9	16 A	2.5 mm˛	0.2 mm˛
Phoenix Contact 1958300											2.5 mm²	0.2 mm²	Plug Female Sockets	250 V	Tin	0.197 in	5 mm	Screw - Rising Cage Clamp	90 °	Retention Latches (Wire Side)	12 A			1	8		Free Hanging (In-Line)	Gray	8

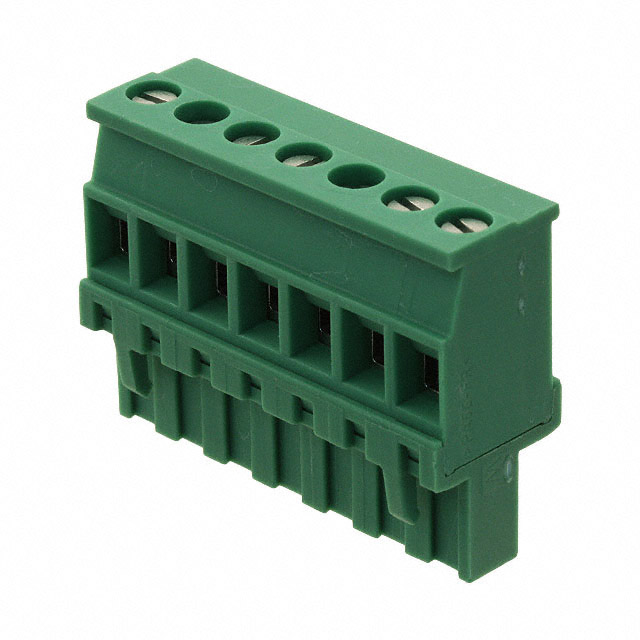

Phoenix Contact 1792061	7 mm	Polyamide (PA) Nylon	26.01 mm	1.024 in	UL94 V-0	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	2.5 mm²	0.2 mm²	Plug Female Sockets	630 V	Tin	0.197 in	5 mm	Screw - Rising Cage Clamp	90 °	Retention Latches (Wire Side)	12 A	30 AWG	12 AWG	1		300 V	Free Hanging (In-Line)	Green	7				7
Phoenix Contact 1912294	7 mm	Polyamide (PA) Nylon	26.01 mm	1.024 in	UL94 V-0	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	2.5 mm²	0.2 mm²	Plug Female Sockets	630 V	Tin	0.197 in	5 mm	Screw - Rising Cage Clamp	90 °	Retention Latches (Wire Side)	16 A	30 AWG	12 AWG	1	2	300 V	Free Hanging (In-Line)	Green	2	16 A

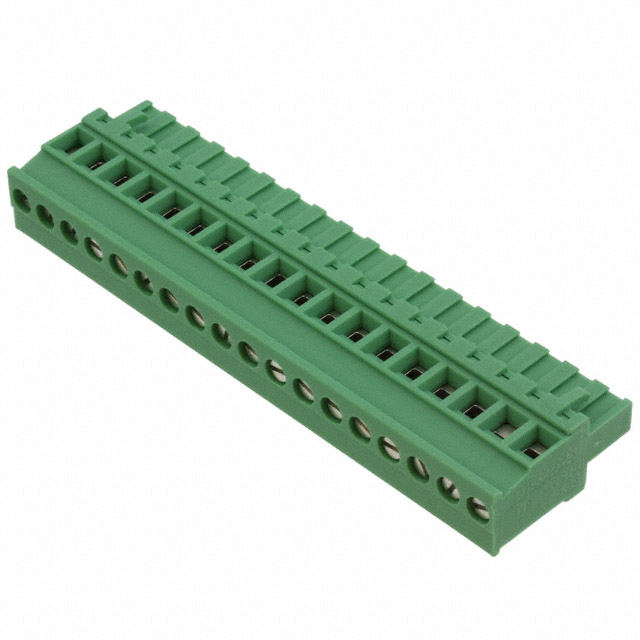

Phoenix Contact 1792401	7 mm	Polyamide (PA) Nylon	26.01 mm	1.024 in	UL94 V-0	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	2.5 mm²	0.2 mm²	Plug Female Sockets	630 V	Tin	0.2 in	5.08 mm	Screw - Rising Cage Clamp	90 °	Retention Latches (Wire Side)	12 A	30 AWG	12 AWG	1	18	300 V	Free Hanging (In-Line)	Green	18
