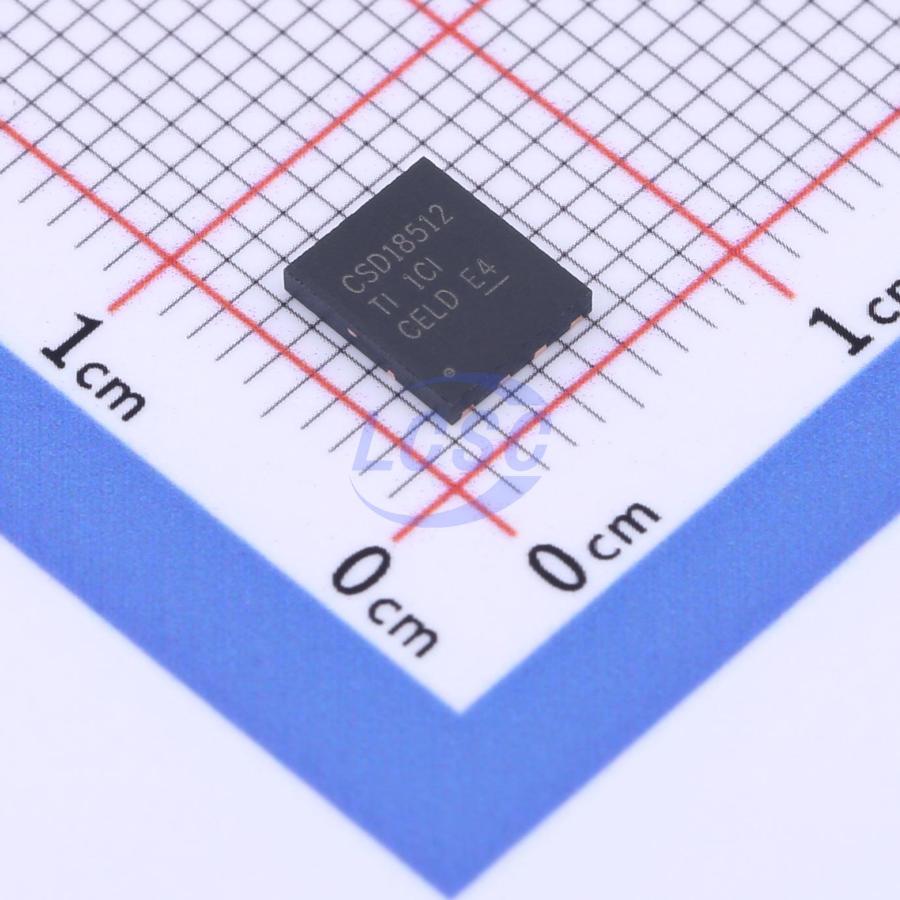

CSD18512 Series

Catalog

40V 100A 1.3MΩ@10V,30A 3.1W 1.6V 1 N-CHANNEL VSON-8(5X6) MOSFETS ROHS

Part	Technology	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Vgs(th) (Max) @ Id [Max]	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	FET Type	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs
Texas Instruments CSD18512Q5B	MOSFET (Metal Oxide)	1.6 mOhm	-55 °C	150 °C	Surface Mount	8-PowerTDFN	211 A	139 W	2.2 V	7120 pF	20 V	4.5 V 10 V	8-VSON-CLIP (5x6)	N-Channel	40 V
Texas Instruments CSD18512Q5BT	MOSFET (Metal Oxide)	1.6 mOhm	-55 °C	150 °C	Surface Mount	8-PowerTDFN	211 A	139 W	2.2 V	7120 pF	20 V	4.5 V 10 V	8-VSON-CLIP (5x6)	N-Channel	40 V	98 nC
