TMR 3 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Traco Power

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Applications	Number of Outputs	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power TMR 3-0512E	Through Hole	4.5 V	1.5 kV	Remote On/Off SCP	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	3 W	250 mA	9 V	Isolated Module	12 V	-40 °C	85 °C	8-SIP Module 7 Leads	ITE (Commercial)	1	79 %
Traco Power TMR 3-4810	Through Hole	36 V	1.6 kV	Remote On/Off SCP	9.2 mm	21.8 mm	0.86 "	11.1 mm	0.44 in	0.36 in	2.3 W	700 mA	75 V	Isolated Module	3.3 V	-40 °C	85 °C	8-SIP Module 7 Leads	ITE (Commercial)	1	74 %
Traco Power TMR 3-7222WIR	Through Hole	43 V	3000 V	Remote On/Off SCP	9.6 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.38 "	3 W		160 V	Isolated Module	12 V	-40 °C	90 °C	8-SIP Module	ITE (Commercial) Railway	2	83 %	-12 V	125 mA
Traco Power TMR 3-1223	Through Hole	9 V	1.6 kV	Remote On/Off SCP	9.2 mm	21.8 mm	0.86 "	11.1 mm	0.44 in	0.36 in	3 W		18 V	Isolated Module	15 V	-40 °C	85 °C	8-SIP Module 7 Leads	ITE (Commercial)	2	83 %	-15 V		100 mA	100 mA

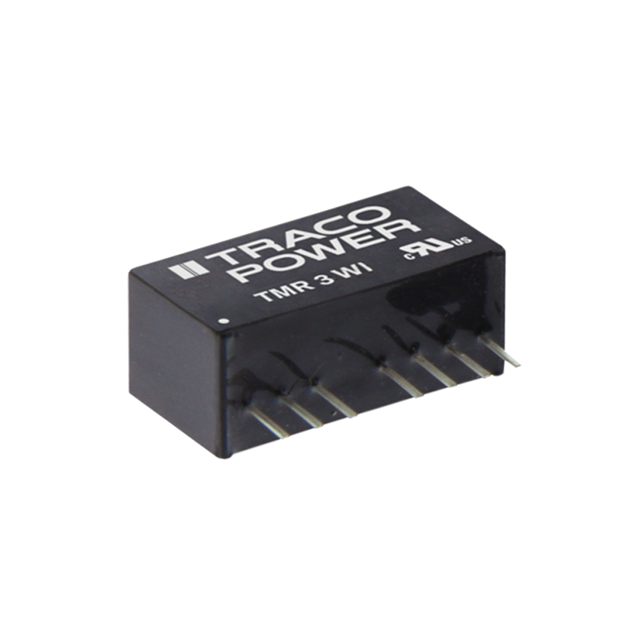

Traco Power TMR 3-4821WI	Through Hole	18 V	1.6 kV	Remote On/Off SCP	9.2 mm	21.8 mm	0.86 "	11.1 mm	0.44 in	0.36 in	3 W	0.3 A	75 V	Isolated Module	5 V	-40 °C	85 °C	8-SIP Module 7 Leads	ITE (Commercial)	2	79 %	-5 V
Traco Power TMR 3-2413WIR	Through Hole	9 V	3000 V	Remote On/Off SCP	9.6 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.38 "	3 W	200 mA	36 V	Isolated Module	15 V	-40 °C	90 °C	8-SIP Module	ITE (Commercial) Railway	1	83 %
Traco Power TMR 3-1212	Through Hole	9 V	1.6 kV	Remote On/Off SCP	9.2 mm	21.8 mm	0.86 "	11.1 mm	0.44 in	0.36 in	3 W	250 mA	18 V	Isolated Module	12 V	-40 °C	85 °C	8-SIP Module 7 Leads	ITE (Commercial)	1	83 %

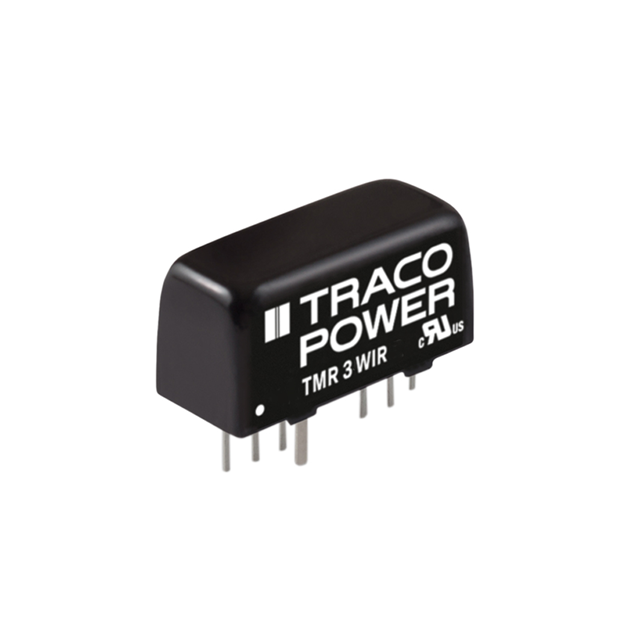

Traco Power TMR 3-2421WIR	Through Hole	9 V	3000 V	Remote On/Off SCP	9.6 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.38 "	3 W	0.3 A	36 V	Isolated Module	5 V	-40 °C	90 °C	8-SIP Module	ITE (Commercial) Railway	2	80 %	-5 V
Traco Power TMR 3-0523WISM	Surface Mount	4.5 V	1.5 kV	Remote On/Off SCP	14.9 mm	19 mm	0.75 in	8.7 mm	0.34 in	0.59 in	3 W		12 V	Isolated Module	15 V	-40 C	80 °C	14-SMD Module 7 Leads	ITE (Commercial)	2	83 %	-15 V		100 mA	100 mA
Traco Power TMR 3-4822E	Through Hole	36 V	1.5 kV	Remote On/Off SCP	9.3 mm	21.8 mm	0.86 "	11.2 mm	0.44 in	0.37 in	3 W		75 V	Isolated Module	12 V	-40 °C	85 °C	8-SIP Module 7 Leads	ITE (Commercial)	2	83 %	-12 V	125 mA
