AD7606C-18 Series

8-Channel DAS with 16-Bit, 800 kSPS Bipolar Input, Simultaneous Sampling ADC

Catalog

8-Channel DAS with 16-Bit, 800 kSPS Bipolar Input, Simultaneous Sampling ADC

Part	Power (Typ) @ Conditions	Input Range	Supplied Contents	Data Interface	Sampling Rate (Per Second)	Utilized IC / Part	Number of A/D Converters	Number of Bits	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Resolution (Bits)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage Supply Source	Number of Channels	Sampling Rate (Per Second)	Input Type	Reference Type	Features	Configuration	Number of Inputs	Ratio - S/H:ADC	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Architecture	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Number of Channels [custom]

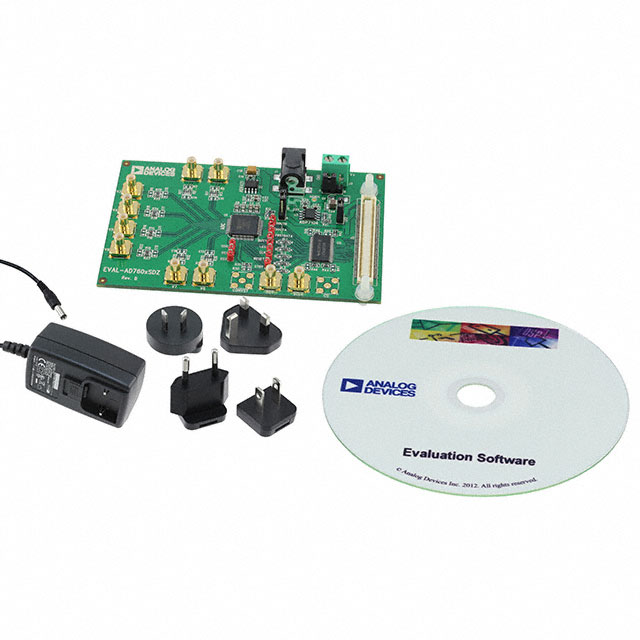

Analog Devices EVAL-AD7606-4SDZ	75 mW	10 V	Board(s) Power Supply	DSP MICROWIRE™ Parallel QSPI™ Serial SPI™	200k	AD7606-4	1	16
Analog Devices EVAL-AD7606-6EDZ	90 mW	10 V	Board(s)	DSP MICROWIRE™ Parallel QSPI™ Serial SPI™	200k	AD7606-6	1	16
Analog Devices AD7606BBSTZ				Parallel Serial	800k				Surface Mount	1.71 V 3.6 V	4.75 V 5.25 V	64-LQFP	16 b	125 °C	-40 °C	64-LQFP (10x10)	Analog and Digital	8
Analog Devices AD7606BSTZ-4RL				DSP MICROWIRE™ Parallel QSPI™ Serial SPI™	200k				Surface Mount	2.3 V 4.75 V	5.25 V	64-LQFP	16 b	85 °C	-40 °C	64-LQFP (10x10)	Analog and Digital	4
Analog Devices AD7606BSTZ				DSP MICROWIRE™ Parallel QSPI™ Serial SPI™	200k				Surface Mount	2.3 V 4.75 V	5.25 V	64-LQFP	16 b	85 °C	-40 °C	64-LQFP (10x10)	Analog and Digital	8
Analog Devices AD7606C-18BSTZ-RL				Parallel Serial			1		Surface Mount			64-LQFP		125 °C	-40 °C	64-LQFP (10x10)			1 M	Differential Single Ended	External Internal	PGA Simultaneous Sampling	PGA-ADC	8	0:1	5.25 V	1.71 V	SAR	5.25 V	4.75 V
Analog Devices EVAL-AD7606SDZ	100 mW	10 V	Board(s) Power Supply	DSP MICROWIRE™ Parallel QSPI™ Serial SPI™	200k	AD7606	1	16
Analog Devices AD7606C-18BSTZ				Parallel Serial			1		Surface Mount			64-LQFP		125 °C	-40 °C	64-LQFP (10x10)			1 M	Differential Single Ended	External Internal	PGA Simultaneous Sampling	PGA-ADC	8	0:1	5.25 V	1.71 V	SAR	5.25 V	4.75 V
Analog Devices AD7606BSTZ-6				DSP MICROWIRE™ Parallel QSPI™ Serial SPI™	200k				Surface Mount	2.3 V 4.75 V	5.25 V	64-LQFP	16 b	85 °C	-40 °C	64-LQFP (10x10)	Analog and Digital														6
Analog Devices EVAL-AD7606EDZ	100 mW	10 V	Board(s)	DSP MICROWIRE™ Parallel QSPI™ Serial SPI™	200k	AD7606	1	16

Catalog

8-Channel DAS with 16-Bit, 800 kSPS Bipolar Input, Simultaneous Sampling ADC

Key Features

• 18-bit ADC with 1 MSPS on all channels

• Input buffer with 1 MΩ minimum analog input impedance (RIN)

• Single 5 V analog supply and 1.71 V to 5.25 V VDRIVE

• Per channel selectable analog input rangesBipolar single-ended: ±12.5 V, ±10 V, ±6.25 V, ±5 V, ±2.5 VUnipolar single-ended: 0 V to 12.5 V, 0 V to 10 V, 0 V to 5 VBipolar differential: ±20 V, ±12.5 V, ±10 V, ±5 V

• Bipolar single-ended: ±12.5 V, ±10 V, ±6.25 V, ±5 V, ±2.5 V

• Unipolar single-ended: 0 V to 12.5 V, 0 V to 10 V, 0 V to 5 V

• Bipolar differential: ±20 V, ±12.5 V, ±10 V, ±5 V

• Two bandwidth options: 25 kHz and 220 kHz, per channel

• Flexible digital filter, oversampling ratio up to 256

• −40°C to +125°C operating range

• ±21 V input clamp protection with 6 kV ESD

• Pin to pin compatible to the AD7606B, AD7608, and AD7609

• Performance93 dB typical SNR for ±20 V bipolar differential range102 dB SNR, oversampling by 32−100 dB typical THD for all other rangesTUE = 0.05% of FSR maximum, external reference±0.5 ppm/°C typical PFS and NFS error drift±3 ppm/°C typical reference temperature coefficient

• 93 dB typical SNR for ±20 V bipolar differential range

• 102 dB SNR, oversampling by 32

• −100 dB typical THD for all other ranges

• TUE = 0.05% of FSR maximum, external reference

• ±0.5 ppm/°C typical PFS and NFS error drift

• ±3 ppm/°C typical reference temperature coefficient

• Calibration and DiagnosticsPer channel system phase, offset, and gain calibrationAnalog input open circuit detection featureSelf diagnostics and monitoring featuresCRC error checking on read and write data and registers

• Per channel system phase, offset, and gain calibration

• Analog input open circuit detection feature

• Self diagnostics and monitoring features

• CRC error checking on read and write data and registers

Description

The AD7606B is a 16-bit, simultaneous sampling, analog-to-digital data acquisition system (DAS) with eight channels, each channel containing analog input clamp protection, a programable gain amplifier (PGA), a low-pass filter, and a 16-bit successive approximation register (SAR), analog-to-digital converter (ADC). The AD7606B also contains a flexible digital filter, low drift, 2.5 V precision reference and reference buffer to drive the ADC and flexible parallel and serial interfaces.The AD7606B operates from a single 5 V supply and accommodates ±10 V, ±5 V, and ±2.5 V true bipolar input ranges when sampling at throughput rates of 800 kSPS for all channels. The input clamp protection tolerates voltages up to ±21 V. The AD7606B has a 5 MΩ analog input impedance, resulting in less than 20 LSB bipolar zero code when the input signal is disconnected and pulled to ground through a 10 kΩ external resistor. The single supply operation, on-chip filtering, and high input impedance eliminates the need for external driver op amps, which require bipolar supplies. For applications with lower throughput rates, the AD7606B flexible digital filter can be used to improve noise performance.In hardware mode, the AD7606B is fully compatible with the AD7606. In software mode, the following advanced features are available:Additional ±2.5 V analog input range.Analog input range (±10 V, ±5 V, and ±2.5 V), selectable per channel.Additional oversampling (OS) options, up to OS × 256.System gain, system offset, and system phase calibration per channel.Analog input open circuit detector.Diagnostic multiplexer.Monitoring functions (serial peripheral interface (SPI) invalid read/write, cyclic redundancy check (CRC), overvoltage and undervoltage events, busy stuck monitor, and reset detection).Note that throughout this data sheet, multifunction pins, such as theRD/SCLK pin, are referred to either by the entire pin name or by a single function of the pin, for example, the SCLK pin, when only that function is relevant.ApplicationsPower line monitoringProtective relaysMultiphase motor controlInstrumentation and control systemsData acquisition systems
