RM21WTR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT MALE 15P SOLDER CUP
| Part | Shell Size - Insert [custom] | Orientation | Number of Positions | Mounting Feature | Shell Finish | Material Flammability Rating | Color | Mounting Type | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Contact Material | Insert Material | Shell Material | Ingress Protection | Voltage Rating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Finish - Mating | Features | Shielding | Backshell Material, Plating | Shell Size - Insert | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

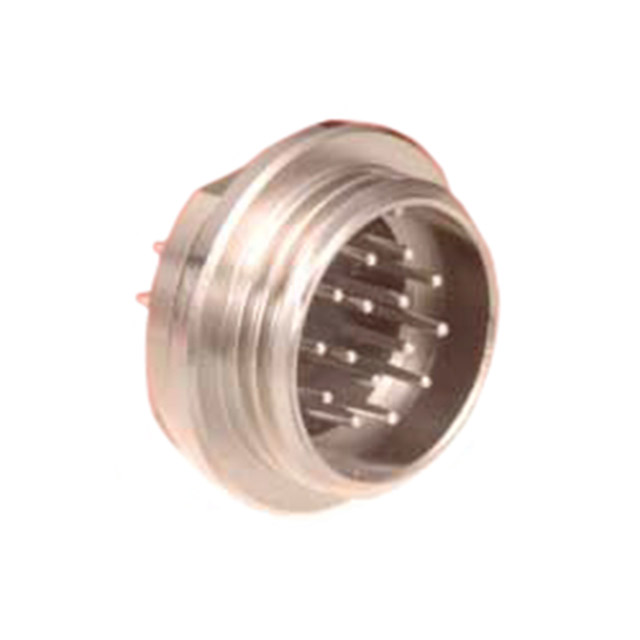

 Hirose Electric Co Ltd | 21 | Keyed | 15 | Bulkhead - Rear Side Nut | Nickel | UL94 V-0 | Silver | Panel Mount | Receptacle Male Pins | 4 µm | 157.5 µin | Metal | Brass | Diallyl Phthalate (DAP) | Brass | IP67/IP68 | 500 VAC 700 VDC | 5 A | 85 °C | -25 °C | Threaded | Silver | ||||||
Hirose Electric Co Ltd | 21 | Keyed | 20 | Nickel | UL94 V-0 | Silver | Free Hanging (In-Line) | Receptacle Female Sockets | 0.127 µm | 5 µin | Metal | Copper Alloy | Polyphenylene Sulfide (PPS) | Brass | IP67/IP68 | 350 VAC 490 VDC | 5 A | 85 °C | -25 °C | Threaded | Silver | Backshell Coupling Nut | Unshielded | Brass Nickel | ||||
Hirose Electric Co Ltd | 21 | Keyed | 20 | Bulkhead - Rear Side Nut | Nickel | UL94 V-0 | Silver | Panel Mount | Receptacle Male Pins | Metal | Copper Alloy | Polyphenylene Sulfide (PPS) | Brass | IP67/IP68 | 350 VAC 490 VDC | 5 A | 85 °C | -25 °C | Threaded | Silver | Unshielded | |||||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||||

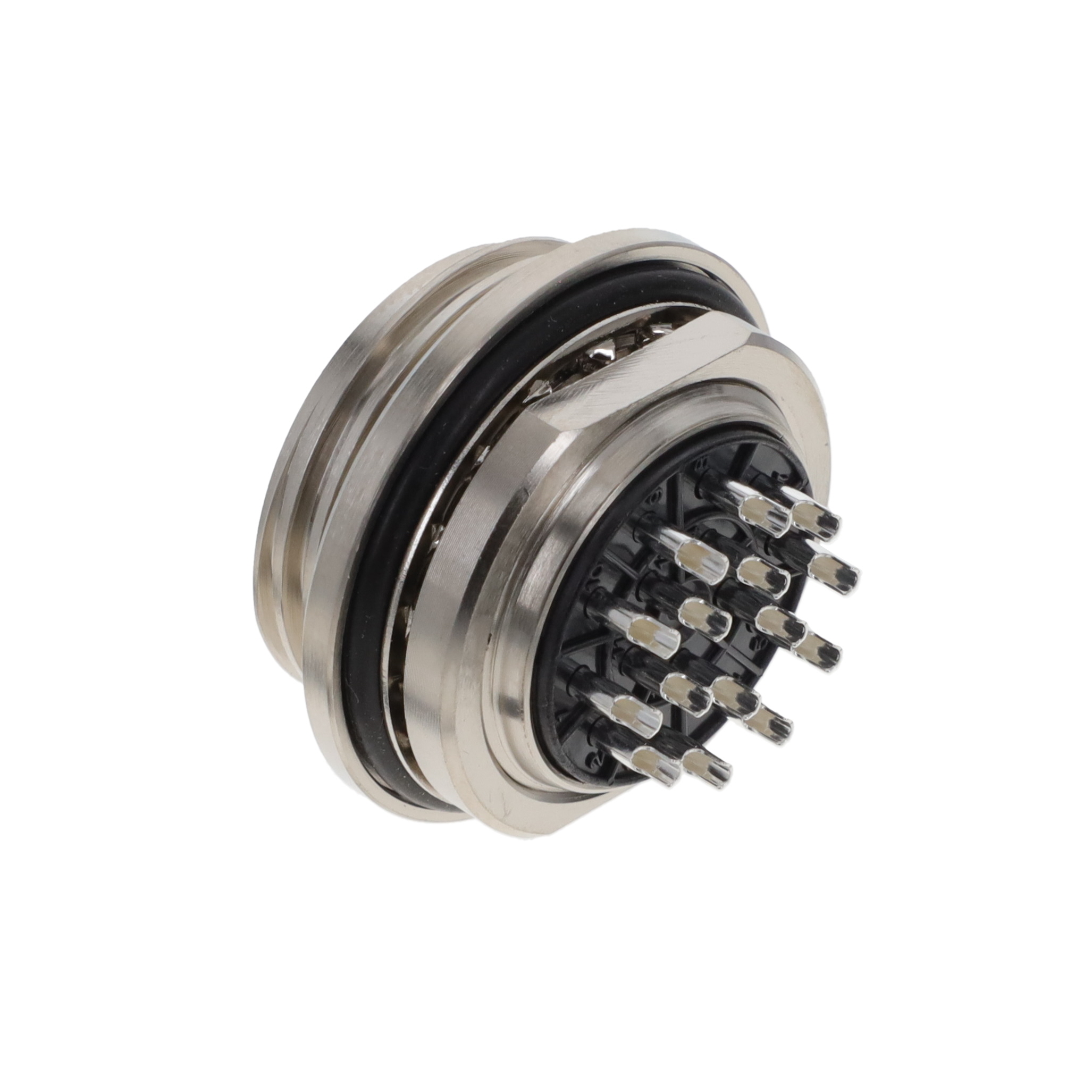

 Hirose Electric Co Ltd | Keyed | 15 | Bulkhead - Rear Side Nut | UL94 V-0 | Black | Panel Mount | Receptacle Female Sockets | Metal | Polyphenylene Sulfide (PPS) | IP67/IP68 | 85 °C | -25 °C | Threaded | Shielded | 25 | |||||||||||||

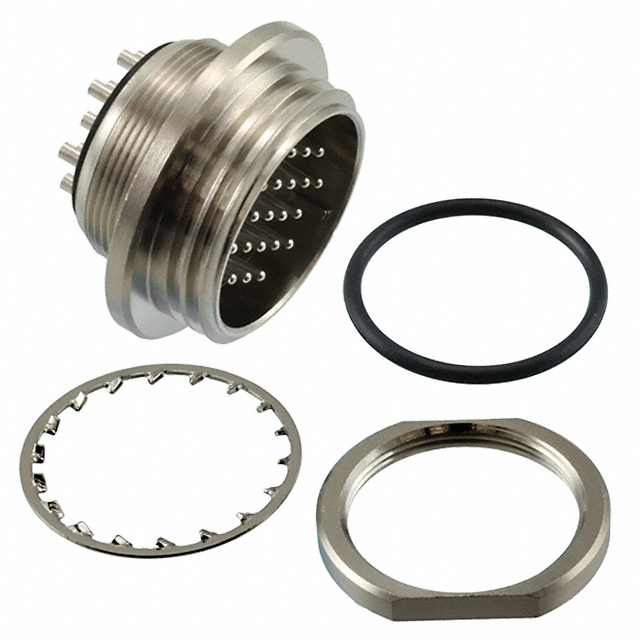

 Hirose Electric Co Ltd | 21 | Keyed | 20 | Bulkhead - Rear Side Nut | Nickel | UL94 V-0 | Silver | Panel Mount | Receptacle Male Pins | 4 µm | 157.5 µin | Metal | Brass | Diallyl Phthalate (DAP) | Brass | IP67/IP68 | 350 VAC 490 VDC | 5 A | 85 °C | -25 °C | Threaded | Silver | ||||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||||
 Hirose Electric Co Ltd | 21 | Metal Chain with Ring Waterproof | Cap (Cover) Dust | RM-W Series Receptacle |
