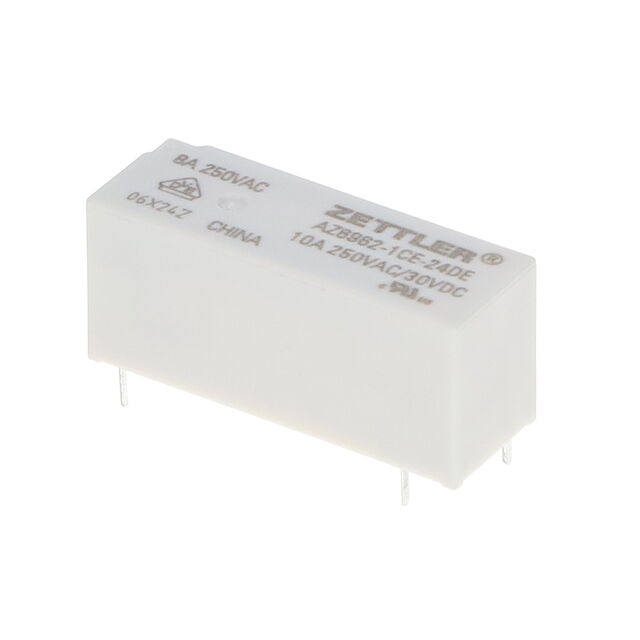

AZ6962-1C Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 24V
| Part | Coil Resistance | Mounting Type | Load - Max Switching | Relay Type | Contact Form | Seal Rating | Contact Rating (Current) | Release Time | Termination Style | Must Operate Voltage | Coil Type | Contact Material | Approval Agency | Coil Voltage | Must Release Voltage | Coil Insulation | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 2.35 kOhms | Through Hole | 300 W 2500 VA | General Purpose | SPDT (1 Form C) | Sealed - Fully | 10 A | 3 ms | PC Pin | 16.8 VDC | Non Latching | Silver Tin Oxide (AgSnO) | cUR UL VDE | 24 VDC | 2.4 VDC | Class F | 7 ms | 85 °C | -40 C | 10.2 mA | 125 VDC 440 VAC |
 American Zettler | 2.35 kOhms | Through Hole | 300 W 2500 VA | General Purpose | SPDT (1 Form C) | Sealed - Fully | 10 A | 3 ms | PC Pin | 16.8 VDC | Non Latching | Silver Tin Oxide (AgSnO) | cUR UL VDE | 24 VDC | 2.4 VDC | Class F | 7 ms | 85 °C | -40 C | 10.2 mA | 125 VDC 440 VAC |
