LIS3 Series

LIS3MDL adapter board for standard DIL24 socket

Catalog

LIS3MDL adapter board for standard DIL24 socket

Part	Sensitivity (mV/g)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Package / Case [custom]	Bandwidth	Type	Mounting Type	Axis [z]	Axis [y]	Axis [x]	Supplier Device Package	Output Type	Acceleration Range [Max]	Acceleration Range	Acceleration Range [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Bandwidth [Max]	Bandwidth [Min]	Sensitivity (LSB/g)	Sensing Range	Technology	Current - Supply (Max) [Max]	Resolution	Interconnect System	Suggested Programming Environment	Platform	Contents	Utilized IC / Part	Function
STMicroelectronics E-LIS3L02AS5TR	333 mV/g 1000 mV/g	Selectable Scale	85 °C	-40 C	24-SOIC	7.5 mm	0.295 in	1.5 kHz	Analog	Surface Mount	Z	Y	X	24-SO	Analog Voltage	2 g	6 g	-2 g	5.5 V	4.5 V
STMicroelectronics LIS3LV02DQ-TR		Adjustable Bandwidth Selectable Scale	85 °C	-40 C	28-QFN Exposed Pad				Digital	Surface Mount	Z	Y	X	28-QFPN (7x7)	I2C SPI	2 g	6 g	-2 g	3.6 V	2.16 V	640 Hz	10 Hz	340 LSB/g 1024 LSB/g
STMicroelectronics LIS3DHTR		Adjustable Bandwidth Selectable Scale Temperature Sensor	85 °C	-40 C	16-VFLGA				Digital	Surface Mount	Z	Y	X	16-LGA (3x3)	I2C SPI		2 g 4 g 8 g 16 g		3.6 V	1.71 V	625 Hz	0.5 Hz	83 LSB/g 1000 LSB/g
STMicroelectronics LIS3LV02DQ		Adjustable Bandwidth Selectable Scale	85 °C	-40 C	28-QFN Exposed Pad				Digital	Surface Mount	Z	Y	X	28-QFPN (7x7)	I2C SPI	2 g	6 g	-2 g	3.6 V	2.16 V	640 Hz	10 Hz	340 LSB/g 1024 LSB/g

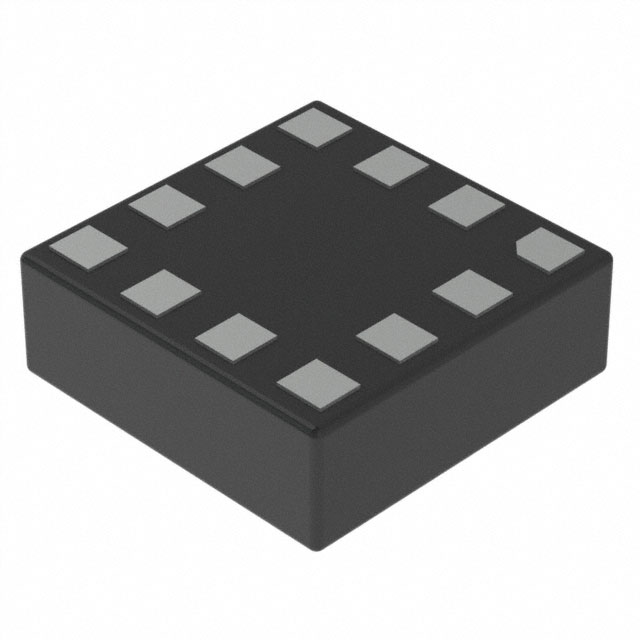

STMicroelectronics LIS3MDLTR		Selectable Scale	85 °C	-40 C	12-VFLGA					Surface Mount	Z	Y	X	12-LGA (2x2)	I2C SPI				3.6 V	1.9 V				0.4 mT 0.8 mT 1.2 mT 1.6 mT	Magnetoresistive	270 µA	16 b
STMicroelectronics LIS3DSHTR		Adjustable Bandwidth Selectable Scale Temperature Sensor	85 °C	-40 C	16-VFLGA				Digital	Surface Mount	Z	Y	X	16-LGA (3x3)	I2C SPI		2 g 4 g 6 g 8 g 16 g		3.6 V	1.71 V	800 Hz	1.56 Hz	1369 LSB/g 16666 LSB/g
STMicroelectronics LIS3DETR		Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor	85 °C	-40 C	16-VFLGA				Digital	Surface Mount	Z	Y	X	16-LGA (3x3)	I2C SPI		2 g 4 g 8 g 16 g		3.6 V	1.71 V	672 Hz	0.5 Hz	5 LSB/g 64 LSB/g
STMicroelectronics STEVAL-MKI137V1									Sensor																			DIL24	Unico	Professional MEMS Tool	Board(s)	LIS3MDL	Magnetometer
STMicroelectronics LIS3L02AQ5	333 mV/g 1000 mV/g	Adjustable Bandwidth Selectable Scale	85 °C	-40 C	44-QFN			1.5 kHz	Analog	Surface Mount	Z	Y	X	44-QFN-EP (7x7)	Analog Voltage	2 g	6 g	-2 g	3.6 V	2.4 V
STMicroelectronics LIS3DSH		Adjustable Bandwidth Selectable Scale Temperature Sensor	85 °C	-40 C	16-VFLGA				Digital	Surface Mount	Z	Y	X	16-LGA (3x3)	I2C SPI		2 g 4 g 6 g 8 g 16 g		3.6 V	1.71 V	800 Hz	1.56 Hz	1369 LSB/g 16666 LSB/g

Catalog

LIS3MDL adapter board for standard DIL24 socket

Description

The LIS3MDL is an ultralow-power high-performance 3-axis magnetic sensor with user-selectable full scales of ±4/±8/±12/±16 gauss. The self-test capability allows the user to check the functioning of the sensor in the final application. The device may be configured to generate interrupt signals for magnetic field detection. The LIS3MDL includes an I²C serial bus interface that supports standard and fast mode (100 kHz and 400 kHz) and SPI serial standard interfaces. The device is available in a small thin plastic, land grid array (LGA) package and is guaranteed to operate over an extended temperature range of -40°C to +85°C.
