MIC2205 Series
Manufacturer: Microchip Technology
Beta
⌘K
IC REG BUCK 1.8V 600MA 10MLF
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Topology | Frequency - Switching | Output Configuration | Number of Outputs | Synchronous Rectifier | Current - Output | Supplier Device Package | Package / Case | Voltage - Input (Max) [Max] | Function | Mounting Type | Voltage - Output (Min/Fixed) | Voltage - Input (Min) [Min] | Output Type | Output Type | Voltage - Output (Max) [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Utilized IC / Part | Outputs and Type | Outputs and Type | Board Type | Regulator Topology | Voltage - Output | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | -40 °C | 125 ¯C | Buck | 2 MHz | Positive | 1 | 600 mA | 10-MLF® (3x3) | 10-MLF® 10-VFDFN Exposed Pad | 5.5 V | Step-Down | Surface Mount | 1.8 V | 2.7 V | 1.81 mOhm | |||||||||||||
Microchip Technology | -40 °C | 125 ¯C | Buck | 2 MHz | Positive | 1 | 600 mA | 10-MLF® (3x3) | 10-MLF® 10-VFDFN Exposed Pad | 5.5 V | Step-Down | Surface Mount | 1 V | 2.7 V | Adjustable | 5.5 V | ||||||||||||
Microchip Technology | -40 °C | 125 ¯C | Buck | 2 MHz | Positive | 1 | 600 mA | 10-MLF® (3x3) | 10-MLF® 10-VFDFN Exposed Pad | 5.5 V | Step-Down | Surface Mount | 1.58 V | 2.7 V | 1.81 mOhm | |||||||||||||
Microchip Technology | -40 °C | 125 ¯C | Buck | 2 MHz | Positive | 1 | 600 mA | 10-MLF® (3x3) | 10-MLF® 10-VFDFN Exposed Pad | 5.5 V | Step-Down | Surface Mount | 1 V | 2.7 V | Adjustable | 5.5 V | ||||||||||||
Microchip Technology | -40 °C | 125 ¯C | Buck | 2 MHz | Positive | 1 | 600 mA | 10-MLF® (3x3) | 10-MLF® 10-VFDFN Exposed Pad | 5.5 V | Step-Down | Surface Mount | 1.5 V | 2.7 V | 1.81 mOhm | |||||||||||||
Microchip Technology | -40 °C | 125 ¯C | Buck | 2 MHz | Positive | 1 | 600 mA | 10-MLF® (3x3) | 10-MLF® 10-VFDFN Exposed Pad | 5.5 V | Step-Down | Surface Mount | 1.38 V | 2.7 V | 1.81 mOhm | |||||||||||||
Microchip Technology | -40 °C | 125 ¯C | Buck | 2 MHz | Positive | 1 | 600 mA | 10-MLF® (3x3) | 10-MLF® 10-VFDFN Exposed Pad | 5.5 V | Step-Down | Surface Mount | 1.85 V | 2.7 V | 1.81 mOhm | |||||||||||||

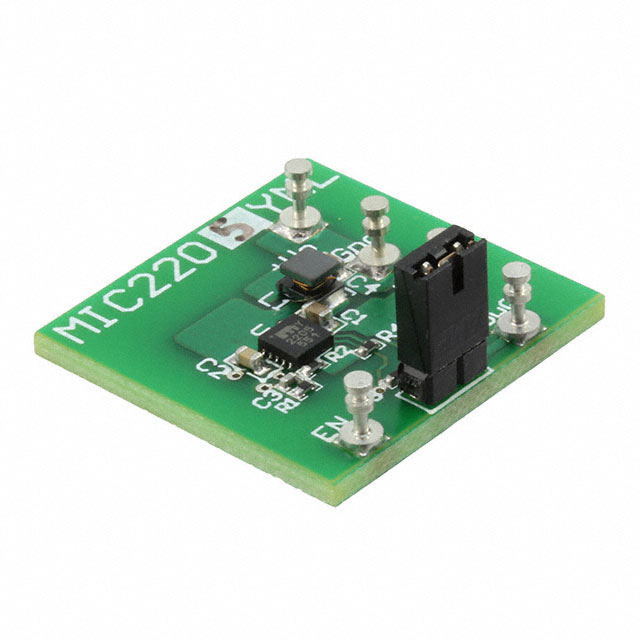

 Microchip Technology | 2 MHz | 600 mA | 2.7 V | 5.5 V | Board(s) | MIC2205 | Non-Isolated | 1 | Fully Populated | Buck | 1.8 V | DC/DC Step Down | ||||||||||||||||
Microchip Technology | -40 °C | 125 ¯C | Buck | 2 MHz | Positive | 1 | 600 mA | 10-MLF® (3x3) | 10-MLF® 10-VFDFN Exposed Pad | 5.5 V | Step-Down | Surface Mount | 1.5 V | 2.7 V | 1.81 mOhm |
