C6348 Series

Catalog

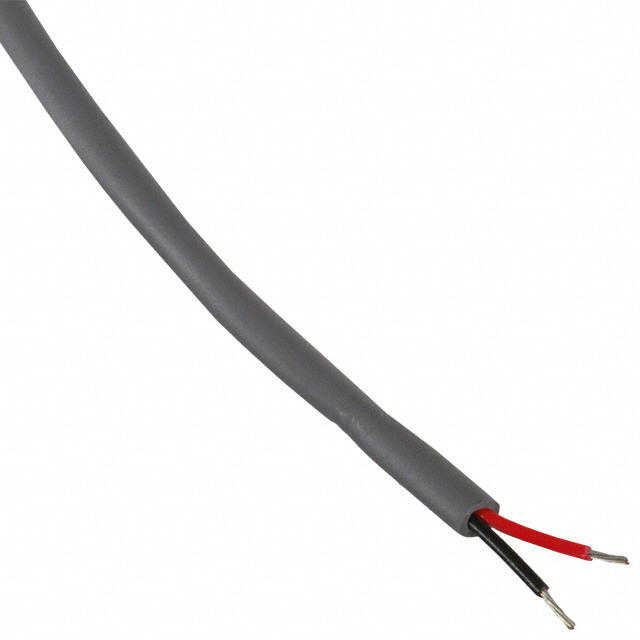

CABLE 2COND 22AWG GRAY

Part	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Length	Length	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ratings	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Wire Gauge	Jacket Color	Conductor Material	Length	Spool Size	Spool Size
Prysmian Group C6348A.18.10	0.381 mm	0.015 in	152.4 m	500 ft	Communication Control	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30 AWG	7	300 VDC	ASTM B-33	2	3.3 mm	0.13 in	Multi-Conductor	22 AWG	Gray	Copper Annealed Tinned
Prysmian Group C6348A.46.10	0.381 mm	0.015 in			Communication Control	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30 AWG	7	300 VDC	ASTM B-33	2	3.3 mm	0.13 in	Multi-Conductor	22 AWG	Gray	Copper Annealed Tinned	Enter Number of Feet in Order Quantity
Prysmian Group C6348A.41.10	0.381 mm	0.015 in	304.8 m	1000 ft	Communication Control	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30 AWG	7	300 VDC	ASTM B-33	2	3.3 mm	0.13 in	Multi-Conductor	22 AWG	Gray	Copper Annealed Tinned
Prysmian Group C6348A.46.10	0.381 mm	0.015 in			Communication Control	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30 AWG	7	300 VDC	ASTM B-33	2	3.3 mm	0.13 in	Multi-Conductor	22 AWG	Gray	Copper Annealed Tinned	Enter Number of Feet in Order Quantity	5000 ft	1524 m
Prysmian Group C6348A.21.10	0.381 mm	0.015 in	15.24 m 304.8 m	50 ft 1000 ft	Communication Control	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30 AWG	7	300 VDC	ASTM B-33	2	3.3 mm	0.13 in	Multi-Conductor	22 AWG	Gray	Copper Annealed Tinned
Prysmian Group C6348A.18.10	0.381 mm	0.015 in	152.4 m	500 ft	Communication Control	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30 AWG	7	300 VDC	ASTM B-33	2	3.3 mm	0.13 in	Multi-Conductor	22 AWG	Gray	Copper Annealed Tinned
Prysmian Group C6348A.30.10	0.381 mm	0.015 in	304.8 m	1000 ft	Communication Control	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30 AWG	7	300 VDC	ASTM B-33	2	3.3 mm	0.13 in	Multi-Conductor	22 AWG	Gray	Copper Annealed Tinned
Prysmian Group C6348A.21.10	0.381 mm	0.015 in	15.24 m 304.8 m	50 ft 1000 ft	Communication Control	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30 AWG	7	300 VDC	ASTM B-33	2	3.3 mm	0.13 in	Multi-Conductor	22 AWG	Gray	Copper Annealed Tinned
