300 mA very low quiescent current linear regulator IC
| Part | Current - Supply (Max) [Max] | Supplier Device Package | Package / Case | Number of Regulators | Protection Features | Current - Output | Voltage Dropout (Max) | Voltage - Output (Min/Fixed) | Mounting Type | Voltage - Input (Max) [Max] | Output Configuration | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | PSRR [Min] | PSRR [Max] | PSRR | Voltage Dropout (Max) [Max] | Supplier Device Package [y] | Supplier Device Package [x] | Current - Quiescent (Iq) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 130 µA | 4-DFN (1x1) | 4-XDFN Exposed Pad | 1 | Over Current Over Temperature Soft Start | 300 mA | 0.33 V | 1.2 V | Surface Mount | 5.5 V | Positive | Enable | -40 C | 125 °C | 55 dB | 80 dB | |||||

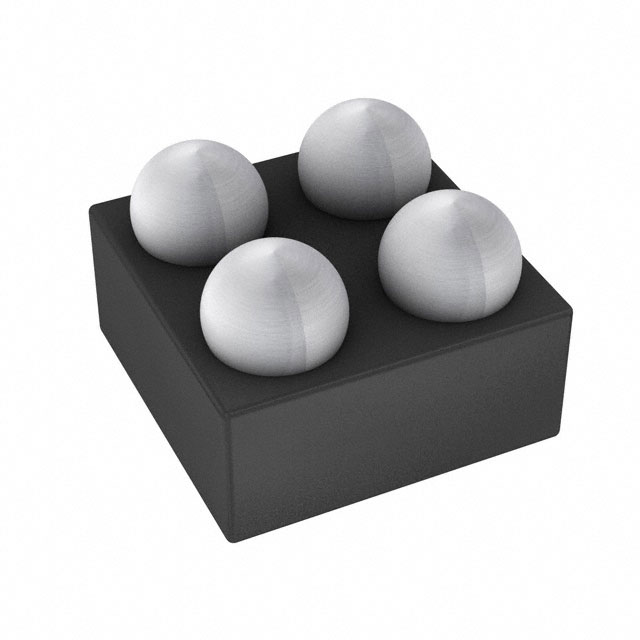

 STMicroelectronics | 85 µA | 4-FlipChip | 4-UFBGA FCBGA | 1 | Over Current Over Temperature Soft Start | 300 mA | 1 V | Surface Mount | 5.5 V | Positive | Enable | -40 C | 125 °C | 62 dB | 0.3 V | 0.79 | 0.79 | 50 çA | |||
 STMicroelectronics | 4-DFN (1x1) | 4-XDFN Exposed Pad | 1 | Over Current Over Temperature Soft Start | 300 mA | 0.33 V | 1.05 V | Surface Mount | 5.5 V | Positive | Enable | -40 C | 125 °C | 55 dB | 80 dB | ||||||
 STMicroelectronics | 4-DFN (1x1) | 4-XDFN Exposed Pad | 1 | Over Current Over Temperature Soft Start | 300 mA | 0.33 V | 2.8 V | Surface Mount | 5.5 V | Positive | Enable | -40 C | 125 °C | 55 dB | 80 dB | ||||||
STMicroelectronics | 4-DFN (1x1) | 4-XDFN Exposed Pad | 1 | Over Current Over Temperature Soft Start | 300 mA | 0.33 V | 2.8 V | Surface Mount | 5.5 V | Positive | Enable | -40 C | 125 °C | 55 dB | 80 dB | ||||||
 STMicroelectronics | 4-DFN (1x1) | 4-XDFN Exposed Pad | 1 | Over Current Over Temperature Soft Start | 300 mA | 0.33 V | 3.3 V | Surface Mount | 5.5 V | Positive | Enable | -40 C | 125 °C | 55 dB | 80 dB | ||||||
STMicroelectronics | 130 µA | 4-DFN (1x1) | 4-XDFN Exposed Pad | 1 | Over Current Over Temperature | 300 mA | 0.33 V | 1.2 V | Surface Mount | 5.5 V | Positive | Enable Soft Start | -40 C | 125 °C | 55 dB | 80 dB | |||||
STMicroelectronics | 4-DFN (1x1) | 4-XDFN Exposed Pad | 1 | Over Current Over Temperature Soft Start | 300 mA | 0.33 V | 1.8 V | Surface Mount | 5.5 V | Positive | Enable | -40 C | 125 °C | 55 dB | 80 dB | ||||||
STMicroelectronics | 4-DFN (1x1) | 4-XDFN Exposed Pad | 1 | Over Current Over Temperature Soft Start | 300 mA | 0.33 V | 1.8 V | Surface Mount | 5.5 V | Positive | Enable | -40 C | 125 °C | 55 dB | 80 dB | ||||||
STMicroelectronics | 85 µA | 4-FlipChip | 4-UFBGA FCBGA | 1 | Over Current Over Temperature Soft Start | 300 mA | 3.3 V | Surface Mount | 5.5 V | Positive | Enable | -40 C | 125 °C | 62 dB | 0.3 V | 0.79 | 0.79 | 50 çA |
Description
AI
The LD39030 high accuracy voltage regulator provides 300 mA of maximum current from an input voltage ranging from 1.5 V to 5.5 V, with a typical dropout voltage of 300 mV.
It is available in DFN4 1x1 package, allowing the maximum space saving.
The device is stabilized with a ceramic capacitor on the output. The ultra low drop voltage, low quiescent current and low noise features, together with the internal soft-start circuit, make the LD39030 suitable for low power battery-operated applications.
An enable logic control function puts the LD39030 in shutdown mode allowing a total current consumption lower than 0.1 µA. Constant current and thermal protection are provided.
