AZ2704-2A Series
Manufacturer: American Zettler
Beta
⌘K

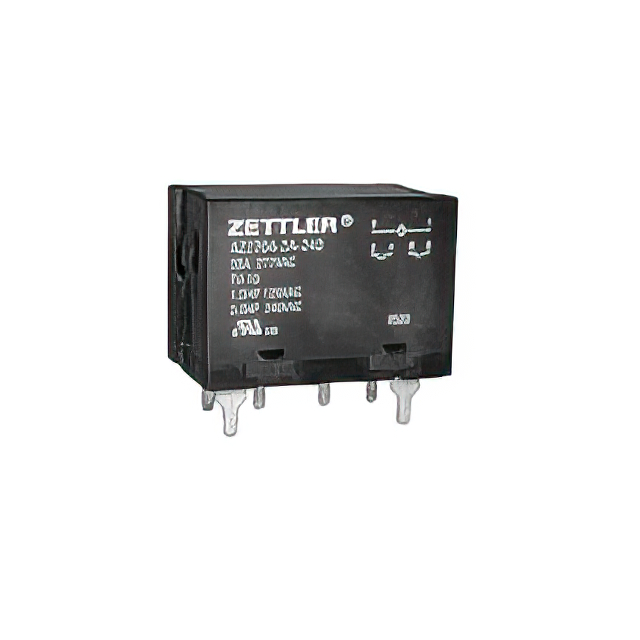

RELAY GEN PURPOSE DPST 30A 120V
| Part | Coil Resistance | Load - Max Switching | Termination Style | Switching Voltage [Max] | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Contact Material | Contact Form | Coil Insulation | Approval Agency | Coil Voltage | Contact Rating (Current) | Operate Time | Release Time | Must Release Voltage | Coil Current | Must Operate Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 5217 Ohms | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 85 °C | -40 C | Non Latching | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Class B | CUR TUV UL | 120 VAC | 30 A | 30 ms | 30 ms | 18 VAC | 23 mA | 96 VAC | Through Hole |
 American Zettler | 75 Ohms | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 105 ░C | -40 C | Non Latching | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Class F | CUR TUV UL | 12 VDC | 30 A | 30 ms | 30 ms | 0.6 VDC | 160 mA | 9 VDC | Through Hole |
American Zettler | 1.2 kOhms | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 105 ░C | -40 C | Non Latching | Silver Tin Oxide (AgSnO) | DPST-NO (2 Form A) | Class F | CUR TUV UL | 48 VDC | 30 A | 30 ms | 30 ms | 2.4 VDC | 40 mA | 36 VDC | Through Hole |
 American Zettler | 75 Ohms | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 85 °C | -40 C | Non Latching | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Class B | CUR TUV UL | 12 VDC | 30 A | 30 ms | 30 ms | 0.6 VDC | 160 mA | 9 VDC | Through Hole |
American Zettler | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 105 ░C | -40 C | Non Latching | Silver Tin Oxide (AgSnO) | DPST-NO (2 Form A) | Class F | CUR TUV UL | 220 VAC/DC | 30 A | 30 ms | 30 ms | 33 VAC | 10 mA | 176 VAC | Through Hole | |
American Zettler | 1.2 kOhms | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 85 °C | -40 C | Non Latching | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Class B | CUR TUV UL | 48 VAC | 30 A | 30 ms | 30 ms | 7.2 VAC | 40 mA | 38.4 VAC | Through Hole |
American Zettler | 75 Ohms | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 85 °C | -40 C | Non Latching | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Class B | CUR TUV UL | 12 VDC | 30 A | 30 ms | 30 ms | 0.6 VDC | 160 mA | 9 VDC | Through Hole |
American Zettler | 6.3 kOhms | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 105 ░C | -40 C | Non Latching | Silver Tin Oxide (AgSnO) | DPST-NO (2 Form A) | Class F | CUR TUV UL | 110 VDC | 30 A | 30 ms | 30 ms | 5.5 VDC | 17.5 mA | 82.5 VDC | Through Hole |
American Zettler | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 85 °C | -40 C | Non Latching | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Class B | CUR TUV UL | 220 VAC/DC | 30 A | 30 ms | 30 ms | 33 VAC | 10 mA | 176 VAC | Through Hole | |
American Zettler | 1.2 kOhms | 840 W 8310 VA | PC Pin | 150 VDC 400 VAC | General Purpose | 85 °C | -40 C | Non Latching | Silver Cadmium Oxide (AgCdO) | DPST-NO (2 Form A) | Class B | CUR TUV UL | 48 VDC | 30 A | 30 ms | 30 ms | 2.4 VDC | 40 mA | 36 VDC | Through Hole |
