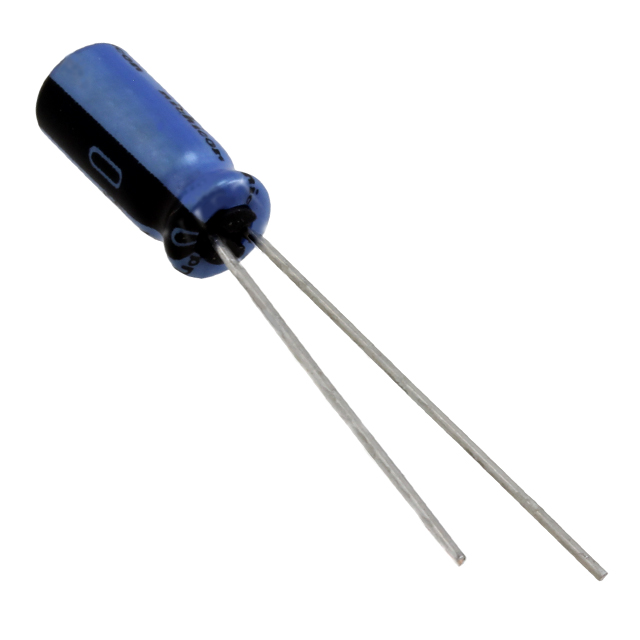

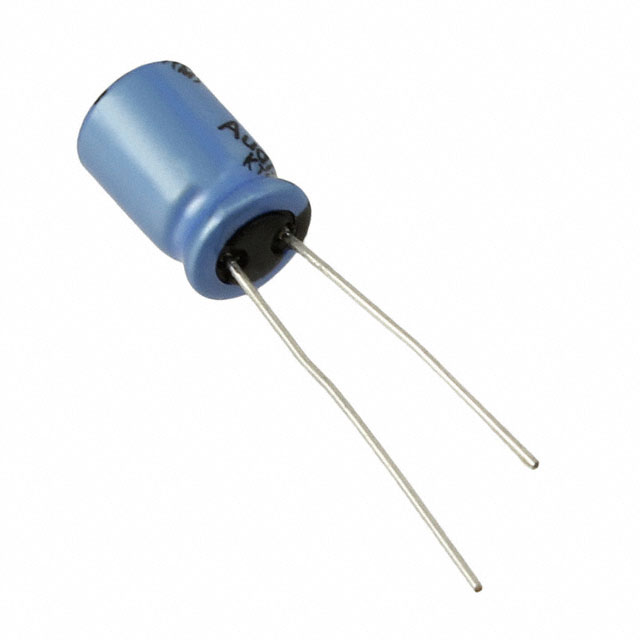

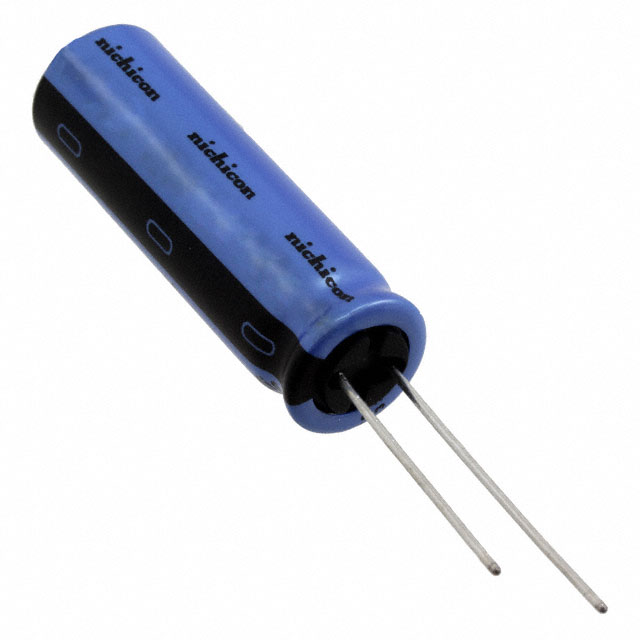

UKT Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 6800UF 16V

Part	Tolerance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	Capacitance	Voltage - Rated	Lifetime @ Temp.	Ratings	Mounting Type	Polarization	Lead Spacing	Lead Spacing	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]
Nichicon UKT1C682MHD	20 %	1.78 A	1.299 in	33 mm	6800 µF	16 V	1000 Hrs	AEC-Q200	Through Hole	Polar	0.295 in	7.5 mm	Audio	0.63 in	16 mm	2.047 A	-55 C	105 ░C	Can Radial
Nichicon UKT1E470MDD	20 %	83 mA	11 mm		47 µF	25 VDC	1000 Hrs		Through Hole	Polar	0.079 in	2 mm	Audio	0.197 in	5 mm	166 mA	-55 C	105 ░C	Can Radial	0.433 in
Nichicon UKT1A332MHD	20 %	1.05 A			3.3 mF	10 V	1000 Hrs		Through Hole	Polar	0.197 "	5 mm	Audio	0.492 in	12.5 mm		-55 C	105 ░C	Can Radial		0.984 in	25 mm
Nichicon UKT0J472MHD	20 %	1.12 A			4700 µF	6.3 VDC	1000 Hrs		Through Hole	Polar	0.197 "	5 mm	Audio	0.492 in	12.5 mm	1.288 A	-55 C	105 ░C	Can Radial		0.984 in	25 mm
Nichicon UKT1C331MPD1TD	20 %	265 mA			330 µF	16 V	1000 Hrs		Through Hole		0.138 in	3.5 mm	Audio	0.315 in	8 mm	397.5 mA	-55 C	105 ░C	Can Radial			0.492 in	12.5 mm
Nichicon UKT1E153MRD	20 %	2.75 A	51.5 mm			25 VDC	1000 Hrs		Through Hole	Polar	0.394 in	10 mm	Audio	0.866 "	22 mm	3.163 A	-55 C	105 ░C	Can Radial	2.028 in
Nichicon UKT1A222MHD1TO	20 %	810 mA			2200 µF	10 V	1000 Hrs		Through Hole		0.197 "	5 mm	Audio	0.492 in	12.5 mm	931.5 mA	-55 C	105 ░C	Can Radial					0.866 in	22 mm
Nichicon UKT1A102MPD1TD	20 %	500 mA	0.689 in		1000 µF	10 V	1000 Hrs		Through Hole		0.197 "	5 mm	Audio	0.394 in	10 mm	575 mA	-55 C	105 ░C	Can Radial							17.5 mm
Nichicon UKT1V222MHD	20 %				2200 µF	35 V	1000 Hrs	AEC-Q200	Through Hole		0.197 "	5 mm	Audio	0.492 in	12.5 mm	1.449 A	-55 C	105 ░C	Can Radial		1.575 in	40 mm
Nichicon UKT1V100MDD	20 %	41 mA	11 mm		10 µF	35 V	1000 Hrs		Through Hole	Polar	0.079 in	2 mm	Audio	0.197 in	5 mm		-55 C	105 ░C	Can Radial	0.433 in
