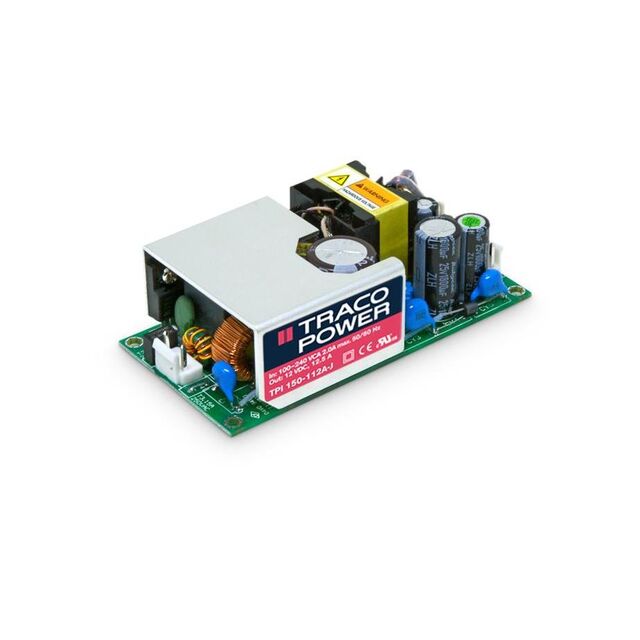

TPI 150 Series
Manufacturer: Traco Power
Beta
⌘K
SWITCHING POWER SUPPLIES 150W AC/DC POWER SUPPLY IN A CHASSIS MOUNT OPEN FRAME
| Part | Minimum Load Required | Voltage - Output 1 | Features | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Isolation | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Power (Watts) | Applications | Efficiency | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 12 V | Adjustable Output PFC Universal Input | 80 ¯C | -40 °C | Open Frame | 3000 V | 12.5 A | 85 VAC 120 VDC | 264 VAC 370 VDC | 101.6 mm | 50.8 mm | 4 " | 1.16 in | 29.5 mm | 2 in | 1 | 150 W | ITE (Commercial) | 91 % | Chassis Mount | CB CE cURus | |
Traco Power | 15 V | Adjustable Output PFC Universal Input | 80 ¯C | -40 °C | Open Frame | 3000 V | 10 A | 85 VAC 120 VDC | 264 VAC 370 VDC | 101.6 mm | 50.8 mm | 4 " | 1.16 in | 29.5 mm | 2 in | 1 | 150 W | ITE (Commercial) | 92 % | Chassis Mount | CB CE cURus |
