JJL Series

Manufacturer: Nichicon

Catalog

SUPERCAPACITORS / ULTRACAPACITORS 2.5VOLTS 1500FARADS SCREW TERMINAL

Part	Package / Case	Voltage - Rated	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Tolerance	Lifetime @ Temp.	Mounting Type	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]

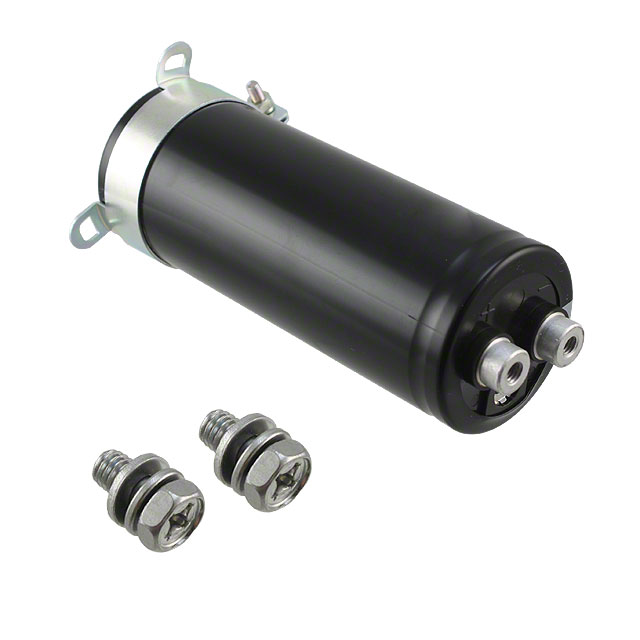

Nichicon JJL0E158MSEF	Radial Can - Screw Terminals	2.5 V	1.8 mOhm	-25 °C	60 °C	5.433 in	138 mm	20 %	2000 Hrs	Chassis Mount	Screw Terminals	2.008 in	51 mm	1500 F	1.024 in	26 mm
Nichicon JJL0E208MSEFBN	Radial Can - Screw Terminals	2.5 V	1.5 Ohm	-25 °C	60 °C	6.693 in		20 %	2000 Hrs	Chassis Mount	Screw Terminals	2.008 in	51 mm	2000 F	1.024 in	26 mm	170 mm
Nichicon JJL0E208MSEFBB	Radial Can - Screw Terminals	2.5 V	1.5 Ohm	-25 °C	60 °C	6.693 in		20 %	2000 Hrs	Chassis Mount	Screw Terminals	2.008 in	51 mm	2000 F	1.024 in	26 mm	170 mm
