TES 1 Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 1W DC/DC CONVERTER ISOLATED, UNREGULATED IN A PCB MOUNT PLASTIC CASE

Part	Package / Case	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Voltage - Output 1	Features	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Power (Watts)	Voltage - Output 2	Applications	Current - Output (Max)	Current - Output (Max)
Traco Power TES 1-1223	10-SMD Module 6 Leads	1.5 kV	0.64 "	7 mm	0.28 "	0.31 in	16.2 mm	8 mm	13.2 V	79 %	Surface Mount	15 V	SCP	10.8 V	35 mA	35 mA	Isolated Module	90 °C	-40 °C	2	1.1 W	-15 V	ITE (Commercial)

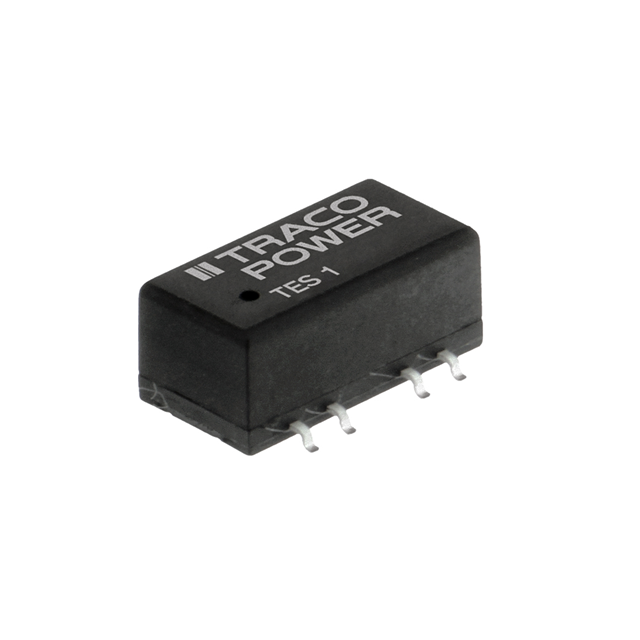

Traco Power TES 1-0511	8-SMD Module 5 Leads	1.5 kV	0.54 in	7 mm	0.28 "	0.31 in	13.7 mm	8 mm	5.5 V	78 %	Surface Mount	5 V	SCP	4.5 V	200 mA		Isolated Module	90 °C	-40 °C	1			ITE (Commercial)
Traco Power TES 1-1213V	12-SMD Module 10 Leads	3000 V	0.64 "	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	13.2 V	81 %	Surface Mount	15 V	SCP	10.8 V	67 mA		Isolated Module	85 °C	-40 °C	1			ITE (Commercial)
Traco Power TES 1-1221V	12-SMD Module 10 Leads	3000 V	0.64 "	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	13.2 V	76 %	Surface Mount	5 V	SCP	10.8 V			Isolated Module	85 °C	-40 °C	2		-5 V	ITE (Commercial)	100 mA	100 mA
Traco Power TES 1-0521	8-SMD Module 5 Leads	1.5 kV	0.54 in	7 mm	0.28 "	0.31 in	13.7 mm	8 mm	5.5 V	74 %	Surface Mount	5 V	SCP	4.5 V			Isolated Module	90 °C	-40 °C	2		-5 V	ITE (Commercial)	100 mA	100 mA
Traco Power TES 1-0521V	12-SMD Module 10 Leads	3000 V	0.64 "	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	5.5 V	75 %	Surface Mount	5 V	SCP	4.5 V			Isolated Module	85 °C	-40 °C	2		-5 V	ITE (Commercial)	100 mA	100 mA
Traco Power TES 1-1213	8-SMD Module 5 Leads	1.5 kV	0.54 in	7 mm	0.28 "	0.31 in	13.7 mm	8 mm	13.2 V	80 %	Surface Mount	15 V	SCP	10.8 V	65 mA		Isolated Module	90 °C	-40 °C	1	975 mW		ITE (Commercial)

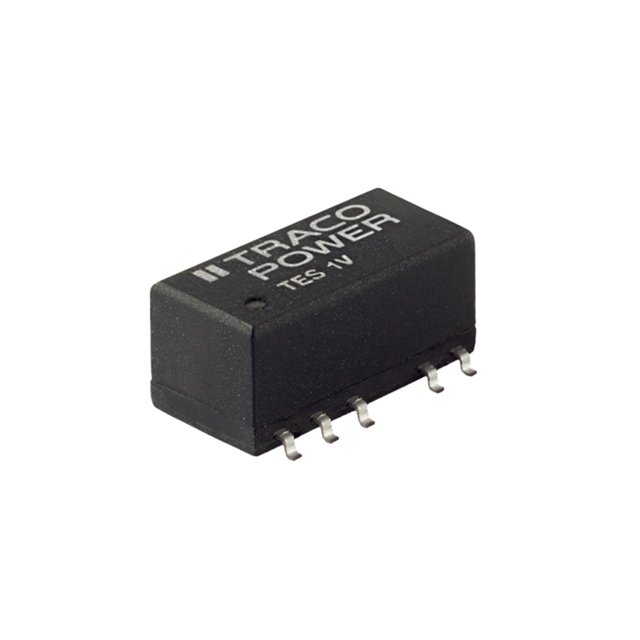

Traco Power TES 1-1212V	12-SMD Module 10 Leads	3000 V	0.64 "	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	13.2 V	80 %	Surface Mount	12 V	SCP	10.8 V	84 mA		Isolated Module	85 °C	-40 °C	1			ITE (Commercial)
Traco Power TES 1-2423V	12-SMD Module 10 Leads	3000 V	0.64 "	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	26.4 V	79 %	Surface Mount	15 V	SCP	21.6 V	34 mA	34 mA	Isolated Module	85 °C	-40 °C	2		-15 V	ITE (Commercial)
Traco Power TES 1-0510V	12-SMD Module 10 Leads	3000 V	0.64 "	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	5.5 V	72 %	Surface Mount	3.3 V	SCP	4.5 V	260 mA		Isolated Module	85 °C	-40 °C	1	858 mW		ITE (Commercial)
