A3C-50DA Series

Catalog

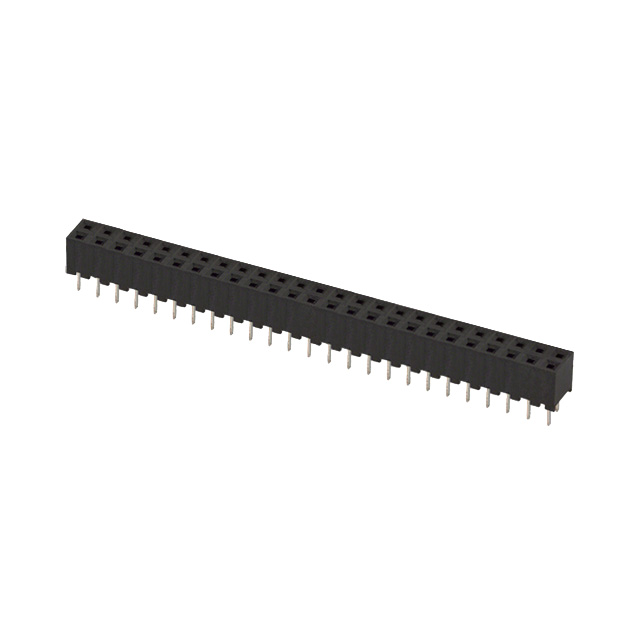

CONN RCPT 50POS 0.079 GOLD PCB

Part	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Fastening Type	Style	Contact Finish - Post	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Height	Insulation Height	Mated Stacking Heights	Insulation Color	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Number of Positions	Voltage Rating	Termination	Contact Type	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Post
Hirose Electric Co Ltd A3C-50DA-2DSA(71)	Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	General Purpose Telecommunications	Push-Pull	Board to Board Cable	Tin	Gold	-55 C	85 °C	Through Hole	0.165 in	4.2 mm	5.1 mm 6 mm	Black	2	8 µin	0.203 µm	UL94 V-0	0.118 in	3 mm	2 mm	0.079 in	All	50	200 VAC	Solder	Female Socket	Receptacle	0.079 "	2 mm
Hirose Electric Co Ltd A3C-50DA-2DSA	Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	General Purpose Telecommunications	Push-Pull	Board to Board Cable	Tin	Gold	-55 C	85 °C	Through Hole	0.165 in	4.2 mm	5.1 mm 6 mm	Black	2	8 µin	0.203 µm	UL94 V-0	0.118 in	3 mm	2 mm	0.079 in	All	50	200 VAC	Solder	Female Socket	Receptacle	0.079 "	2 mm
Hirose Electric Co Ltd A3C-50DA-2DSC(71)	Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	General Purpose Telecommunications	Push-Pull	Board to Board Cable	Tin	Gold	-55 C	85 °C	Through Hole	0.165 in	4.2 mm	5.1 mm 6 mm	Black	2	8 µin	0.203 µm	UL94 V-0		0.079 in	2 mm	0.079 in	All	50	200 VAC	Solder	Female Socket	Receptacle	0.079 "	2 mm	2 mm
Hirose Electric Co Ltd A3C-50DA-2DSE	Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	General Purpose Telecommunications	Push-Pull	Board to Board Cable	Tin	Gold	-55 C	85 °C	Through Hole	0.165 in	4.2 mm	5.1 mm 6 mm	Black	2	8 µin	0.203 µm	UL94 V-0	0.05 "	1.27 mm	2 mm	0.079 in	All	50	200 VAC	Solder	Female Socket	Receptacle	0.079 "	2 mm
Hirose Electric Co Ltd A3C-50DA-2DSE(71)	Square	Phosphor Bronze	Polybutylene Terephthalate (PBT)	39.4 çin	1 çm	General Purpose Telecommunications	Push-Pull	Board to Board Cable	Tin	Gold	-55 C	85 °C	Through Hole	0.165 in	4.2 mm	5.1 mm 6 mm	Black	2	8 µin	0.203 µm	UL94 V-0	0.05 "	1.27 mm	2 mm	0.079 in	All	50	200 VAC	Solder	Female Socket	Receptacle	0.079 "	2 mm
