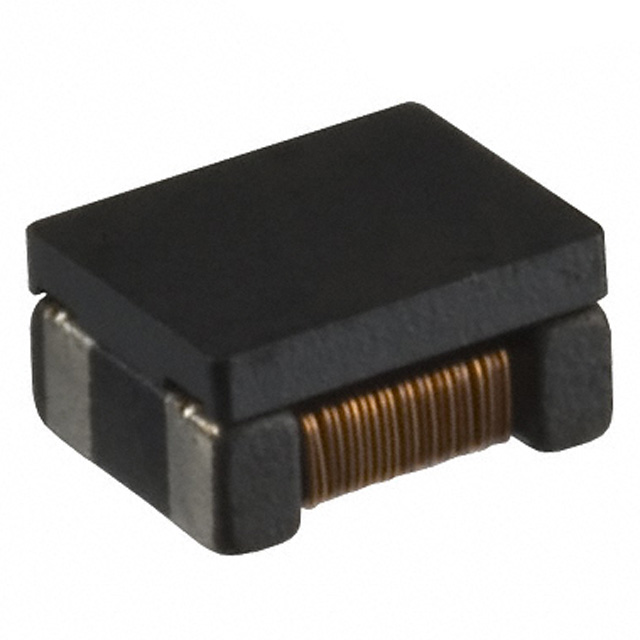

ACM Series

Catalog

COMMON MODE CHOKES / FILTERS 900OHMS 50VDC 60MOHM 2A 180MM

Part	Current Rating (Max) [Max]	Height (Max) [z]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Filter Type	Impedance @ Frequency	Package / Case	Mounting Type	Number of Lines	Height (Max) [Max] [z]	Package / Case	Height (Max) [z]
TDK Corporation ACM4520-901-2P-T000	2.3 A	0.079 in 2 mm	85 °C	-40 C	60 mOhm	0.177 "	4.7 mm	4.5 mm	0.185 in	50 VDC	Power Line	900 Ohms	Horizontal 4 PC Pad	Surface Mount	2
TDK Corporation ACM4520-421-2P-TL000	2.4 A	0.079 in 2 mm	85 °C	-40 C	55 mOhm	0.177 "	4.7 mm	4.5 mm	0.185 in	50 VDC	Power Line	420 Ohms	Horizontal 4 PC Pad	Surface Mount	2
TDK Corporation ACM7060-301-2PL-TL01	5 A	3.5 mm	85 °C	-40 C	10 mOhm	0.236 "	7 mm	6 mm	0.276 "	80 V	Power Line	300 Ohms	Horizontal 4 PC Pad	Surface Mount	2	0.138 in
TDK Corporation ACM4520-142-2P-TL000	1.5 A	0.079 in 2 mm	85 °C	-40 C	80 mOhm	0.177 "	4.7 mm	4.5 mm	0.185 in	50 VDC	Power Line	1.4 kOhms	Horizontal 4 PC Pad	Surface Mount	2
TDK Corporation ACM2012-402-2P-T002	150 mA	1.3 mm	85 °C	-40 C		0.047 in	2 mm	1.2 mm	0.079 in	50 VDC	Signal Line		0805 (2012 Metric)	Surface Mount	2		4 PC Pad	0.051 in
TDK Corporation ACM2012-201-2P-T002	350 mA	1.3 mm	85 °C	-40 C	250 mOhm	0.047 in	2 mm	1.2 mm	0.079 in	50 VDC	Signal Line	200 Ohms	Horizontal 4 PC Pad	Surface Mount	2			0.051 in
TDK Corporation ACM4520-901-2P-TL000	2 A	0.079 in 2 mm	85 °C	-40 C	60 mOhm	0.177 "	4.7 mm	4.5 mm	0.185 in	50 VDC	Power Line	900 Ohms	Horizontal 4 PC Pad	Surface Mount	2
TDK Corporation ACM2012-361-2P-T002	220 mA	1.3 mm	85 °C	-40 C	500 mOhm	0.047 in	2 mm	1.2 mm	0.079 in	50 VDC	Signal Line	360 Ohms	Horizontal 4 PC Pad	Surface Mount	2			0.051 in
