LMH9126 Series

2.3-2.9 GHz differential to single-ended low-power amplifier with Integrated balun

Catalog

2.3-2.9 GHz differential to single-ended low-power amplifier with Integrated balun

Part	For Use With/Related Products	Type	Supplied Contents	Frequency [Min]	Frequency [Max]	Current - Supply	P1dB	Test Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	RF Type	Noise Figure	Supplier Device Package	Gain	Mounting Type

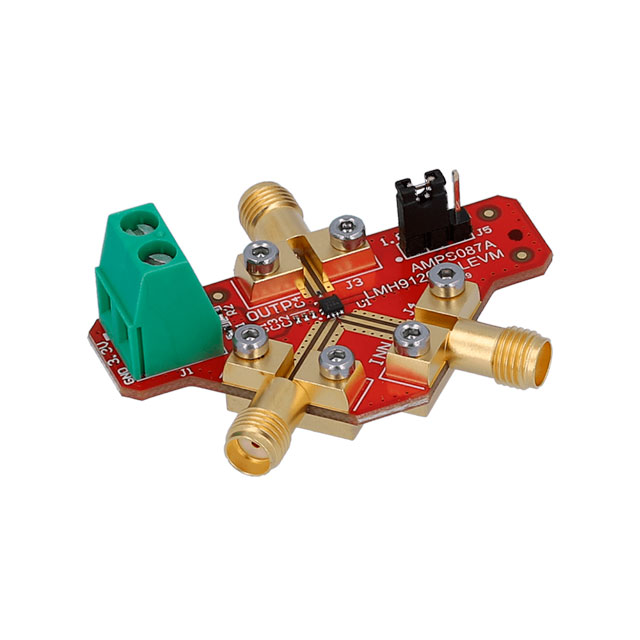

Texas Instruments LMH9126RRLEVM	LMH9126	Amplifier	Board(s)	2.3 GHz	2.9 GHz
Texas Instruments LMH9126IRRLR				2.3 GHz	2.9 GHz	114 mA	18 dBm	2.6 GHz	3.45 V	3.15 V	12-WFQFN Exposed Pad	General Purpose	3.5 dB	12-WQFN (2x2)	18 dBi	Surface Mount

Catalog

2.3-2.9 GHz differential to single-ended low-power amplifier with Integrated balun

Key Features

• Single-Channel, Differential Input to Single-Ended Output RF Gain Block Amplifier18-dB Typical Gain Across the Band3.5-dB Noise Figure35-dBm OIP318-dBm Output P1dB375-mW Power Consumption on 3.3-V Single SupplyUp to 105°C TCOperating TemperatureSingle-Channel, Differential Input to Single-Ended Output RF Gain Block Amplifier18-dB Typical Gain Across the Band3.5-dB Noise Figure35-dBm OIP318-dBm Output P1dB375-mW Power Consumption on 3.3-V Single SupplyUp to 105°C TCOperating Temperature

Description

The LMH9126 is high-performance, single-channel, differential input to single-ended output transmit RF gain block amplifier supporting 2.6-GHz center frequency band. The device is well suited to support requirements for the next generation 5G AAS or small cell applications while driving the input of a power amplifier (PA). The RF amplifier provides 18-dB typical gain with good linearity performance of 35-dBm output IP3, while maintaining less than 4-dB noise figure across the whole 1-dB bandwidth. The device is internally matched for 100-Ω differential input impedance providing easy interface with an RF-sampling or Zero-IF analog front-end (AFE) at the input. Also, the device is internally matched for 50-Ω single-ended output impedance required for easy interface with a post-amplifier, SAW filter, or PA. Operating on a single 3.3-V supply, the device consumes only 375 mW of active power making it suitable for high-density 5G massive MIMO applications. Also, the device is available in a space saving 2-mm × 2-mm, 12-pin QFN package. The device is rated for an operating temperature of up to 105°C to provide a robust system design. There is a 1.8-V JEDEC compliant power down pin available for fast power down and power up of the device suitable for time division duplex (TDD) systems. The LMH9126 is high-performance, single-channel, differential input to single-ended output transmit RF gain block amplifier supporting 2.6-GHz center frequency band. The device is well suited to support requirements for the next generation 5G AAS or small cell applications while driving the input of a power amplifier (PA). The RF amplifier provides 18-dB typical gain with good linearity performance of 35-dBm output IP3, while maintaining less than 4-dB noise figure across the whole 1-dB bandwidth. The device is internally matched for 100-Ω differential input impedance providing easy interface with an RF-sampling or Zero-IF analog front-end (AFE) at the input. Also, the device is internally matched for 50-Ω single-ended output impedance required for easy interface with a post-amplifier, SAW filter, or PA. Operating on a single 3.3-V supply, the device consumes only 375 mW of active power making it suitable for high-density 5G massive MIMO applications. Also, the device is available in a space saving 2-mm × 2-mm, 12-pin QFN package. The device is rated for an operating temperature of up to 105°C to provide a robust system design. There is a 1.8-V JEDEC compliant power down pin available for fast power down and power up of the device suitable for time division duplex (TDD) systems.
