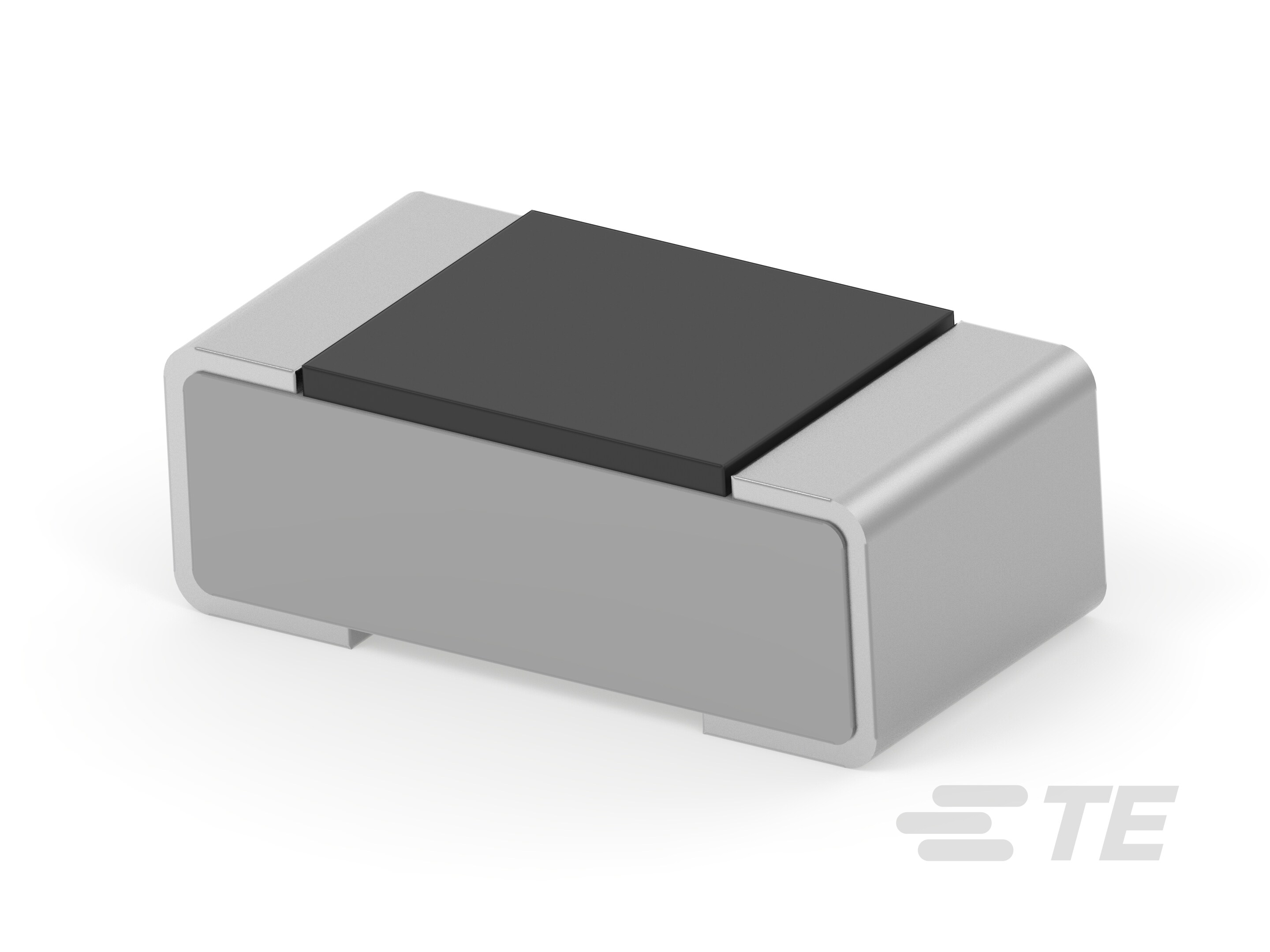

NEOHM CRGCQ Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SMD CHIP RESISTOR, 100 KOHM, ± 1%, 750 MW, 2010 [5025 METRIC], THICK FILM, GENERAL PURPOSE
| Part | Features | Package / Case | Supplier Device Package | Power (Watts) | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Composition | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Number of Terminations [custom] | Resistance | Temperature Coefficient | Size / Dimension [y] | Package / Case | Power (Watts) | Supplier Device Package | Ratings | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 2010 (5025 Metric) | 2010 | 3/4W | 0.75 W | 155 C | -55 C | 1 % | 5 mm | 0.098 in | 0.197 in | 2.5 mm | Thick Film | 0.026 in | 0.65 mm | 2 | 100 kOhms | 100 ppm/°C | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 2512 | 2512 | 1 W | 155 C | -55 C | 5 % | 6.35 mm | 0.126 in | 0.25 in | Thick Film | 0.026 in | 0.65 mm | 2 | 6.8 kOhms | 100 ppm/°C | 3.2 mm | 6332 Metric | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 1210 | 0.5 W | 155 C | -55 C | 1 % | 3.1 mm | 0.102 in | 0.122 " | 2.6 mm | Thick Film | 0.026 in | 0.65 mm | 2 | 220 Ohms | 100 ppm/°C | 3225 Metric | 0.5 W | 1210 | |||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 0402 (1005 Metric) | 0.063 W | 155 C | -55 C | 5 % | 1 mm | 0.02 in | 0.039 " | 0.5 mm | Thick Film | 0.016 in | 2 | 100 Ohms | 200 ppm/°C | 0.0625 W | 0402 | AEC-Q200 | 0.4 mm | |||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 1206 (3216 Metric) | 0.25 W | 155 C | -55 C | 1 % | 3.1 mm | 0.061 in | 0.122 " | 1.55 mm | Thick Film | 0.026 in | 0.65 mm | 2 | 220 Ohms | 100 ppm/°C | 0.25 W | 1206 | AEC-Q200 | |||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 0805 | 0.125 W | 155 C | -55 C | 5 % | 2 mm | 0.049 " | 0.079 in | 1.25 mm | Thick Film | 0.026 in | 0.65 mm | 2 | 680 kOhms | 100 ppm/°C | 0.125 W | 0805 | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 2512 | 2512 | 1 W | 155 C | -55 C | 5 % | 6.35 mm | 0.126 in | 0.25 in | Thick Film | 0.026 in | 0.65 mm | 2 | 150 Ohms | 100 ppm/°C | 3.2 mm | 6332 Metric | ||||||
TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 2512 | 2512 | 1 W | 155 C | -55 C | 1 % | 6.35 mm | 0.126 in | 0.25 in | Thick Film | 0.026 in | 0.65 mm | 2 | 100 Ohms | 200 ppm/°C | 3.2 mm | 6332 Metric | ||||||
 TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 1210 | 0.5 W | 155 C | -55 C | 5 % | 3.1 mm | 0.102 in | 0.122 " | 2.6 mm | Thick Film | 0.026 in | 0.65 mm | 2 | 220 Ohms | 100 ppm/°C | 3225 Metric | 0.5 W | 1210 | |||||
TE Connectivity AMP Connectors | Automotive AEC-Q200 Moisture Resistant | 2010 (5025 Metric) | 2010 | 3/4W | 0.75 W | 155 C | -55 C | 5 % | 5 mm | 0.098 in | 0.197 in | 2.5 mm | Thick Film | 0.026 in | 0.65 mm | 2 | 2.2 MOhms | 100 ppm/°C |
