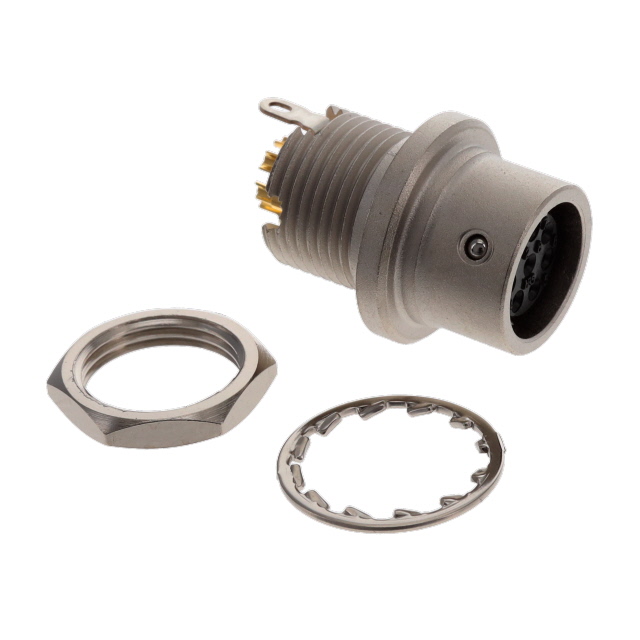

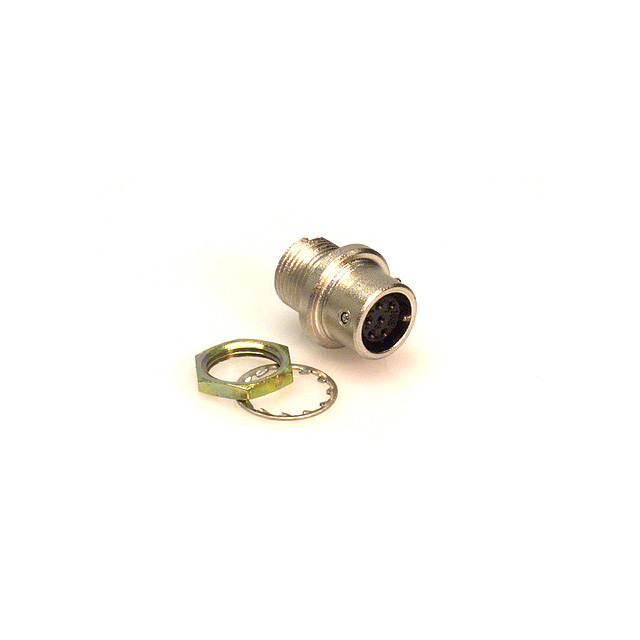

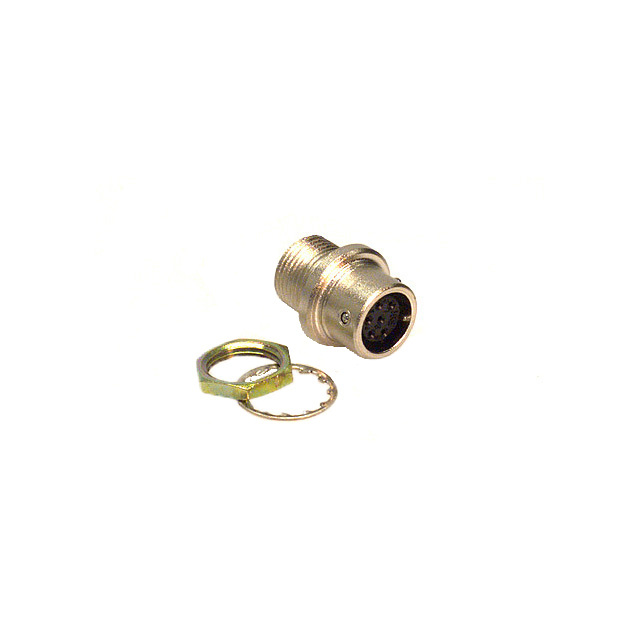

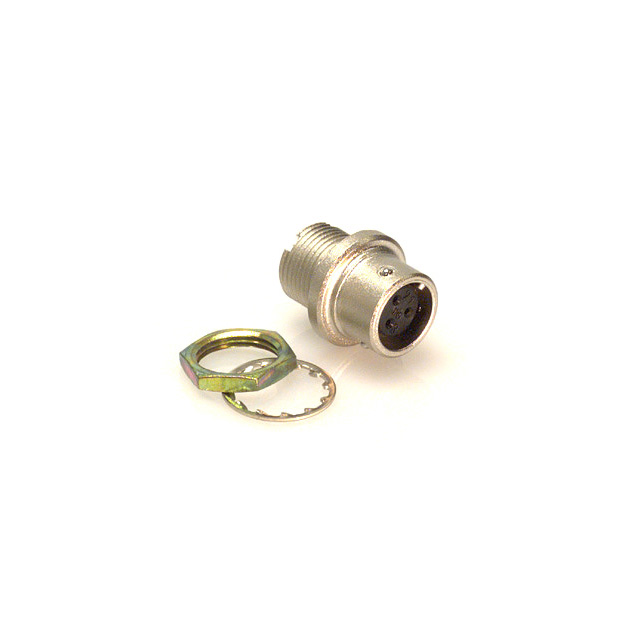

MXR-8RA Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT FMALE 6P GOLD SLDR CUP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Shell Finish | Color | Insert Material | Current Rating (Amps) | Connector Type | Number of Positions | Fastening Type | Contact Finish - Mating | Primary Material | Mounting Type | Material Flammability Rating | Shell Material | Shell Size - Insert | Contact Material | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 8 µin | 0.203 µm | Bulkhead - Rear Side Nut | 85 °C | -25 °C | Keyed | Nickel | Silver | Polybutylene Terephthalate (PBT) | 2 A | Receptacle Female Sockets | 6 | Push-Pull | Gold | Metal | Panel Mount | UL94 V-0 | Aluminum Alloy | 8 | Phosphor Bronze | Ground | 100 VAC 140 VDC |
 Hirose Electric Co Ltd | 8 µin | 0.203 µm | Bulkhead - Rear Side Nut | 85 °C | -25 °C | Keyed | Nickel | Silver | Polybutylene Terephthalate (PBT) | 2 A | Receptacle Female Sockets | 8 | Push-Pull | Gold | Metal | Panel Mount | UL94 V-0 | Aluminum Alloy | 8 | Phosphor Bronze | Ground | 100 VAC 140 VDC |
 Hirose Electric Co Ltd | Bulkhead - Rear Side Nut | Keyed | Receptacle Female Sockets | 6 | Push-Pull | Panel Mount | 8 | |||||||||||||||
 Hirose Electric Co Ltd | Bulkhead - Rear Side Nut | Keyed | Receptacle Female Sockets | Push-Pull | Panel Mount | 8 |
