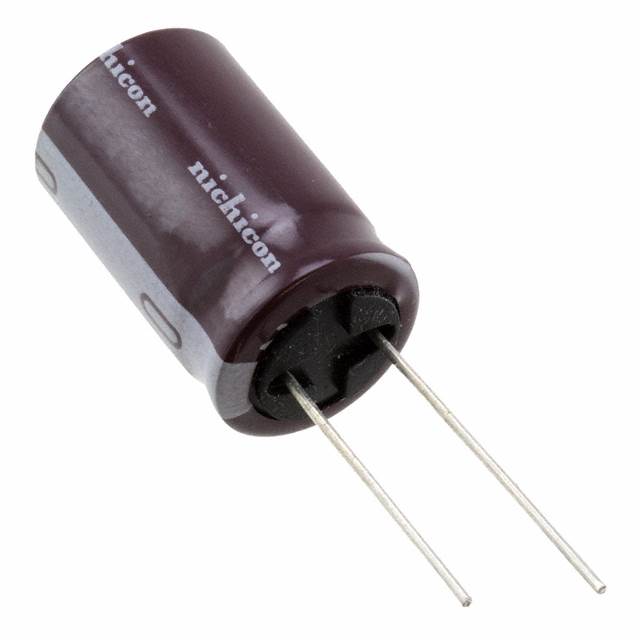

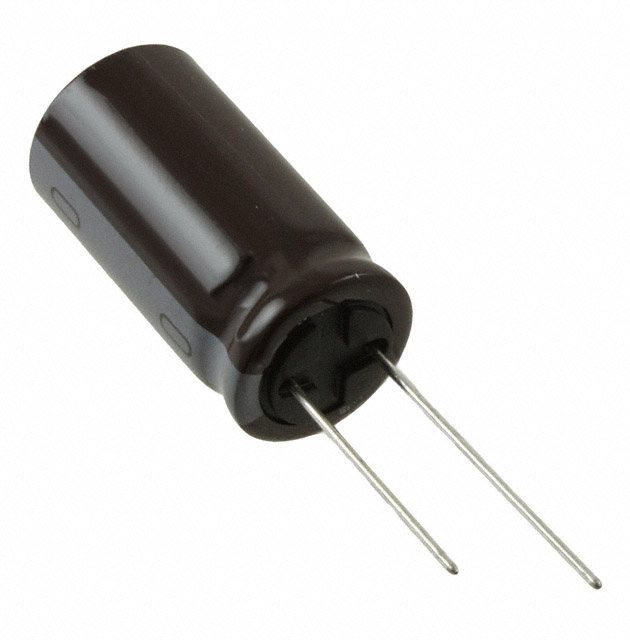

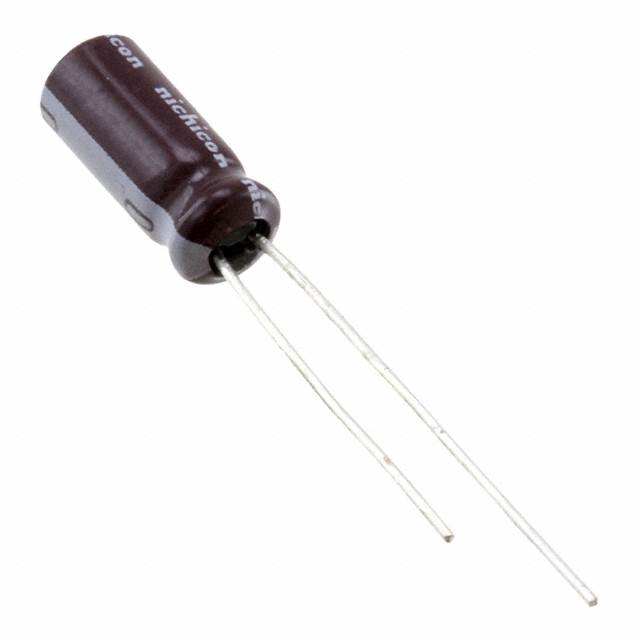

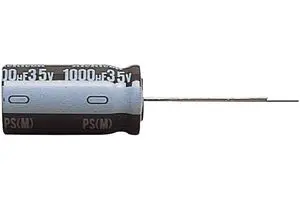

UPS Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 10UF 16V 20%

Part	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Mounting Type	Package / Case	Lifetime @ Temp.	Impedance	Tolerance	Ripple Current @ Low Frequency	Applications	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UPS1C100MDD1TD	10 µF	0.492 in	12.5 mm	16 V	0.197 in	5 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	2000 Hrs	1.5 Ohms	20 %	27.2 mA	General Purpose	160 mA	2.5 mm	0.098 in
Nichicon UPS0J681MPD1TD	680 µF	14 mm		6.3 VDC	0.394 in	10 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	2000 Hrs	190 mOhms	20 %	426 mA	General Purpose	600 mA	5 mm	0.197 "	0.551 in
Nichicon UPS1J681MHD	680 µF	27 mm		63 V	0.63 in	16 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	3000 Hrs	58 mOhms	20 %	923 mA	General Purpose		7.5 mm	0.295 in	1.063 in
Nichicon UPS1H102MHD1TN	1000 µF	27 mm		50 VDC	0.63 in	16 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	3000 Hrs	58 mOhms	20 %	1.392 A	General Purpose	1.6 A	7.5 mm	0.295 in	1.063 in
Nichicon UPS1A152MPD	1.5 mF			10 V	0.394 in	10 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	2000 Hrs	110 mOhms	20 %	870 mA	General Purpose	1 A	5 mm	0.197 "		0.866 in	22 mm
Nichicon UPS1A682MHD	6800 µF			10 V	0.63 in	16 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	3000 Hrs	33 mOhms	20 %		General Purpose	2.35 A	7.5 mm	0.295 in				1.319 in	33.5 mm
Nichicon UPS1A101MDD	100 µF	0.492 in	12.5 mm	10 V	0.197 in	5 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	2000 Hrs	1.5 Ohms	20 %	80 mA	General Purpose	160 mA	2 mm	0.079 in
Nichicon UPS1H221MPD1TD	220 µF			50 VDC	0.394 in	10 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	2000 Hrs	180 mOhms	20 %	325 mA	General Purpose	650 mA	5 mm	0.197 "						17.5 mm	0.689 in
Nichicon UPS1H331MPD1TD	330 µF			50 VDC	0.394 in	10 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	2000 Hrs	150 mOhms	20 %	575.1 mA	General Purpose	810 mA	5 mm	0.197 "		0.866 in	22 mm
Nichicon UPS1A472MHD	4700 µF	27 mm		10 V	0.63 in	16 mm	-55 C	105 ░C	Polar	Through Hole	Can Radial	3000 Hrs	38 mOhms	20 %	1.653 A	General Purpose		7.5 mm	0.295 in	1.063 in
