C2516 Series
Manufacturer: Prysmian Group
Beta
⌘K

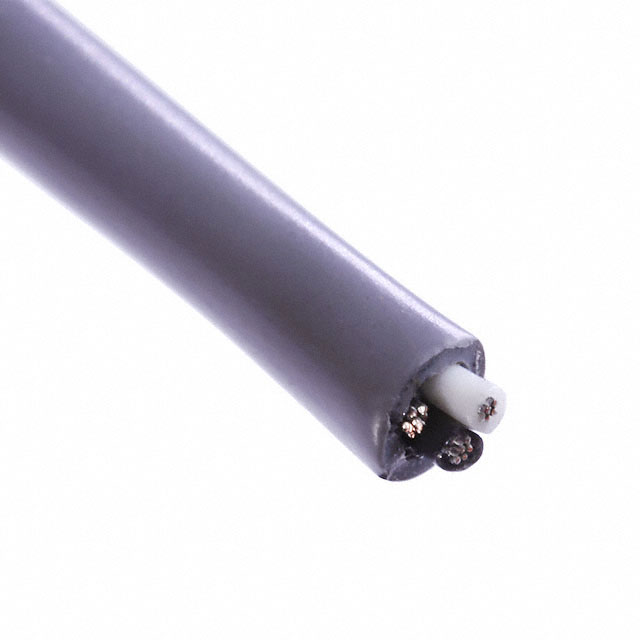

CABLE 2COND 22AWG GRAY SHLD 500'
| Part | Shield Coverage | Shield Material | Number of Conductors | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Wire Gauge | Voltage | Jacket (Insulation) Material | Conductor Insulation | Features | Cable Type | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 100 % | Flexfoil® | 2 | Copper Tinned | 0.137 " | 3.48 mm | Communication Control | 22 AWG | 300 VDC | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | Drain Wire | Multi-Conductor | Foil | 0.02 " | 0.508 mm | 30 AWG | 7 | Gray | 152.4 m | 500 ft | ||
 Prysmian Group | 2 | Copper Tinned | 0.137 " | 3.48 mm | Communication Control | 22 AWG | 300 VDC | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | Drain Wire | Multi-Conductor | Foil | 0.02 " | 0.508 mm | 30 AWG | 7 | Gray | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 100 ft | 30.5 m | ||
 Prysmian Group | 2 | Copper Tinned | 0.137 " | 3.48 mm | Communication Control | 22 AWG | 300 VDC | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | Drain Wire | Multi-Conductor | Foil | 0.02 " | 0.508 mm | 30 AWG | 7 | Black | 304.8 m | 1000 ft | ||||
Prysmian Group | 100 % | Flexfoil® | 2 | Copper Tinned | 0.137 " | 3.48 mm | Communication Control | 22 AWG | 300 VDC | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | Drain Wire | Multi-Conductor | Foil | 0.02 " | 0.508 mm | 30 AWG | 7 | Gray | 15.24 m 304.8 m | 50 ft 1000 ft | 100 ft | 30.5 m |
Prysmian Group | 100 % | Flexfoil® | 2 | Copper Tinned | 0.137 " | 3.48 mm | Communication Control | 22 AWG | 300 VDC | Poly-Vinyl Chloride (PVC) | Polypropylene (PP) | Drain Wire | Multi-Conductor | Foil | 0.02 " | 0.508 mm | 30 AWG | 7 | Black | 304.8 m | 1000 ft |
