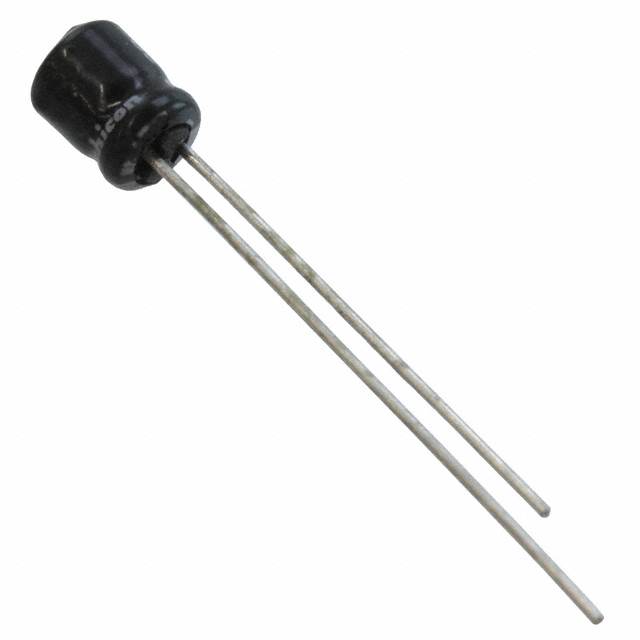

UMA Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 4VOLTS 33UF 4X5 20% 1.5LS
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Polarization | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Lifetime @ Temp. | Height - Seated (Max) | Height - Seated (Max) [Max] | Mounting Type | Applications | Lead Spacing | Lead Spacing | Voltage - Rated | Ripple Current @ Low Frequency | Capacitance | Tolerance | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 4 mm | 0.157 in | Polar | 85 °C | -40 C | Can Radial | 2000 Hrs | 6 mm | 0.236 " | Through Hole | General Purpose | 0.059 in | 1.5 mm | 4 V | 28 mA | 33 ÁF | 20 % | |

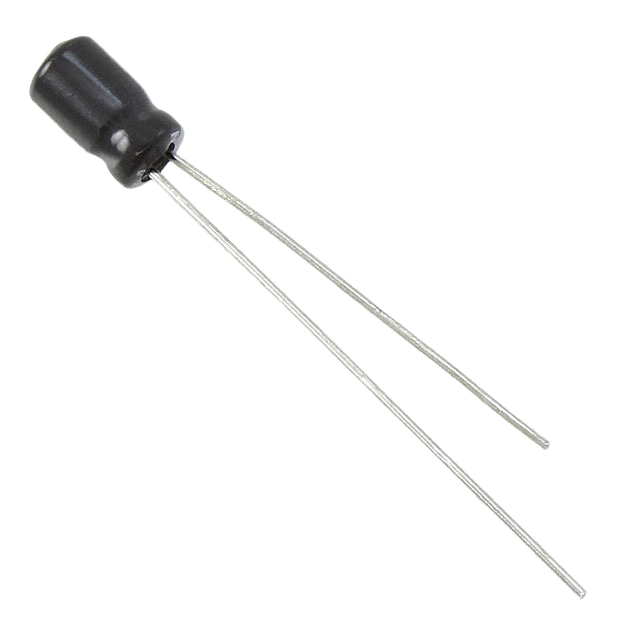

 Nichicon | 3 mm | 0.118 in | Polar | 85 °C | -40 C | Can Radial | 2000 Hrs | 6 mm | 0.236 " | Through Hole | General Purpose | 0.039 " | 1 mm | 35 V | 8.4 mA | 2.2 µF | 20 % | 12.6 mA |
Nichicon | 4 mm | 0.157 in | Polar | 85 °C | -40 C | Can Radial | 2000 Hrs | 6 mm | 0.236 " | Through Hole | General Purpose | 0.059 in | 1.5 mm | 35 V | 15 mA | 3.3 µF | 20 % | 22.5 mA |
