HSP051-4N10 Series

4-line ESD protection for high speed lines

Catalog

4-line ESD protection for high speed lines

Part	Applications	Package / Case	Capacitance @ Frequency	Voltage - Breakdown (Min) [Min]	Power Line Protection	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Unidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]

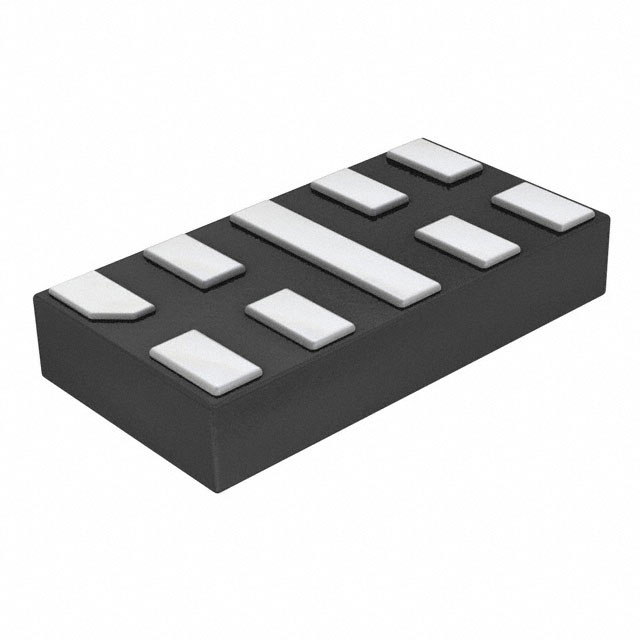

STMicroelectronics HSP051-4N10	HDMI	10-XFDFN	0.4 pF	4.5 V		3.6 V	10 V	Steering (Rail to Rail)	1.9	1	10-UQFN	4	1 A	Surface Mount	-40 °C	150 °C

Catalog

4-line ESD protection for high speed lines

Description

The HSP051-4N10 is a 4-channel ESD array with a rail to rail architecture designed specifically for the protection of high speed differential lines. The ultralow variation of the capacitance ensures very low influence on signal-skew. The large bandwidth makes it compatible with HDMI 2.0 4K/2K (= 5.94 Gbps) and USB 3.1 (= 10 Gbps) The device is packaged in μQFN 1.9 mm x 1 mm with a 400 μm pitch.
