144 Series

Catalog

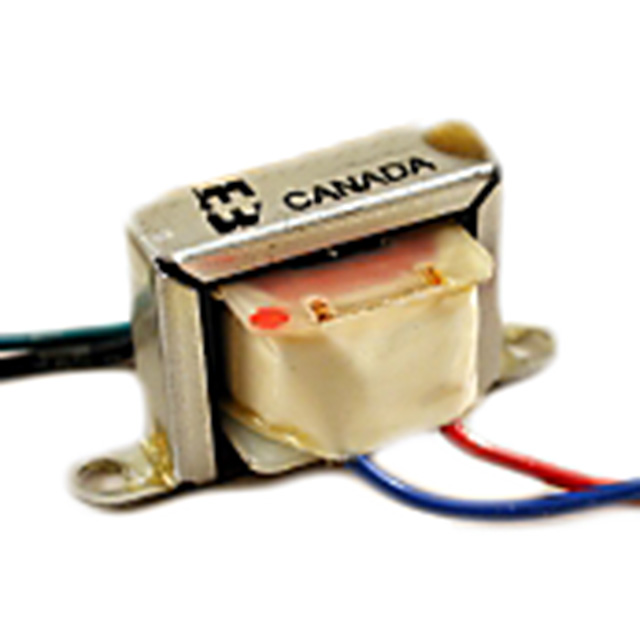

AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS AUDIO TRANSFORMER, CHASSIS MOUNT, OUTPUT, 10000:3.2 OHMS

Part	Weight	Weight	Frequency Range [Max]	Frequency Range [Min]	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Transformer Type	DC Resistance (DCR) - Primary	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance - Primary (Ohms)	Frequency Response	Power Level	Mounting Type	DC Resistance (DCR) - Secondary	Impedance - Secondary (Ohms)
Hammond Manufacturing 144P	14.06 g	0.031 lb	15 kHz	150 Hz	Wire Leads	1 in	17.53 mm	25.4 mm	0.69 "	Economical Open Type	575 Ohm	0.69 "	17.53 mm	10 kOhms	1 dB	50 mW	Chassis Mount	500 mOhm	3.2 Ohms
