HV MLCC X7R Series

Catalog

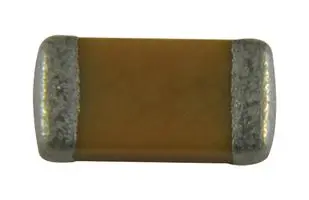

SMD MULTILAYER CERAMIC CAPACITOR, HIGH VOLTAGE, 330 PF, 2 KV, 1206 [3216 METRIC], ± 10%, X7R

...

Part	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Features	Package / Case	Mounting Type	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thickness (Max)	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]
KYOCERA AVX 1206GC331KAT1A	X7R	2000 V	2 kV	General Purpose	-55 C	125 °C	330 pF	High Voltage	1206 (3216 Metric)	MLCC Surface Mount	10 %	1.8 mm	0.071 in	1.6 mm	0.063 "	0.13 "	3.3 mm
KYOCERA AVX 1812GC822KAT1A	X7R	2000 V	2 kV	General Purpose	-55 C	125 °C		High Voltage	1812 (4532 Metric)	MLCC Surface Mount	10 %	2.8 mm	0.11 in	3.2 mm	0.126 in	0.181 in	4.6 mm
KYOCERA AVX 1812CC683KAT2A	X7R	630 V		General Purpose	-55 C	125 °C	0.068 µF	High Voltage	1812 (4532 Metric)	MLCC Surface Mount	10 %		0.087 "	3.2 mm	0.126 in	0.181 in	4.6 mm	2.21 mm
KYOCERA AVX 1206CC153KAT1A	X7R	630 V		General Purpose	-55 C	125 °C	15000 pF	High Voltage	1206 (3216 Metric)	MLCC Surface Mount	10 %	1.8 mm	0.071 in	1.6 mm	0.063 "	0.13 "	3.3 mm
KYOCERA AVX 1210GC102KAT2A	X7R	2000 V	2 kV	General Purpose	-55 C	125 °C	0.001 µF	High Voltage	1210	MLCC Surface Mount	10 %	1.8 mm	0.071 in	2.5 mm	0.098 in	0.13 "	3.3 mm		3225 Metric
KYOCERA AVX 1808HC681MAT1A	X7R	3000 V	3 kV	General Purpose	-55 C	125 °C	680 pF		1808 (4520 Metric)	MLCC Surface Mount	20 %			2 mm	0.079 in	0.181 in	4.6 mm
KYOCERA AVX 1825SC103KAT1A	X7R	1500 V	1.5 kV	General Purpose	-55 C	125 °C	10000 pF	High Voltage	1825	MLCC Surface Mount	10 %		0.1 in	0.252 in			0.177 in	2.54 mm	4564 Metric	4.5 mm	6.4 mm
KYOCERA AVX 1210CC393KAT1A	X7R	630 V		General Purpose	-55 C	125 °C	0.039 µF	High Voltage	1210	MLCC Surface Mount	10 %	1.8 mm	0.071 in	2.5 mm	0.098 in	0.13 "	3.3 mm		3225 Metric
KYOCERA AVX 1808SC122KAT1A	X7R	1500 V	1.5 kV	General Purpose	-55 C	125 °C	1200 pF	High Voltage	1808 (4520 Metric)	MLCC Surface Mount	10 %	1.8 mm	0.071 in	2 mm	0.079 in	0.181 in	4.6 mm
KYOCERA AVX 1210SC272KAT1A	X7R	1500 V	1.5 kV	General Purpose	-55 C	125 °C	2700 pF	High Voltage	1210	MLCC Surface Mount	10 %			2.5 mm	0.098 in	0.13 "	3.3 mm		3225 Metric			0.087 in	2.2 mm
