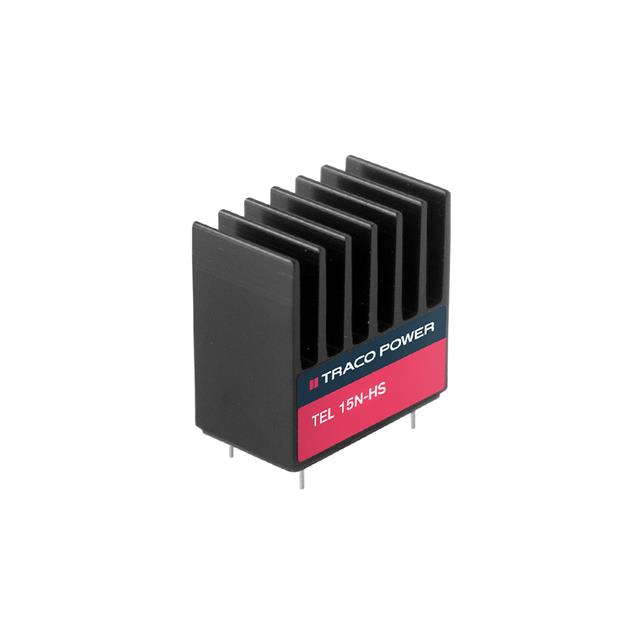

TEL 15N-HS Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15W 9-18VIN 24V 625MA COMPACT DIP-16 METAL CASE WITH BUILT IN HEATSINK
| Part | Voltage - Isolation | Voltage - Output 1 | Power (Watts) | Efficiency | Approval Agency | Type | Voltage - Input (Max) [Max] | Number of Outputs | Applications | Package / Case | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Standard Number | Mounting Type | Voltage - Output 2 | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 1800 V | 24 V | 15 W | 87 % | CB cURus | Isolated Module | 18 V | 1 | ITE (Commercial) | 16-DIP Module 5 Leads | 9 V | 625 mA | 70 °C | -40 C | Baseplate | 0.96 in | 24.4 mm | 14.3 mm | 0.56 " | 24.4 mm | 0.96 " | 62368-1 | Through Hole | ||
 Traco Power | 1800 V | 12 V | 15 W | 87 % | CB cURus | Isolated Module | 75 V | 2 | ITE (Commercial) | 16-DIP Module 5 Leads | 36 V | 625 mA | 70 °C | -40 C | Baseplate | 0.96 in | 24.4 mm | 14.3 mm | 0.56 " | 24.4 mm | 0.96 " | 62368-1 | Through Hole | -12 V | 625 mA |
