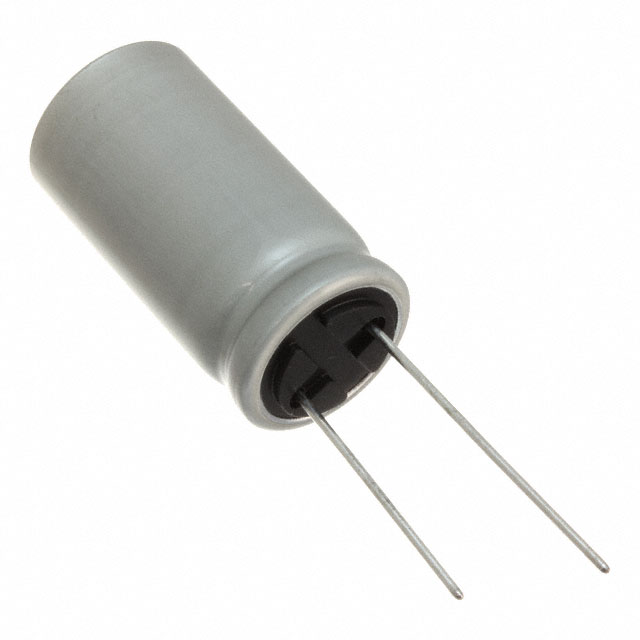

UBY Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 2000UF 20% 25V AEC-Q200

Part	Lead Spacing	Lead Spacing	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Package / Case	Voltage - Rated	Mounting Type	ESR (Equivalent Series Resistance)	Ratings	Polarization	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]
Nichicon UBY1E202MHL	0.197 "	5 mm	Automotive	0.492 in	12.5 mm	-40 C	135 °C	2 mF	0.846 "	21.5 mm	20 %	1.656 A	2.76 A	Can Radial	25 VDC	Through Hole	42 mOhm	AEC-Q200	Polar	3000 Hrs

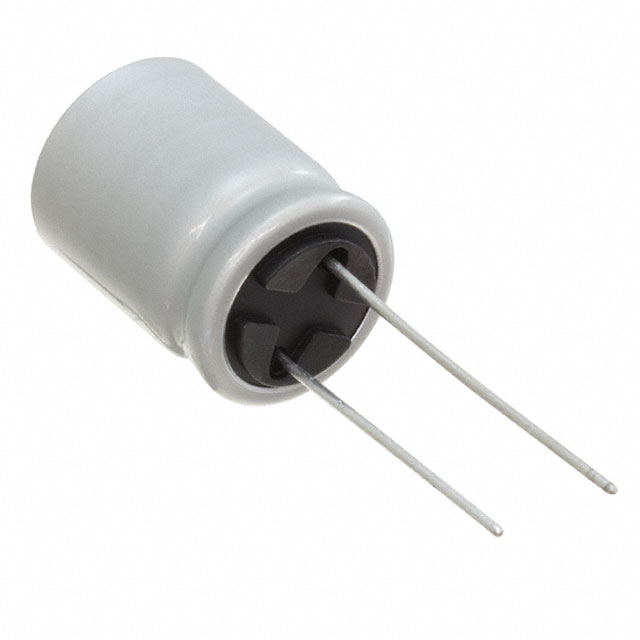

Nichicon UBY2A271MHL1TN	0.295 in	7.5 mm	Automotive	0.63 in	16 mm	-40 C	135 °C	270 µF	0.846 "	21.5 mm	20 %	1.07 A	2.14 A	Can Radial	100 V	Through Hole	53 mOhm		Polar	3000 Hrs
Nichicon UBY1E472MHL1TN	0.295 in	7.5 mm	Automotive	0.63 in	16 mm	-40 C	135 °C	4700 µF			20 %	3.621 A	4.26 A	Can Radial	25 VDC	Through Hole	26 mOhm		Polar	3000 Hrs	26.5 mm	1.043 in
Nichicon UBY1H182MHL	0.295 in	7.5 mm	Automotive	0.63 in	16 mm	-40 C	135 °C	1800 µF			20 %		3.96 A	Can Radial	50 VDC	Through Hole		AEC-Q200	Polar	3000 Hrs	1.299 in		33 mm
Nichicon UBY1H242MHL	0.295 in	7.5 mm	Automotive	0.709 in	18 mm	-40 C	135 °C	2.4 mF			20 %	2.265 A	3.02 A	Can Radial	50 VDC	Through Hole	28 mOhm	AEC-Q200	Polar	3000 Hrs	1.299 in		33 mm
Nichicon UBY1K391MHL	0.197 "	5 mm	Automotive	0.492 in	12.5 mm	-40 C	135 °C	390 µF			20 %		2.52 A	Can Radial	80 V	Through Hole	54 mOhm	AEC-Q200	Polar	3000 Hrs	26.5 mm	1.043 in

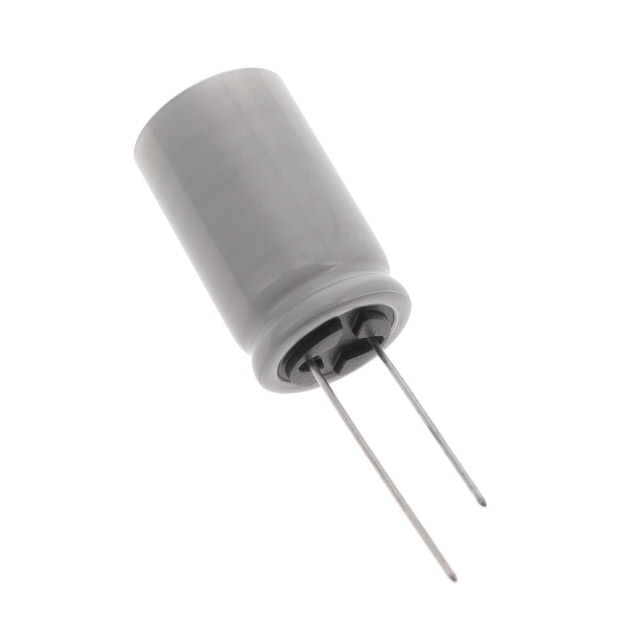

Nichicon UBY2A681MHL	0.295 in	7.5 mm	Automotive	0.709 in	18 mm	-40 C	135 °C	680 µF			20 %	2.448 A	4.08 A	Can Radial	100 V	Through Hole	28 mOhm	AEC-Q200	Polar	3000 Hrs	1.299 in		33 mm
Nichicon UBY2A361MHL6TN	0.295 in	7.5 mm	Automotive	0.709 in	18 mm	-40 C	135 °C	360 µF	0.846 "	21.5 mm	20 %	1.175 A	2.35 A	Can Radial	100 V	Through Hole	48 mOhm		Polar	3000 Hrs

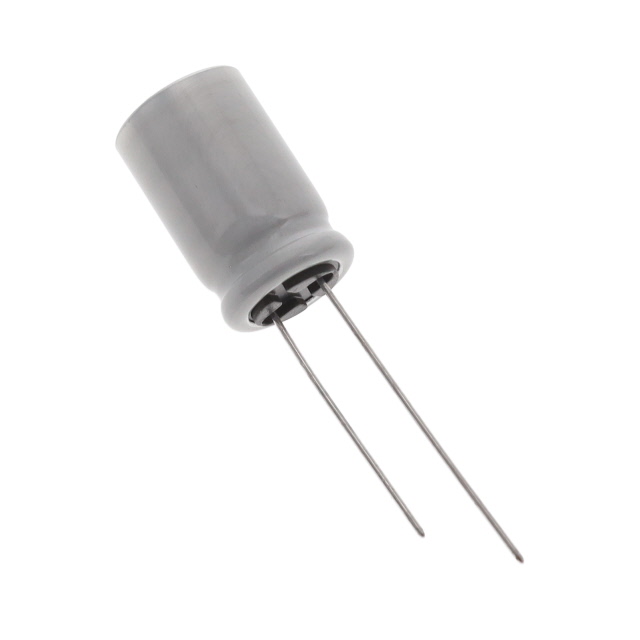

Nichicon UBY1K271MHL	0.197 "	5 mm	Automotive	0.492 in	12.5 mm	-40 C	135 °C	270 µF	0.846 "	21.5 mm	20 %	820 mA	1.64 A	Can Radial	80 V	Through Hole	74 mOhm	AEC-Q200	Polar	3000 Hrs
Nichicon UBY1E202MHL1TO	0.197 "	5 mm	Automotive	0.492 in	12.5 mm	-40 C	135 °C	2 mF	0.846 "	21.5 mm	20 %	1.656 A	2.76 A	Can Radial	25 VDC	Through Hole	42 mOhm		Polar	3000 Hrs
