PCM Series

Manufacturer: Nichicon

Catalog

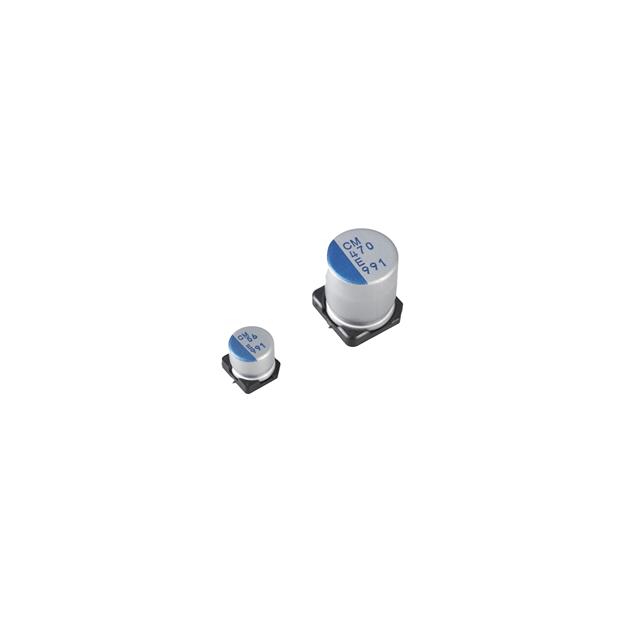

ALUMINUM ORGANIC POLYMER CAPACITORS 50VDC 120UF 20% POLYMER HIGH VOLTAGE TYPE AEC-Q200

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Voltage - Rated	Tolerance	Capacitance	Ripple Current @ Low Frequency	Applications	ESR (Equivalent Series Resistance)	Type	Mounting Type	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon PCM1H121MCL2GS	-55 C	125 °C	Radial Can - SMD	0.315 in	8 mm	8000 Hrs	AEC-Q200	12.4 mm	0.488 in	8.3 mm	8.3 mm	0.327 in	0.327 in	50 VDC	20 %	120 µF	125 mA	Automotive	25 mOhm	Polymer	Surface Mount	2.5 A
Nichicon PCM1C471MCL1GS	-55 C	125 °C	Radial Can - SMD	0.394 in	10 mm	8000 Hrs	AEC-Q200			10.3 mm	10.3 mm	0.406 "	0.406 in	16 V	20 %	470 µF	95 mA	Automotive	22 mOhms	Polymer	Surface Mount		0.335 "	8.5 mm
Nichicon PCM1C221MCL4GS	-55 C	125 °C	Radial Can - SMD	0.248 "	6.3 mm	6000 Hrs	AEC-Q200			6.6 mm	6.6 mm	0.26 in	0.26 in	16 V	20 %	220 µF	85 mA	Automotive	23 mOhm	Polymer	Surface Mount	1.7 A	0.335 "	8.5 mm
Nichicon PCM1J220MCL1GS	-55 C	125 °C	Radial Can - SMD	0.315 in	8 mm	8000 Hrs	AEC-Q200		0.295 in	8.3 mm	8.3 mm	0.327 in	0.327 in	63 V	20 %	22 µF	80 mA	Automotive	48 mOhm	Polymer	Surface Mount	1.6 A		7.5 mm
Nichicon PCM1H390MCL1GS	-55 C	125 °C	Radial Can - SMD	0.315 in	8 mm	8000 Hrs	AEC-Q200		0.295 in	8.3 mm	8.3 mm	0.327 in	0.327 in	50 VDC	20 %	39 µF	80 mA	Automotive	45 mOhm	Polymer	Surface Mount	1.6 A		7.5 mm
