EVLPOWERSTEP01 Series

System-in-package integrating microstepping controller and 10 A power MOSFETs evaluation board

Catalog

System-in-package integrating microstepping controller and 10 A power MOSFETs evaluation board

Part	Utilized IC / Part	Secondary Attributes	Type	Contents
STMicroelectronics EVLPOWERSTEP01	powerSTEP01	Graphical User Interface (GUI)	Power Management	Board(s)

Catalog

System-in-package integrating microstepping controller and 10 A power MOSFETs evaluation board

Description

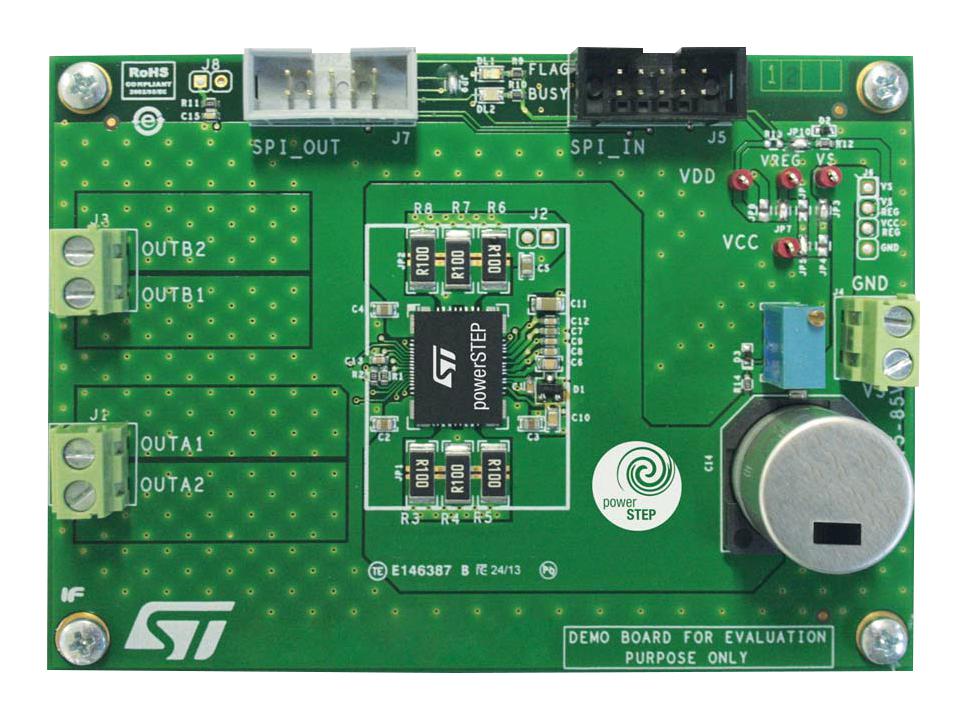

The EVLPOWERSTEP01 demonstration board is a microstepping motor driver delivering up to 10 Ar.m.s.. In combination with the STEVAL-PCC009V2 communication board and the evaluation software, the board allows the user to investigate all the features of the powerSTEP01. In particular, the board can be used to check the performance and to regulate the parameters in order to fit the application requirements. The EVLPOWERSTEP01 supports the daisy chain configuration making it suitable for the evaluation of the powerSTEP01 in multi motor applications.
