QXK Series

Manufacturer: Nichicon

Catalog

CAP FILM 0.33UF 5% 250VDC RADIAL

Part	Tolerance	Package / Case	Termination	Applications	Voltage Rating - AC	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Capacitance	Lead Spacing	Lead Spacing	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Dielectric Material	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]
Nichicon QXK2E334JTP	5 %	Radial	PC Pins	General Purpose	125 V	Through Hole	13.4 mm	0.528 "	0.33 µF	0.394 in	10 mm	250 V	-40 C	105 ░C	0.264 in 6.7 mm	0.531 in 13.5 mm	Polyester Metallized
Nichicon QXK2G683JTP	5 %	Radial	PC Pins	General Purpose	200 V	Through Hole			0.068 µF	0.394 in	10 mm	400 V	-40 C	105 ░C		13.5 mm	Polyester Metallized	11.5 mm	0.453 in	5.4 mm	0.213 "	0.531 in
Nichicon QXK2E685JTP	5 %	Radial	PC Pins	General Purpose	125 V	Through Hole		0.898 in	6.8 µF	1.083 in	27.5 mm	250 V	-40 C	105 ░C	12.7 mm	30.5 mm	Polyester Metallized		22.8 mm				1.201 "	0.5 "
Nichicon QXK2G224KTPT
Nichicon QXK2E684KTP7FM	10 %	Radial	PC Pins	General Purpose	125 V	Through Hole			0.68 µF	0.591 in	15 mm	250 V	-40 C	105 ░C	6 mm	18.5 mm	Polyester Metallized				0.236 "	0.728 in			0.78 in	19.8 mm
Nichicon QXK2E684JTP	5 %	Radial	PC Pins	General Purpose	125 V	Through Hole			0.68 µF	0.591 in	15 mm	250 V	-40 C	105 ░C	6 mm	18.5 mm	Polyester Metallized				0.236 "	0.728 in			0.622 "	15.8 mm
Nichicon QXK2G473KTP	10 %	Radial	PC Pins	General Purpose	200 V	Through Hole		0.425 in		0.394 in	10 mm	400 V	-40 C	105 ░C	0.185 in	0.531 in	Polyester Metallized		10.8 mm	4.7 mm							13.5 mm
Nichicon QXK2J104JTP	5 %	Radial	PC Pins	General Purpose	250 V	Through Hole	14.7 mm	0.579 "	100000 pF	0.591 in	15 mm		-40 C	105 ░C		18.5 mm	Polyester Metallized			6.4 mm	0.252 in	0.728 in

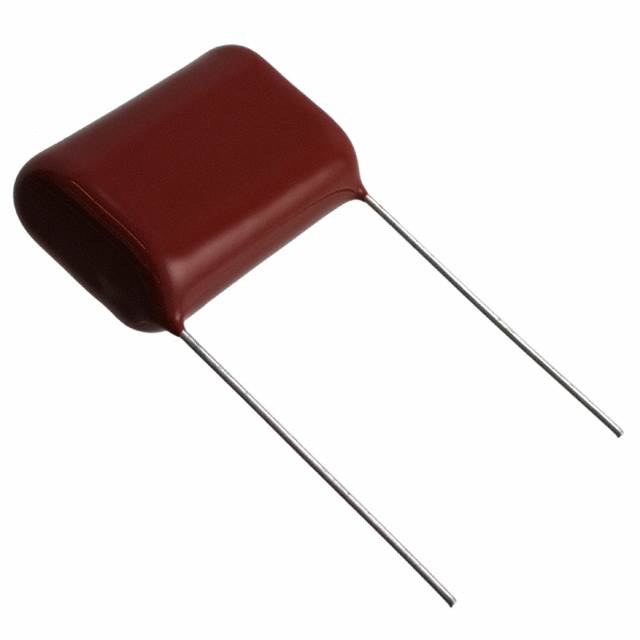

Nichicon QXK2E685KTP	10 %	Radial	PC Pins	General Purpose	125 V	Through Hole		0.898 in	6.8 µF	1.083 in	27.5 mm	250 V	-40 C	105 ░C	12.7 mm	30.5 mm	Polyester Metallized		22.8 mm				1.201 "	0.5 "
