NTMFS0D5N04XL Series

Power MOSFET, Single, N-Channel, 40V, 0.49mΩ, 455A, SO8-FL 5x6

Catalog

Power MOSFET, Single, N-Channel, 40V, 0.49mΩ, 455A, SO8-FL 5x6

Part	Rds On (Max) @ Id, Vgs	FET Type	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Supplier Device Package	Package / Case	Technology	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C

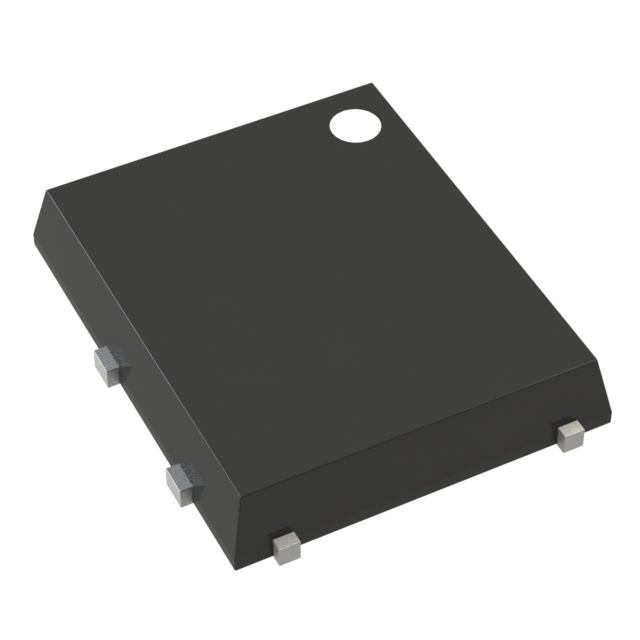

ON Semiconductor NTMFS0D5N04XLT1G	0.49 mOhm	N-Channel	40 V	2.2 V	8-DFN (5x6)	8-PowerTDFN	MOSFET (Metal Oxide)	9444 pF	Surface Mount	127 nC	4.5 V 10 V	20 V	-55 °C	175 ░C	455 A

Catalog

Power MOSFET, Single, N-Channel, 40V, 0.49mΩ, 455A, SO8-FL 5x6

Key Features

• Latest 40V Logic Gate Level Power MOSFET Technology.

• Lowest On-Resistance in 5x6 package.

• Less Peak Reverse Recovery Current with Good Softness Performance.

• Lower Output Charge by Smaller Output Capacitance.

Description

The latest 40V logic gate level power MOSFET technology with best-in-class Figure-of-Merit for switching application. Lower on-resistance and less ouput capacitance can reduce the conduction and switching loss to accomplish higher efficiency requirement. Smaller peak reverse recovery current with good softness behavior can perform lower voltage spike with better EMI performance.
