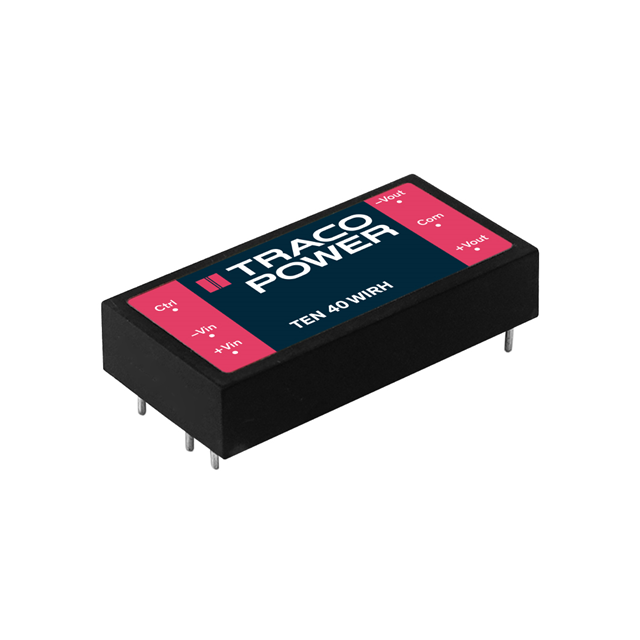

TEN 40WIRH Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 40W DC/DC CONVERTER ISOLATED, REGULATED IN A PCB MOUNT PLASTIC CASE

Part	Package / Case	Applications	Standard Number	Features	Type	Size / Dimension	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Efficiency	Number of Outputs	Approval Agency	Voltage - Output 2	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max) [Max]
Traco Power TEN 40-11023WIRH	6-DIP Module	ITE (Commercial) Railway	62368-1	Adjustable Output Remote On/Off	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	Through Hole	160 V	3000 V	1.333 A	1.333 A	89 %	2	CB cURus	-15 V	15 V	70 °C	-40 C	41 W
Traco Power TEN 40-11012WIRH	6-DIP Module	ITE (Commercial) Railway	62368-1	Adjustable Output Remote On/Off	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	36 V	Through Hole	160 V	3000 V			89 %	1	CB cURus		12 V	70 °C	-40 C	41 W	3.33 A
