SG1825C Series
Current Mode PWMs Isolated Switching Regulators - Current Mode PWM, 1.5Mhz
Manufacturer: Microchip Technology
Catalog
Current Mode PWMs Isolated Switching Regulators - Current Mode PWM, 1.5Mhz
Key Features
• * Improved Reference Initial Tolerance (±1% max.)
• * Improved Oscillator Initial Accuracy (±3% typ.)
• * Improved Startup Current (500µA typ.)- Propagation Delay to Outputs (50ns typ.)
• * 10V to 30V Operation
• * 5.1V Reference Trimmed to ±1%
• * 2MHz Oscillator Capability
• * 1.5A Peak Totem-Pole Drivers
• * U.V. Lockout with Hysteresis
• * No Output Driver "FLOAT"
• * Programmable Softstart
• * Double-Pulse Suppression Logic
• * Wideband Low-Impedance Error Amplifier
• * Current-Mode or Voltage-Mode Control
Description
AI
The SG1825C is a high-performance pulse width modulator optimized for high frequency current-mode power supplies. Included in the controller are a precision voltage reference, micro power start-up circuitry, soft-start, high frequency oscillator, wideband error amplifier, fast current limit comparator, full double-pulse suppression logic, and dual totem pole output drivers. Innovative circuit design and an advanced linear Schottky process result in very short propagation
delays through the current limit comparator, logic, and output drivers. This device can be used to implement either current mode or voltage mode switching power supplies. It also is useful as a series-resonant controller to frequencies beyond 1MHz. The SG1825C is specified for operation over the full military ambient temperature range of -55°C to 125°C.
**Microchip Ordering Part** [**Standard Microcircuit Drawing (SMD)**](https://ww1.microchip.com/downloads/en/DeviceDoc/00003952.pdf)

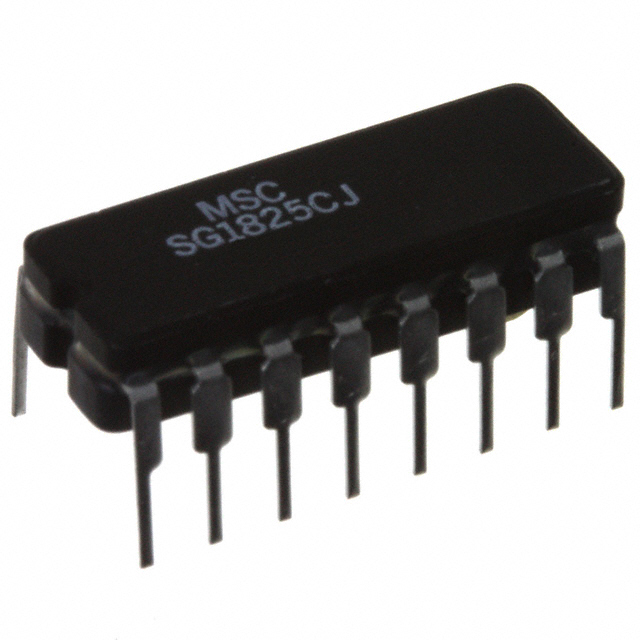

SG1825CJ-DESC Cross Reference 5962-8768101EA
SG1825CJ-DESC Cross Reference 5962-8768101EX
